Braking System

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF2814-TRW
Price: 16200.00 PHP
Availability: InStock

Part No. DF2814 · SKU DF2814-TRW

Front Axle

₱16,200.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

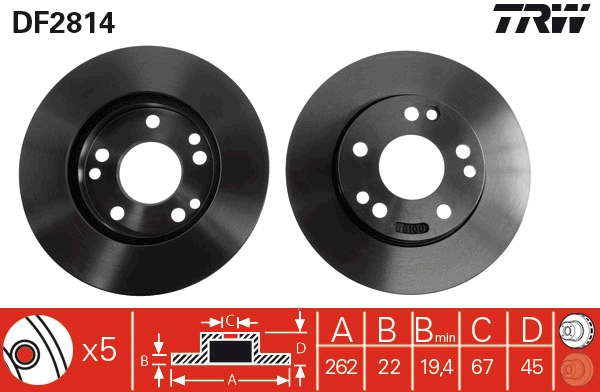

Specifications

Bolt Hole Circle Ø (mm)	112
Brake Disc Thickness (mm)	22
Brake Disc Type Vented
Centering Diameter (mm)	67
Colour black
Height (mm)	45
Minimum thickness (mm)	19.4
Number of Holes 5
Outer Diameter (mm)	262
Surface Painted
Test Mark E1 90R-02 C0176/0529
Thread Size 15

Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 67, Colour black, Height [mm] 45, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 262, Surface Painted, Test Mark E1 90R-02 C0176/0529, Thread Size 15
Fits: MERCEDES-BENZ

Supplier Cross-References

DELPHIBG2397 FERODODDF191 ATE24012201241 JURID561389J BREMBO9729120 TRWDF2814

Interchangeable Part Numbers

A.B.S.09.7291.20 A.B.S.15816 A.P.24696 ACDelcoAC2054D APECDSK552 ATE24112201241 BENDIX561389B BENDIX561389BC BORG & BECKBBD4871 BOSCH0 986 478 330 BOSCH986478330 BRADI1.2815.2.E BRADI1281524 BREMBO09.7291.10 CAR142451 CARHPD451 DBA AustraliaDBA279 DELPHIBS3597 DONPCD15272 FEBI BILSTEIN09464 FERODODDF1911 FIRST LINEFBD291 FTE9072082 HELLA8DD 355 101-461 JURID561389JC LEMFÖRDER11070 01 LEMFÖRDER11070 03 LPRM2201V MAGNETI MARELLI353612815240 MAGNETI MARELLI431602041430 MAPCO15780 METELLI230211 MEYLE015 521 2024 MGAD1011 MINTEXMDC495 NationalNBD233 NK203313 NK313313 OBTEC A/S232304V OPTIMALBS-2280C OPTIMALBS-2280 PAGID52119 PEX140315 PILENGAV182 QH Benelux55091 QUINTON HAZELL622810 QUINTON HAZELLBDC3597 QUINTON HAZELLBSF3597 REMYRAD2371C ROULUNDS RUBBERD2054 sbs1815203313 SWAG10909464 TEXTAR92038600 TEXTAR92038605 TEXTAR98200038601 TRISCAN812023103 TRUCKTEC AUTOMOTIVE0235150 TRUSTINGDF280 VAICOV30-80018 VALEO186177 WOKINGP622810 ZIMMERMANN400141300 ZIMMERMANN400141320 ZIMMERMANN400141350 ZIMMERMANN400141352

OE Numbers — MERCEDES-BENZ

201 421 13 12 201 421 15 12 A2014211312 A2014211512

Make	Model	Type / Engine	Years	CC	kW	HP
MERCEDES-BENZ	190 (W201)	E 2.6	1982 – 1993	2597	122	166
MERCEDES-BENZ	190 (W201)	E 2.5-16 (201.035)	1982 – 1993	2498	143	194
MERCEDES-BENZ	190 (W201)	190 D (201.122)	1982 – 1993	2197	54	72
MERCEDES-BENZ	190 (W201)	2.6	1982 – 1993	2599	118	160
MERCEDES-BENZ	190 (W201)	2.3 E	1982 – 1993	2299	100	136
MERCEDES-BENZ	190 (W201)	2.3	1982 – 1993	2299	97	132
MERCEDES-BENZ	190 (W201)	E 2.0	1982 – 1993	1996	93	126
MERCEDES-BENZ	190 (W201)	E 2.6 (201.029)	1982 – 1993	2597	118	160
MERCEDES-BENZ	190 (W201)	E 2.5-16 Evolution II	1982 – 1993	2498	173	235
MERCEDES-BENZ	190 (W201)	Turbo-D 2.5 (201.128)	1982 – 1993	2497	93	126
MERCEDES-BENZ	190 (W201)	Turbo-D 2.5 (201.128)	1982 – 1993	2497	90	122
MERCEDES-BENZ	190 (W201)	D 2.5 (201.126)	1982 – 1993	2497	69	94
MERCEDES-BENZ	190 (W201)	D 2.5 (201.126)	1982 – 1993	2497	66	90
MERCEDES-BENZ	190 (W201)	D 2.0 (201.122)	1982 – 1993	1997	55	75
MERCEDES-BENZ	190 (W201)	D 2.0 (201.122)	1982 – 1993	1997	53	72
MERCEDES-BENZ	190 (W201)	E 1.8 (201.018)	1982 – 1993	1797	80	109
MERCEDES-BENZ	190 (W201)	E 2.5-16 (201.035)	1982 – 1993	2498	150	204
MERCEDES-BENZ	190 (W201)	E 2.5-16 Evolution (201.036)	1982 – 1993	2498	143	194
MERCEDES-BENZ	190 (W201)	E 2.3 (201.028)	1982 – 1993	2298	100	136
MERCEDES-BENZ	190 (W201)	E 2.3	1982 – 1993	2298	97	132
MERCEDES-BENZ	190 (W201)	E 2.3-16 (201.034)	1982 – 1993	2298	136	185
MERCEDES-BENZ	190 (W201)	E 2.3-16	1982 – 1993	2298	130	177
MERCEDES-BENZ	190 (W201)	E 2.3-16	1982 – 1993	2298	125	170
MERCEDES-BENZ	190 (W201)	E 2.0 (201.024)	1982 – 1993	1996	90	122
MERCEDES-BENZ	190 (W201)	E 2.0	1982 – 1993	1996	87	118
MERCEDES-BENZ	190 (W201)	2.0 (201.023)	1982 – 1993	1996	77	105
MERCEDES-BENZ	190 (W201)	2.0 (201.023)	1982 – 1993	1996	75	102
MERCEDES-BENZ	190 (W201)	E 2.0 (201.024)	1982 – 1993	1996	85	116
MERCEDES-BENZ	190 (W201)	E 2.0 (201.024)	1982 – 1993	1996	83	113
MERCEDES-BENZ	190 (W201)	2.0 (201.022)	1982 – 1993	1996	66	90
