TRW
Braking System
Brake Disc
Part No.
DF3012
·
SKU
DF3012-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns

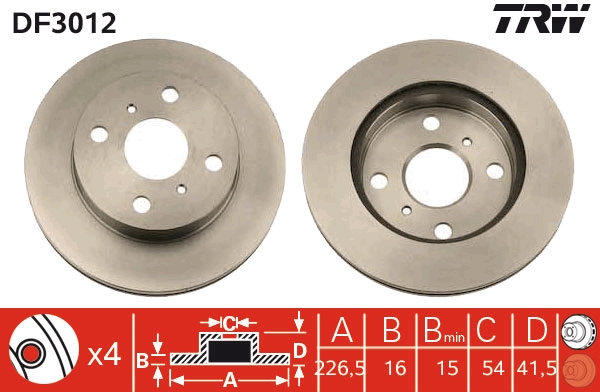

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 16 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 54 |
| Height (mm) | 42 |
| Minimum thickness (mm) | 15 |
| Number of Holes 4 |
| Outer Diameter (mm) | 226 |
| Thread Size 15 |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 16, Brake Disc Type Vented, Centering Diameter [mm] 54, Height [mm] 42, Minimum thickness [mm] 15, Number of Holes 4, Outer Diameter [mm] 226, Thread Size 15
Interchangeable Part Numbers
ABEXW0726
APECDSK195
ATE24011601021
ATE416102
BENDIX561429B
BLUE PRINTADT34359
BOSCH 0 986 478290
BOSCH0986478290
BOSCH 0 986 479U52
BOSCH0986479U52
BOSCH986478290
BRADI1.5211.2.4
BREMBO09.5693.10
DELPHIBG2586
DELPHIBG586
FERODODDF350
FERODODDF3501
FIRST LINEFBD010
FTEBS3609
GIRLING6030121
GRAFDF29290
HELLA 8DD 355102-161
HELLA8DD355102161
JURID561429J
LEMFÖRDER20364
METELLI230290
NIPPARTSJ3302044
NK204520
NK314520
OBTEC A/S333313V
PAGID53630
REMSA602610
SEBRO5635
SWAG81911892
TEXTAR92049600
TEXTAR98200049601
TRISCAN812013112
TRUSTINGDF952
ZIMMERMANN5902553
OE Numbers — TOYOTA
43512-10070
