TRW
Braking System

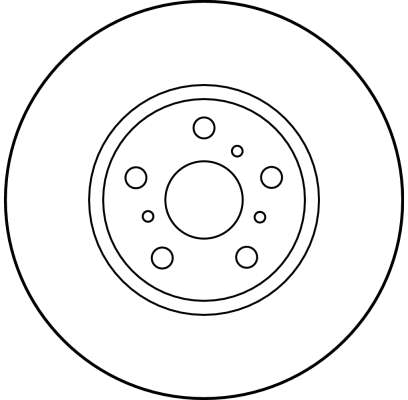

Brake Disc
Part No.
DF3093
·
SKU
DF3093-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 25 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 54 |
| Height (mm) | 46 |
| Minimum thickness (mm) | 23 |
| Number of Holes 5 |
| Outer Diameter (mm) | 277 |
| Thread Size 15 |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 54, Height [mm] 46, Minimum thickness [mm] 23, Number of Holes 5, Outer Diameter [mm] 277, Thread Size 15
Interchangeable Part Numbers
A.B.S.16279
ABEXW0818
ATE24012501441
BENDIX561744B
BOSCH0 986 AB6 048
BOSCH986478725
BOSCH F026 A05 717
BOSCHF026A05717
BRADI1.5281.2.4
Brake ENGINEERINGDI955336
BREMBO09.6806.10
DELPHIBG3168
FERODODDF500
FERODODDF502
FERODODDF5021
FIRST LINEFBD892
GRAFDF29256
HELLA8DD 355 103-951
HERTH+BUSS JAKOPARTSJ3302063
METELLI230256
MEYLE30-15 521 0039/PD
PEX140583
REMSA643910
REMSA646510
TEXTAR92069500
TEXTAR98200069501
TRISCAN812013165
TRUSTINGDF387
TRUSTINGDF445
VALEO186652
OE Numbers — TOYOTA
43512-20390
43512-20400
