Brake Disc
Braking System

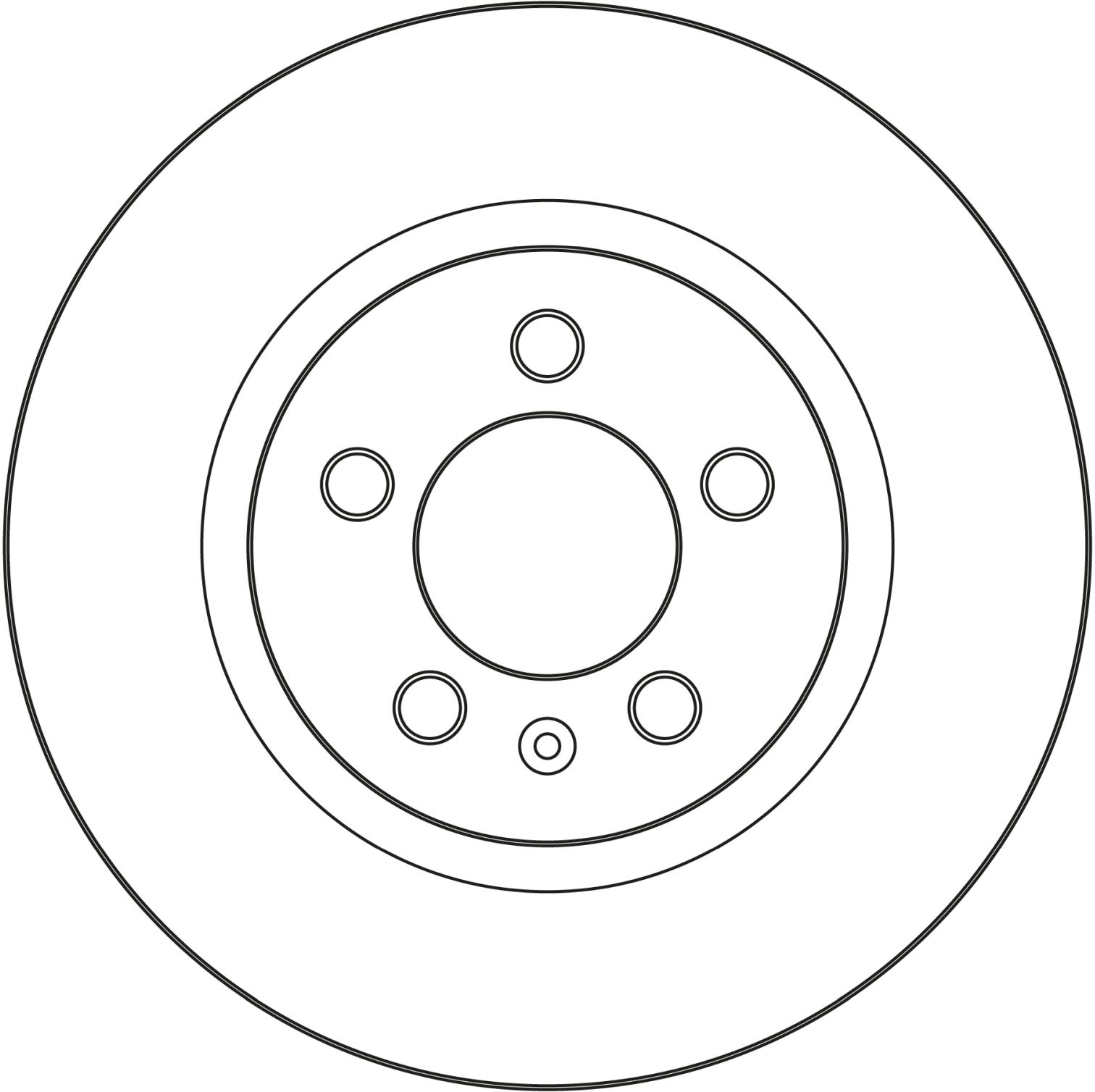

Brake Disc

Part No. DF3946 · SKU DF3946-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)65
Colour black
Height (mm)48.2
Minimum thickness (mm)8
Outer Diameter (mm)272
Rim Hole Number 5
Surface Painted
SVHC No information available, please contact the manufacturer!
Test Mark E1 90R-02 C0190/0535
Thread Size 15,6
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 65, Colour black, Height [mm] 48,2, Minimum thickness [mm] 8, Outer Diameter [mm] 272, Rim Hole Number 5, Surface Painted, SVHC No information available, please contact the manufacturer!, Test Mark E1 90R-02 C0190/0535, Thread Size 15,6
Fits: AUDI

OE Numbers — AUDI 6R0 615 601

B

OE Numbers — AUDI

6R0615601B 6R0615601

OE Numbers — AUDI 6R0 615

601
MakeModelType / Engine YearsCCkWHP
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 66 90
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 60 82
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 70 95
AUDI A1 (8X1, 8XK) 1.8 TFSI 2010 – 2019 1798 141 192
AUDI A1 (8X1, 8XK) 1.4 TDI 2010 – 2019 1422 66 90
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 85 115
AUDI A1 (8X1, 8XK) 1.4 TSI 2010 – 2019 1395 110 150
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 92 125
AUDI A1 (8X1, 8XK) S1 quattro 2010 – 2019 1984 170 231
AUDI A1 (8X1, 8XK) 2.0 TFSI quattro 2010 – 2019 1984 188 256
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 90 122
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 77 105
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 136 185
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 105 143
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 103 140
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 100 136
AUDI A1 (8X1, 8XK) 1.2 TFSI 2010 – 2019 1197 63 86
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI 2011 – 2019 1197 63 86
AUDI A1 Sportback (8XA, 8XF) 1.4 30 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 60 82
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 70 95
AUDI A1 Sportback (8XA, 8XF) 1.8 TFSI 2011 – 2019 1798 141 192
AUDI A1 Sportback (8XA, 8XF) 1.4 TDI 2011 – 2019 1422 66 90
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 85 115
AUDI A1 Sportback (8XA, 8XF) 1.4 TSI 2011 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 90 122
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 103 140
AUDI A1 Sportback (8XA, 8XF) S1 quattro 2011 – 2019 1984 170 231
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 136 185
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 66 90
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 105 143
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 77 105
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 100 136
