TRW
Braking System

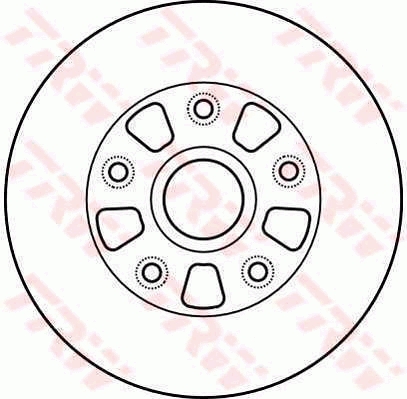

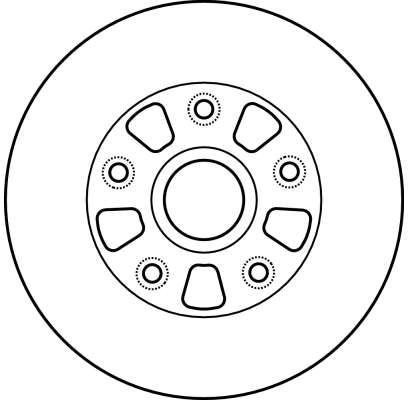

Brake Disc
Part No.
DF4009
·
SKU
DF4009-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 114 |
| Brake Disc Thickness (mm) | 22 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 53 |
| Height (mm) | 72 |
| Minimum thickness (mm) | 20 |
| Number of Holes 5 |
| Outer Diameter (mm) | 255 |
| Thread Size 13 |
Bolt Hole Circle Ø [mm] 114, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 53, Height [mm] 72, Minimum thickness [mm] 20, Number of Holes 5, Outer Diameter [mm] 255, Thread Size 13
Interchangeable Part Numbers
BENDIX561567B
BOSCH F026 A00 929
BOSCHF026A00929
BRADI1.2628.2.5
BREMBO09.6851.10
DBA AustraliaDBA659
FERODODDF652
FERODODDF6521
FERODODDF734
FERODODDF7341
JURID561567J
MEYLE35-15 521 0010/PD
NIPPARTSJ3303032
PEX140272
PEX140273
TEXTAR92079000
TEXTAR98200079001
TRISCAN812050125
TRUSTINGDF570
TRUSTINGDF571
OE Numbers — MAZDA
HE01-33-25XB
HE01-33-25XC
HE25-33-25XC
HF05-33-251A
HF13-33-251A
