TRW
Braking System

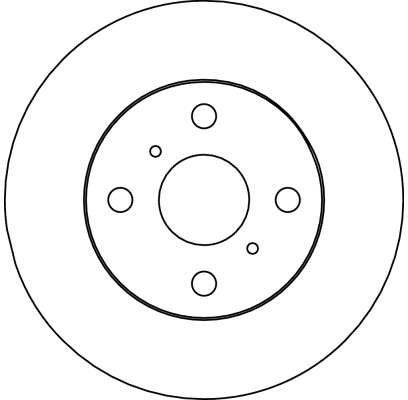

Brake Disc
Part No.
DF4014
·
SKU
DF4014-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 22 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 54 |
| Height (mm) | 46 |
| Minimum thickness (mm) | 20 |
| Number of Holes 4 |
| Outer Diameter (mm) | 238 |
| Thread Size 15 |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 54, Height [mm] 46, Minimum thickness [mm] 20, Number of Holes 4, Outer Diameter [mm] 238, Thread Size 15
Interchangeable Part Numbers
A.B.S.16230
ATE24012201731
BENDIX561743B
BRADI1.5268.2.4
BREMBO09.6896.10
FERODODDF880
FERODODDF8801
JURID561743J
MEYLE 30-15 5210037/PD
MEYLE30155210037PD
NIPPARTSJ3302042
NK204551
NK314551
OBTEC A/S333324V
PEX140573
TEXTAR92067900
TEXTAR98200067901
TRISCAN812013146
TRUSTINGDF384
OE Numbers — TOYOTA
43512-20330
