Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

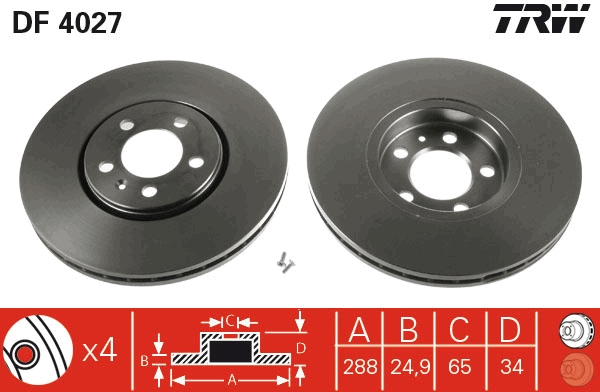

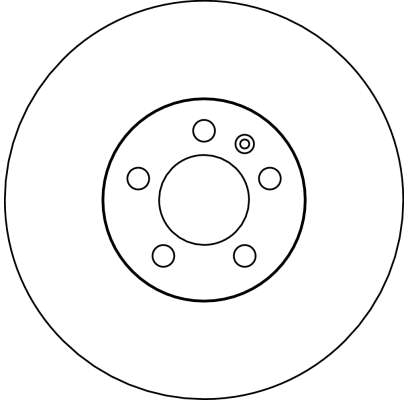

Brake Disc

Part No. DF4027 · SKU DF4027-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)65
Colour black
Height (mm)34
Machining High-carbon
Minimum thickness (mm)22
Number of Holes 5
Outer Diameter (mm)288
Surface Painted
Test Mark E190R-02C0185/0551
Thread Size 15,5
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 65, Colour black, Height [mm] 34, Machining High-carbon, Minimum thickness [mm] 22, Number of Holes 5, Outer Diameter [mm] 288, Surface Painted, Test Mark E190R-02C0185/0551, Thread Size 15,5
Fits: AUDI, SEAT, SKODA, VW, VW (SVW)

Interchangeable Part Numbers

A.B.S.16882 A.P.24847 ACDelcoAC2252D AISINT6F910S APECDSK957 ATE24012501131 ATE24032501131 ATE24112501131 BENDIX562041B BENDIX562041BC BLUE PRINTADV184309 BORG & BECKBBD4069 BORG & BECKBBD4105 BOSCH0 986 478 867 BOSCH0 986 479 914 BOSCH0 986 AB6 882 BOSCH0 986 T16 882 BOSCH0986478976 BOSCH F026 A01 320 BOSCHF026A01320 BRADI1.5830.2.4 Brake ENGINEERINGDI955637 BREMBO08716511 BREMBO09.7010.10 BREMBO09701020 BREMBO09701021 BREMBO0970102X BREMBO09701076 CAR142748 CARHPD748 DBA AustraliaDBA802 DELPHIBG3035 DELPHIBG3035C DELPHIBS4735 DELPHIBS7028 FEBI BILSTEIN19370 FEBI BILSTEIN21578 FERODODDF1221 FERODODDF12211 FERODODDF1221C FERODODDF1221C1 FERODODDF1221P-D FERODODDF1221X FERODODDF929C FERODODDF929C1 FERODODDF930 FIRST LINEFBD1001 FIRST LINEFBD1005 FIRST LINEFBD1058 FTE9071372 FTE9081314 FTE9082544 FTEBS4735B FTEBS4735HB HELLA8DD 355 105-391 HELLA8DD 355 107-601 HELLA8DD 355 107-611 HELLA8DD 355 107-612 HELLA8DD 355 123-591 HELLA8DD 355 127-581 Hi-QSD5408 INTERBRAKEAD.45.1P JURID562041J JURID562041JC LEMFÖRDER22853 02 LPRA1451V LPRA1451VR MAGNETI MARELLI353615830240 MAGNETI MARELLI353615833540 MAGNETI MARELLI431602042180 MAPCO15832 METELLI23-0365C METELLI230365 METZGERX24847 MEYLE115 521 1051/PD MEYLE115 521 1051 MEYLE1835211051PD MGAD1165 MINTEXMDC979 MINTEXMDK0214 NationalNBD875 NK204760 NK304760 NK314760 OBTEC A/S424240V OPTIMALBS-8030HC OPTIMALBS-8030 PAGID50315 PAGID50315PRO PAGID53960 PEX140637 PILENGAV157 QH Benelux57756 QUINTON HAZELLBDC4735 QUINTON HAZELLBSF4735 REMSA61860.10 REMSA654410 REMSA654700 REMYRAD1024C RUVILLEBFR371310 ST-TEMPLIN0311030200 ST-TEMPLIN0311030205 SWAG30919370 TEXTAR92082400 TEXTAR92106600 TEXTAR92106603 TEXTAR92106605 TEXTAR98200082401 TRISCAN8120291011 TRISCAN812029149 TRISCAN812029149C TRUSTINGDF468 VALEO186602 VALEO197230 WOKINGP654410 ZIMMERMANN100123520 ZIMMERMANN100123550 ZIMMERMANN100123570 ZIMMERMANN100124700 ZIMMERMANN100124750

OE Numbers — AUDI

1J0 615 301 C 1J0 615 301 K 1J0 615 301 R 1J0 615 301 S 1JO 615 301 C 6R0 615 301 A 6R0 615 301 D

OE Numbers — SEAT

1J0 615 301 JZW615301D

OE Numbers — SEAT JZW

615 301 D
MakeModelType / Engine YearsCCkWHP
AUDI A1 (8X1, 8XK) 1.8 TFSI 2010 – 2019 1798 141 192
AUDI A1 (8X1, 8XK) 1.4 TDI 2010 – 2019 1422 66 90
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 85 115
AUDI A1 (8X1, 8XK) 1.2 TFSI 2010 – 2019 1197 63 86
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 77 105
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 90 122
AUDI A1 (8X1, 8XK) 2.0 TFSI quattro 2010 – 2019 1984 188 256
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 100 136
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 103 140
AUDI A1 (8X1, 8XK) S1 quattro 2010 – 2019 1984 170 231
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 70 95
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 105 143
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 66 90
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 136 185
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 60 82
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 92 125
AUDI A1 (8X1, 8XK) 1.4 TSI 2010 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 66 90
AUDI A1 Sportback (8XA, 8XF) S1 quattro 2011 – 2019 1984 170 231
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 105 143
AUDI A1 Sportback (8XA, 8XF) 1.4 TSI 2011 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 85 115
AUDI A1 Sportback (8XA, 8XF) 1.4 TDI 2011 – 2019 1422 66 90
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 100 136
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 77 105
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 136 185
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 103 140
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 90 122
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI 2011 – 2019 1197 63 86
AUDI A1 Sportback (8XA, 8XF) 1.8 TFSI 2011 – 2019 1798 141 192
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 70 95
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 60 82
AUDI A1 Sportback (8XA, 8XF) 1.4 30 TFSI 2011 – 2019 1395 92 125
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
