TRW
Braking System

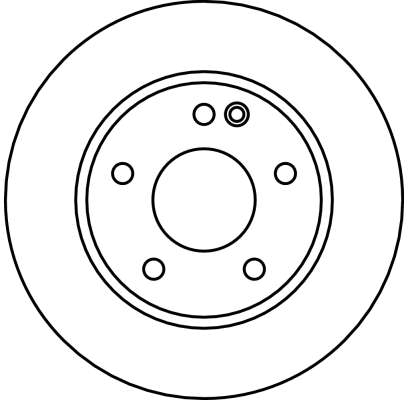

Brake Disc
Part No.
DF4034
·
SKU
DF4034-TRW
Front Axle
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 112 |
| Brake Disc Thickness (mm) | 12 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 67 |
| Colour black |
| Height (mm) | 40.4 |
| Minimum thickness (mm) | 10 |
| Number of Holes 5 |
| Outer Diameter (mm) | 260 |
| Surface Painted |
| Test Mark E190R-02C0190/0178 |
| Thread Size 13 |
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Height [mm] 40,4, Minimum thickness [mm] 10, Number of Holes 5, Outer Diameter [mm] 260, Surface Painted, Test Mark E190R-02C0190/0178, Thread Size 13
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
A.B.S.16984
A.P.15370
ACDelcoAC2391D
APECDSK800
ATE24011201441
ATE24031201441
BENDIX562048B
BENDIX562048BC
BORG & BECKBBD4109
BOSCH0 986 478 874
BRADI1.2838.1.4
Brake ENGINEERINGDI955817
BREMBO08.7358.10
BREMBO08735811
CAR142431
CARHPD431
DBA AustraliaDBA556
DELPHIBG3394
DELPHIBS4745
DONPCD11392
FEBI BILSTEIN17733
FERODODDF1034
FERODODDF10341
FERODODDF1034C
FERODODDF1034C1
FIRST LINEFBD1062
FTE9072102
FTE9082139
FTEBS4745B
GIRLING6040343
HELLA8DD 355 105-961
HELLA8DD 355 105-971
INTERBRAKEMR.58.1P
JURID562048J
JURID562048JC
LEMFÖRDER22221 01
LPRM2581P
MAGNETI MARELLI353612838140
MAGNETI MARELLI431602041010
MAPCO15808
METELLI23-0470C
METELLI230470
METZGER15370V
METZGER6110129
MEYLE015 521 2031
MEYLE0155212031PD
MGAD1270
MINTEXMDC1034
NationalNBD919
NK203345
NK313345
OBTEC A/S232324
OPTIMALBS-5260C
OPTIMALBS-5260
PAGID52154
PAGID52154HC
PAGID52154PRO
PEX140335
PILENGA5890
QH Benelux57795
QUINTON HAZELLBDC4745
QUINTON HAZELLBSF4745
REMSA652600
REMYRAD2876C
ROULUNDS RUBBERD2391
ST-TEMPLIN0311020580
ST-TEMPLIN0311020585
SWAG10917733
TEXTAR92091200
TEXTAR92091203
TEXTAR98200091201
TRISCAN812023140
TRUCKTEC AUTOMOTIVE0235136
TRUSTINGDF223
VAICOV30-40041
VALEO186562
ZIMMERMANN400360100
ZIMMERMANN400360120
ZIMMERMANN400360150
OE Numbers — MERCEDES-BENZ
168 421 01 12
168421011264
A1684210112
A168421011264
| Make | Model | Type / Engine |
Years | CC | kW | HP |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 140 (168.031, 168.131) |
1997 – 2005 |
1397 |
60 |
82 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 160 (168.033, 168.133) |
1997 – 2005 |
1598 |
75 |
102 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 160 CDI (168.007) |
1997 – 2005 |
1689 |
44 |
60 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 170 CDI (168.008) |
1997 – 2005 |
1689 |
66 |
90 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 190 (168.032, 168.132) |
1997 – 2005 |
1898 |
92 |
125 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 160 CDI (168.006) |
1997 – 2005 |
1689 |
55 |
75 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 170 CDI (168.009, 168.109) |
1997 – 2005 |
1689 |
70 |
95 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 140 (168.031, 168.131) |
1997 – 2005 |
1598 |
60 |
82 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 210 (168.035, 168.135) |
1997 – 2005 |
2084 |
103 |
140 |
| MERCEDES-BENZ |
A-CLASS (W168) |
A 38 AMG Twin Engine (168.032) |
1997 – 2005 |
1898 |
184 |
250 |
