Brake Disc

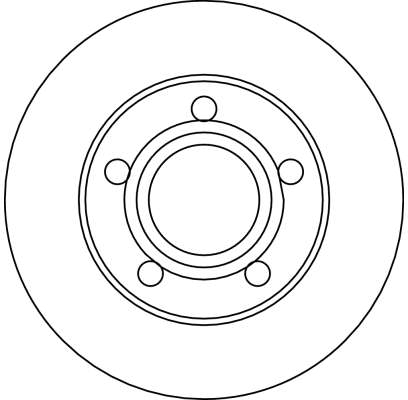

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4038 · SKU DF4038-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)68
Colour black
Height (mm)54
Minimum thickness (mm)8
Number of Holes 5
Outer Diameter (mm)245
Surface Painted
Thread Size 15,5
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 68, Colour black, Height [mm] 54, Minimum thickness [mm] 8, Number of Holes 5, Outer Diameter [mm] 245, Surface Painted, Thread Size 15,5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.08.9083.11 A.B.S.17056 A.P.14817 A.P.14817 V A.P.X14817 AKEBONOBN-0774E AKEBONOBN-0774 APECDSK2053 ATE24011002581 ATE24111002581 BENDIX562089B BENDIX562089BC BORG & BECKBBD4182 BOSCH0 986 478 461 BOSCH0 986 AB6 120 BRADI1.0128.5.4 Brake ENGINEERINGDI955826 BREMBO08908310 BREMBO08908375 CAR142754 CARHPD754 DBA AustraliaDBA2803 DELPHIBG3382 DONPCD13742 FEBI BILSTEIN43846 FERODODDF1033 FERODODDF10331 FERODODDF1033C FERODODRF1033 FIRST LINEFBD1162 FREMAXBD-2800 FTE9072657 FTEBS5182 GIRLING6040384 HELLA8DD 355 105-911 HELLA8DD 355 118-581 HELLA8DD 355 118-582 ICER78BD2800-2 JURID562089J JURID562089JC LEMFÖRDER25912 01 LPRA1600P MAGNETI MARELLI353610128540 MAGNETI MARELLI360406012900 MAGNETI MARELLI360406012901 MAPCO15876 METELLI230807 METELLI230807C METZGER6110532 MEYLE115 523 1077/PD MEYLE115 523 1077 MEYLE1155230023 MEYLE1155230023PD MGAD1569 MINTEXMDC1358 NationalNBD918 NK204764 NK314764 OBTEC A/S424250 OPEN PARTSBDR1742.10 OPTIMALBS-6770C OPTIMALBS-6770 PAGID53969 PEX140046 PILENGA5878 QH Benelux57792 QUINTON HAZELLBDC5182 QUINTON HAZELLBSF5182 RAICAMRD00891 REMSA680300 REMYRAD2300C ROADHOUSE651710 sbs1815204764 ST-TEMPLIN0311010360 ST-TEMPLIN0311010365 SWAG30 94 3846 TEXTAR92090800 TEXTAR92090803 TEXTAR92090805 TEXTAR98200090801 TRISCAN8120 29161C TRISCAN812029161 TRUSTINGDF749 VAICOV10-40076 VALEO186294 VALEO297994 WOKINGP680300 ZIMMERMANN100.1237.20 ZIMMERMANN100.1237.52 ZIMMERMANN100123700 ZIMMERMANN100123750

OE Numbers — AUDI

4B0 615 601 4BO 615 601
MakeModelType / Engine YearsCCkWHP
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 184 250
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) S6 quattro 1997 – 2005 4172 250 340
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 85 115
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 85 116
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.0 1997 – 2005 1984 96 130
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 114 155
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 96 130
AUDI A6 C5 (4B2, 4B4) RS6 quattro 1997 – 2005 4172 331 450
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.7 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 195 265
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 164 223
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 2.7 T 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 100 136
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 81 110
AUDI A6 C5 (4B2, 4B4) 3.7 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 4.2 quattro 1997 – 2005 4172 220 299
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 92 125
AUDI A6 C5 (4B2, 4B4) 3.7 quattro 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 92 125
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) RS6 quattro 1997 – 2006 4172 331 450
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 81 110
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) RS6 plus quattro 1997 – 2006 4172 353 480
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 164 223
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) 3.7 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 4.2 quattro 1997 – 2006 4172 220 299
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) S6 quattro 1997 – 2006 4172 250 340
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 100 136
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 85 115
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 85 116
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 184 250
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 2.0 1997 – 2006 1984 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.7 quattro 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 114 155
