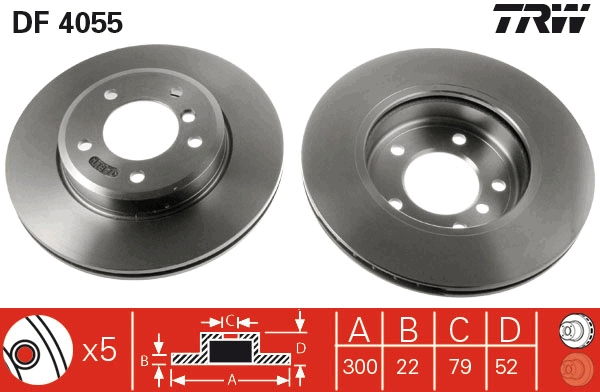

Brake Disc

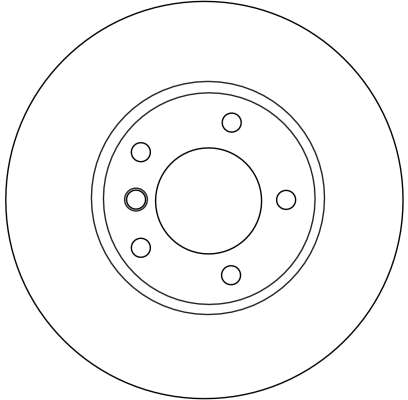

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4055 · SKU DF4055-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)79
Colour black
Height (mm)51.6
Machining High-carbon
Minimum thickness (mm)20.4
Number of Holes 5
Outer Diameter (mm)300
Surface Painted
Thread Size 14,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 79, Colour black, Height [mm] 51,6, Machining High-carbon, Minimum thickness [mm] 20,4, Number of Holes 5, Outer Diameter [mm] 300, Surface Painted, Thread Size 14,5
Fits: BMW, BMW (BRILLIANCE)

Interchangeable Part Numbers

A.B.S.17023 A.P.24746V ACDelcoAC2410D APECDSK971 ATE24012201601 ATE24032201601 ATE24112201601 BENDIX562090B BENDIX562090BC BORG & BECKBBD4127 BOSCH0 986 478 571 BOSCH0 986 479 S32 BOSCH0 986 AB6 577 BOSCH986478571 BOSCH F026 A05 723 BOSCHF026A05723 BRADI1.0644.2.4 Brake ENGINEERINGDI955915S BREMBO09.7701.10 BREMBO09770111 BREMBO0977011X BREMBO09770175 CAR142094 CARHPD094 DBA AustraliaDBA966 DELPHIBG3527 DELPHIBG3527C FEBI BILSTEIN12323 FERODODDF1066 FERODODDF10661 FERODODDF1066C FERODODDF1066C1 FERODODRF1066 FIRST LINEFBD1081 FTE9072120 FTE9082106 FTE9082550 FTEBS5146 FTEBS5146HB HELLA8DD 355 106-171 HELLA8DD 355 106-541 HELLA8DD 355 106-551 HELLA8DD 355 106-552 HELLA8DD 355 127-391 Hi-QSD5228 JURID562090J JURID562090JC LEMFÖRDER22830 01 LEMFÖRDER22830 02 LPRB2546V MAGNETI MARELLI353610644240 MAGNETI MARELLI431602042300 MAPCO15654 METELLI230515 METELLI230515C METZGERX24746 MEYLE315 521 3020/PD MEYLE315 521 3020 MEYLE3835213020PD MGAD1315 MINTEXMDC1383 NationalNBD976 NK201540 NK301540 NK311540 NK341540 OBTEC A/S131359V OPTIMALBS-5890C OPTIMALBS-5890HC OPTIMALBS-5890 PAGID50448 PAGID50448PRO PEX140113 PEX140113N PILENGAV128 QH Benelux57882 QUINTON HAZELLBDC5146 QUINTON HAZELLBSF5146 REMSA658910 ROULUNDS RUBBERD2410 RUVILLEBFR320310 ST-TEMPLIN0311011990 ST-TEMPLIN0311011995 SWAG20912323 TEXTAR92097200 TEXTAR92097203 TEXTAR92097205 TRISCAN812011137 TRISCAN812011137C TRUCKTEC AUTOMOTIVE0834044 TRUSTINGDF549 VALEO186815 VALEO196046 ZIMMERMANN150128800 ZIMMERMANN150128820 ZIMMERMANN150128850 ZIMMERMANN150128852 ZIMMERMANN150128870

OE Numbers — BMW

1 164 539 34 11 1 164 539 34 11 6 757 526 34 11 6 766 224 34 11 6 855 152 34 11 6 864 058 6 757 526 6 766 224 6 855 152 6 864 058
MakeModelType / Engine YearsCCkWHP
BMW 3 (E46) 325 i 1997 – 2005 2494 132 179
BMW 3 (E46) 330 xi 1997 – 2005 2979 168 228
BMW 3 (E46) 320 d 1997 – 2005 1951 95 129
BMW 3 (E46) 323 i 1997 – 2005 2494 120 163
BMW 3 (E46) 328 i 1997 – 2005 2793 144 196
BMW 3 (E46) 320 i 1997 – 2005 2171 120 163
BMW 3 (E46) 325 i 1997 – 2005 2494 137 186
BMW 3 (E46) 318 i 1997 – 2005 1995 100 136
BMW 3 (E46) 318 i 1997 – 2005 1895 87 118
BMW 3 (E46) 328 i 1997 – 2005 2793 142 193
BMW 3 (E46) 320 d 1997 – 2005 1951 100 136
BMW 3 (E46) 323 i 1997 – 2005 2494 125 170
BMW 3 (E46) 320 i 1997 – 2005 1990 110 150
BMW 3 (E46) 316 i 1997 – 2005 1895 77 105
BMW 3 (E46) 330 d 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xd 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xi 1997 – 2005 2979 170 231
BMW 3 (E46) 330 i 1997 – 2005 2979 170 231
BMW 3 (E46) 320 i 1997 – 2005 2171 125 170
BMW 3 (E46) 325 i 1997 – 2005 2494 141 192
BMW 3 (E46) 325 xi 1997 – 2005 2494 141 192
BMW 3 (E46) 316 i 1997 – 2005 1596 77 105
BMW 3 (E46) 318 i 1997 – 2005 1995 105 143
BMW 3 (E46) 320 d 1997 – 2005 1995 110 150
BMW 3 (E46) 318 d 1997 – 2005 1951 85 116
BMW 3 (E46) 316 i 1997 – 2005 1796 85 115
BMW 3 (E46) 330 d 1997 – 2005 2993 150 204
BMW 3 (E46) 330 xd 1997 – 2005 2993 150 204
BMW 3 (E46) 318 d 1997 – 2005 1995 85 116
BMW 3 (E46) 316 i 1997 – 2005 1596 85 115
BMW 3 (E46) 325 xi 1997 – 2005 2494 137 186
BMW 3 Compact (E46) 316 ti 2001 – 2005 1796 85 115
BMW 3 Compact (E46) 325 ti 2001 – 2005 2494 141 192
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 105 143
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 110 150
BMW 3 Compact (E46) 318 td 2001 – 2005 1995 85 115
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 100 136
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 77 105
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 85 115
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 100 136
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 120 163
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 168 228
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 100 136
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 120 163
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 125 170
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 170 231
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 125 170
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 141 192
BMW 3 Convertible (E46) M3 2000 – 2007 3246 252 343
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 105 143
BMW 3 Convertible (E46) 320 Cd 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 330 Cd 2000 – 2007 2993 150 204
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 137 186
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 125 170
BMW 3 Coupe (E46) 328 Ci 1998 – 2006 2793 142 193
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 1990 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 87 118
BMW 3 Coupe (E46) M3 1998 – 2006 3246 252 343
BMW 3 Coupe (E46) 330 xi 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 125 170
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 141 192
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 77 105
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 105 143
BMW 3 Coupe (E46) 330 Cd 1998 – 2006 2993 150 204
BMW 3 Coupe (E46) 320 Cd 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) M3 CSL 1998 – 2006 3246 265 360
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 85 115
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 137 186
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 85 116
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 100 136
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 103 140
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 120 163
BMW 3 Coupe (E46) 325 i 1998 – 2006 2494 132 179
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 120 163
BMW 3 Coupe (E46) 323 i 1998 – 2006 2494 127 173
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 168 228
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 120 163
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 85 116
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 132 179
BMW 3 Touring (E46) 320 i 1999 – 2005 1990 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 87 118
BMW 3 Touring (E46) 328 i 1999 – 2005 2793 142 193
BMW 3 Touring (E46) 320 d 1999 – 2005 1951 100 136
BMW 3 Touring (E46) 330 d 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xd 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xi 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 330 i 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 320 d 1999 – 2005 1995 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1995 105 143
BMW 3 Touring (E46) 316 i 1999 – 2005 1796 85 115
BMW 3 Touring (E46) 318 d 1999 – 2005 1951 85 115
BMW 3 Touring (E46) 330 d 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 330 xd 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 318 d 1999 – 2005 1995 85 116
BMW 3 Touring (E46) 323 i 1999 – 2005 2494 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 137 186
BMW Z3 Coupe (E36) 2.8 i 1997 – 2003 2793 142 193
BMW Z3 Coupe (E36) M 1997 – 2003 3201 236 321
BMW Z3 Coupe (E36) 3.0 i 1997 – 2003 2979 170 231
BMW Z3 Coupe (E36) M 1997 – 2003 3246 239 325
BMW Z3 Coupe (E36) M 1997 – 2003 3246 235 320
BMW Z3 Coupe (E36) 3.0 i 1997 – 2003 2979 168 228
BMW Z3 Coupe (E36) M 3.2 1997 – 2003 3152 176 239
BMW Z3 Roadster (E36) 2.2 i 1995 – 2003 2171 120 163
BMW Z3 Roadster (E36) 3.0 i 1995 – 2003 2979 168 228
BMW Z3 Roadster (E36) 2.5 1995 – 2003 2494 125 170
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 103 140
BMW Z3 Roadster (E36) 1.8 i 1995 – 2003 1796 85 116
BMW Z3 Roadster (E36) 2.8 i 1995 – 2003 2793 142 193
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3201 236 321
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 87 118
BMW Z3 Roadster (E36) 2.0 i 1995 – 2003 1990 110 150
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 85 116
BMW Z3 Roadster (E36) 3.0 i 1995 – 2003 2979 170 231
BMW Z3 Roadster (E36) 2.2 i 1995 – 2003 2171 125 170
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3246 239 325
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3152 179 243
BMW Z3 Roadster (E36) 2.5 i 1995 – 2003 2494 141 192
BMW Z3 Roadster (E36) 3.2 i 1995 – 2003 3246 235 320
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 190 258
BMW Z4 Roadster (E85) 3.2 2002 – 2009 3246 235 320
BMW Z4 Roadster (E85) 3.0 i 2002 – 2009 2979 170 231
BMW Z4 Roadster (E85) 2.5 i 2002 – 2009 2494 141 192
BMW Z4 Roadster (E85) 2.2 i 2002 – 2009 2171 125 170
BMW Z4 Roadster (E85) 2.0 i 2002 – 2009 1995 110 150
BMW Z4 Roadster (E85) 2.5 i 2002 – 2009 2497 130 177
BMW Z4 Roadster (E85) 2.5 si 2002 – 2009 2497 160 218
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 195 265
BMW Z4 Roadster (E85) M 2002 – 2009 3246 252 343
BMW Z4 Roadster (E85) 2.5 si 2002 – 2009 2497 155 211
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 160 218
