Brake Disc

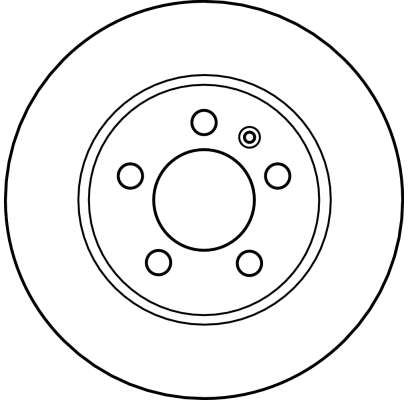

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4065 · SKU DF4065-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)21.9
Brake Disc Type Vented
Centering Diameter (mm)65
Colour black
Height (mm)36.4
Machining High-carbon
Minimum thickness (mm)20
Number of Holes 5
Outer Diameter (mm)256
Surface Painted
Thread Size 15,75
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 21,9, Brake Disc Type Vented, Centering Diameter [mm] 65, Colour black, Height [mm] 36,4, Machining High-carbon, Minimum thickness [mm] 20, Number of Holes 5, Outer Diameter [mm] 256, Surface Painted, Thread Size 15,75
Fits: AUDI, SEAT, SKODA, VW, VW (FAW)

Interchangeable Part Numbers

A.B.S.09.A652.11 A.B.S.17059 A.P.25239 A.P. 25239V A.P.25239V A.P. 25239X A.P.25239X ACDelcoAC2327D AKEBONOBN-0407E AKEBONOBN-0407 APECDSK2116 APECSDK6259 ATE24012201631 ATE24032201631 ATE24112201631 BENDIX562133B BENDIX562133BC BLUE PRINTADV184367 BORG & BECKBBD4183 BOSCH 0 986 478482 BOSCH0986478482 BOSCH 0 986 479871 BOSCH0986479871 BOSCH 0 986 AB6125 BOSCH0986AB6125 BOSCH986478482 BOSCH F 026 A00980 BOSCHF026A00980 BRADI1.0132.6.4 Brake ENGINEERINGDI955879 BREMBO09.A652.1X BREMBO09A65210 CAR142726 CARHPD726 DBA AustraliaDBA800 DELPHIBG3611 DONPCD12452 FEBI BILSTEIN23560 FERODODDF1154 FERODODDF11541 FERODODDF1154C FERODODDF1154X FERODODRF1154 FIRST LINEFBD1163 FREMAXBD-4092 FTE9072319 FTE9082227 FTEBS4764 FTEBS4764B FTEBS4764HB GIRLING6040652 HELLA 8DD 355106-741 HELLA8DD355106741 HELLA 8DD 355106-751 HELLA8DD355106751 HELLA 8DD 355106-752 HELLA8DD355106752 HELLA 8DD 355127-451 HELLA8DD355127451 JURID562133J JURID562133JC LPRA1602V LPRA1602VR MAGNETI MARELLI360406111400 MAGNETI MARELLI360406111401 MAGNETI MARELLI360406111402 MAGNETI MARELLI360704007100 MAPCO15870 MAPCO15870C METELLI230695 METELLI230695C METZGER6110190 MEYLE 115 5231076/PD MEYLE1155231076PD MEYLE 115 5231076 MEYLE1155231076 MEYLE1155230022 MEYLE1155230022PD MGAD1494 MINTEXMDC1382 NationalNBD972 NK204775 NK314775 OBTEC A/S424259V Omnicraft2143132 OPEN PARTSBDA1746.20 OPEN PARTSBDR1746.20 OPTIMALBS-6560C OPTIMALBS-6560 PAGID53972 PAGID53972PRO PEX140050 PILENGAV872 QH Benelux57886 QUINTON HAZELL664610 QUINTON HAZELLBDC4764 QUINTON HAZELLBSF4764 RAICAMRD00902 REMYRAD1791C ROULUNDS RUBBERD2327 RUVILLEBFR371610 sbs1815204775 sbs1815314775 ST-TEMPLIN0311010380 ST-TEMPLIN0311010385 SWAG30221192 SWAG30923560 TEXTAR92098600 TEXTAR92098603 TEXTAR92098605 TRISCAN812029164 TRISCAN812029164C TRUSTINGDF742 VAICOV10-80083 VALEO197088 WOKINGP664610 ZIMMERMANN100.1241.52 ZIMMERMANN100124100 ZIMMERMANN100124120 ZIMMERMANN100124150

OE Numbers — AUDI 8L0 615

601

OE Numbers — AUDI

8L0615601 8N0615601B

OE Numbers — AUDI 8N0 615 601

B
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 140 190
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 134 182
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 134 182
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 168 228
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 140 190
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 120 163
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 180 245
AUDI TT (8N3) 3.2 VR6 quattro 1998 – 2007 3189 184 250
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 110 150
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 165 224
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 132 180
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 132 180
AUDI TT Roadster (8N9) 3.2 VR6 quattro 1999 – 2007 3189 184 250
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 165 224
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 132 180
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 140 190
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 140 190
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 120 163
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 134 182
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 132 180
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 168 228
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 110 150
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 134 182
