Brake Disc

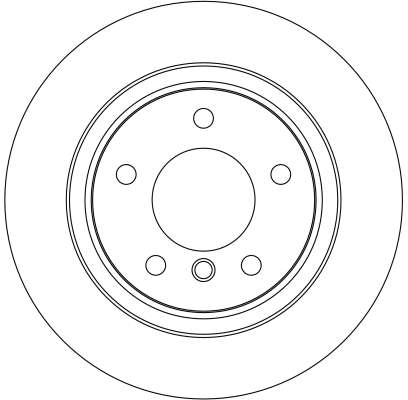

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4069 · SKU DF4069-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)19
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Drum diameter (mm)160
Height (mm)60
Minimum thickness (mm)17.4
Number of Holes 5
Outer Diameter (mm)294
Surface Painted
Thread Size 14,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 19, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 160, Height [mm] 60, Minimum thickness [mm] 17,4, Number of Holes 5, Outer Diameter [mm] 294, Surface Painted, Thread Size 14,5
Fits: BMW

Interchangeable Part Numbers

A.B.S.17024 A.P.24942 ACDelcoAC2411D APECDSK977 ATE24011901081 ATE24031901081 ATE24111901081 BENDIX562094B BENDIX562094BC BORG & BECKBBD4184 BOSCH0 986 478 570 BOSCH0 986 479 882 BOSCH0 986 AB6 567 BOSCH0986AB5937 BOSCH986478570 BOSCH F026 A01 397 BOSCHF026A01397 BRADI1.0645.6.4 Brake ENGINEERINGDI955939 BREMBO09.7702.10 BREMBO09770211 BREMBO0977021X BREMBO09770275 CAR142093 CARHPD093 DBA AustraliaDBA967 DELPHIBG3530 DELPHIBG3530C FEBI BILSTEIN17925 FEBI BILSTEIN28165 FERODODDF1073 FERODODDF10731 FERODODDF1073C FERODODDF1073C-1-D FERODODDF1073C1 FERODODRF1073 FIRST LINEFBD1164 FTE9072536 FTE9082100 FTEBS5147 FTEBS5147HB GIRLING6040692 HELLA8DD 355 106-561 HELLA8DD 355 106-571 HELLA8DD 355 106-572 HELLA8DD 355 124-011 HELLA8DD 355 127-401 Hi-QSD5212 JURID562094J JURID562094JC LEMFÖRDER22831 01 LEMFÖRDER22831 02 LPRB2028V LPRB2547V LPRB2547VR MAGNETI MARELLI351067660500 MAGNETI MARELLI353610645640 MAPCO15667 METELLI230704 METELLI230704C MEYLE315 523 3022/PD MEYLE315 523 3022 MEYLE3155230059 MEYLE3155230059PD MGAD1374 MINTEXMDC1384 NationalNBD977 NK201541 NK311541 OBTEC A/S131360V OPTIMALBS-6080C OPTIMALBS-6080 PAGID50449 PAGID50449PRO PEX140114 PEX140114N PILENGAV129 QH Benelux57883 QUINTON HAZELLBDC5147 QUINTON HAZELLBSF5147 REMSA672210 ROULUNDS RUBBERD2411 RUVILLEBRR320610 SWAG20917925 TEXTAR92097300 TEXTAR92097303 TEXTAR92097305 TRISCAN812011138 TRISCAN812011138C TRUCKTEC AUTOMOTIVE0834051 VAICOV20-80044 VALEO186861 VALEO196047 WOKINGP672210 ZIMMERMANN150128900 ZIMMERMANN150128920 ZIMMERMANN150128950 ZIMMERMANN150128952

OE Numbers — BMW

1 165 563 34 21 1 165 563 34 21 6 855 154 34 21 6 864 056 6 855 154 6 864 056
MakeModelType / Engine YearsCCkWHP
BMW 3 (E46) 318 i 1997 – 2005 1895 87 118
BMW 3 (E46) 328 i 1997 – 2005 2793 142 193
BMW 3 (E46) 320 d 1997 – 2005 1951 100 136
BMW 3 (E46) 323 i 1997 – 2005 2494 125 170
BMW 3 (E46) 320 i 1997 – 2005 1990 110 150
BMW 3 (E46) 316 i 1997 – 2005 1895 77 105
BMW 3 (E46) 330 d 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xd 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xi 1997 – 2005 2979 170 231
BMW 3 (E46) 330 i 1997 – 2005 2979 170 231
BMW 3 (E46) 320 i 1997 – 2005 2171 125 170
BMW 3 (E46) 325 i 1997 – 2005 2494 141 192
BMW 3 (E46) 325 xi 1997 – 2005 2494 141 192
BMW 3 (E46) 316 i 1997 – 2005 1596 77 105
BMW 3 (E46) 318 i 1997 – 2005 1995 105 143
BMW 3 (E46) 320 d 1997 – 2005 1995 110 150
BMW 3 (E46) 318 d 1997 – 2005 1951 85 116
BMW 3 (E46) 316 i 1997 – 2005 1796 85 115
BMW 3 (E46) 330 d 1997 – 2005 2993 150 204
BMW 3 (E46) 330 xd 1997 – 2005 2993 150 204
BMW 3 (E46) 318 d 1997 – 2005 1995 85 116
BMW 3 (E46) 316 i 1997 – 2005 1596 85 115
BMW 3 (E46) 325 xi 1997 – 2005 2494 137 186
BMW 3 (E46) 330 xi 1997 – 2005 2979 168 228
BMW 3 (E46) 320 d 1997 – 2005 1951 95 129
BMW 3 (E46) 325 i 1997 – 2005 2494 137 186
BMW 3 (E46) 318 i 1997 – 2005 1995 100 136
BMW 3 (E46) 328 i 1997 – 2005 2793 144 196
BMW 3 (E46) 320 i 1997 – 2005 2171 120 163
BMW 3 (E46) 323 i 1997 – 2005 2494 120 163
BMW 3 (E46) 325 i 1997 – 2005 2494 132 179
BMW 3 Compact (E46) 316 ti 2001 – 2005 1796 85 115
BMW 3 Compact (E46) 325 ti 2001 – 2005 2494 141 192
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 105 143
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 110 150
BMW 3 Compact (E46) 318 td 2001 – 2005 1995 85 115
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 100 136
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 77 105
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 85 115
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 100 136
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 125 170
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 170 231
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 125 170
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 141 192
BMW 3 Convertible (E46) M3 2000 – 2007 3246 252 343
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 105 143
BMW 3 Convertible (E46) 320 Cd 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 330 Cd 2000 – 2007 2993 150 204
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 137 186
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 120 163
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 168 228
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 120 163
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 100 136
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 125 170
BMW 3 Coupe (E46) 328 Ci 1998 – 2006 2793 142 193
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 1990 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 87 118
BMW 3 Coupe (E46) M3 1998 – 2006 3246 252 343
BMW 3 Coupe (E46) 330 xi 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 125 170
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 141 192
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 77 105
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 105 143
BMW 3 Coupe (E46) 330 Cd 1998 – 2006 2993 150 204
BMW 3 Coupe (E46) 320 Cd 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) M3 CSL 1998 – 2006 3246 265 360
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 85 115
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 137 186
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 168 228
BMW 3 Coupe (E46) 323 i 1998 – 2006 2494 127 173
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 120 163
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 100 136
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 85 116
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 120 163
BMW 3 Coupe (E46) 325 i 1998 – 2006 2494 132 179
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 103 140
BMW 3 Touring (E46) 320 i 1999 – 2005 1990 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 87 118
BMW 3 Touring (E46) 328 i 1999 – 2005 2793 142 193
BMW 3 Touring (E46) 320 d 1999 – 2005 1951 100 136
BMW 3 Touring (E46) 330 d 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xd 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xi 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 330 i 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 320 d 1999 – 2005 1995 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1995 105 143
BMW 3 Touring (E46) 316 i 1999 – 2005 1796 85 115
BMW 3 Touring (E46) 318 d 1999 – 2005 1951 85 115
BMW 3 Touring (E46) 330 d 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 330 xd 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 318 d 1999 – 2005 1995 85 116
BMW 3 Touring (E46) 323 i 1999 – 2005 2494 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 85 116
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 120 163
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 132 179
