Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

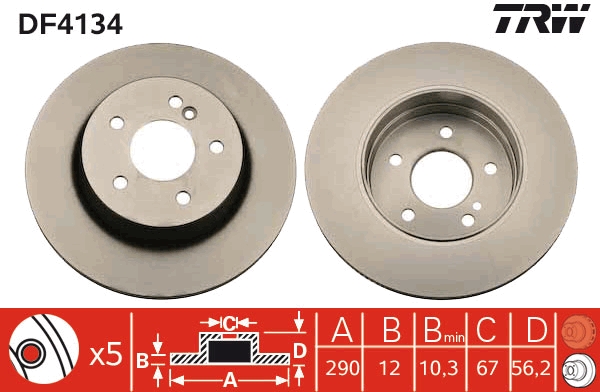

Part No. DF4134 · SKU DF4134-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)67
Colour black
Drum diameter (mm)164
Height (mm)56.2
Minimum thickness (mm)10.3
Number of Holes 5
Outer Diameter (mm)290
Surface Painted
Test Mark E1 90R-02 C0204/0523
Thread Size 13,25
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Drum diameter [mm] 164, Height [mm] 56,2, Minimum thickness [mm] 10,3, Number of Holes 5, Outer Diameter [mm] 290, Surface Painted, Test Mark E1 90R-02 C0204/0523, Thread Size 13,25
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

APECDSK2043 ATE24011201491 ATE24111201491 BENDIX562051B BENDIX562051BC BORG & BECKBBD4192 BOSCH 0 986 478899 BOSCH0986478899 Brake ENGINEERINGDI956002 BREMBO08917510 BREMBO08917511 CAR142394 DELPHIBG3602 DELPHIBS4795 FEBI BILSTEIN17829 FERODODDF1251 FERODODDF12511 FERODODDF1251C FERODODDF1251C1 FIRST LINEFBD1178 FTE9072556 FTE9082127 FTEBS4795B HELLA 8DD 355105-941 HELLA8DD355105941 HELLA 8DD 355105-951 HELLA8DD355105951 HELLA 8DD 355105-952 HELLA8DD355105952 HELLA 8DD 355124-691 HELLA8DD355124691 JURID562051J JURID562051JC LEMFÖRDER 2284601 LEMFÖRDER2284601 LPRM2747P MAGNETI MARELLI353612848540 MAPCO15791 METELLI23-0522C METELLI230522 METZGER14844 METZGER14844V METZGER6110218 MEYLE 015 5232039/PD MEYLE0155232039PD MEYLE 015 5232039 MEYLE0155232039 MEYLE0155230024 MEYLE0155230024PD MINTEXMDC1365 NK203340 NK313340 OBTEC A/S232335 OPTIMALBS-7780C OPTIMALBS-7780 PAGID52156 PAGID52156PRO PEX140739 PEX140739N QH Benelux57824 QUINTON HAZELLBDC4795 QUINTON HAZELLBSF4795 REMSA627000 REMSA680100 REMYRAD1701C ST-TEMPLIN0311020620 ST-TEMPLIN0311020625 SWAG10917829 TEXTAR92091100 TEXTAR92091103 TEXTAR92091105 TEXTAR98200091101 TRISCAN812023143 TRUCKTEC AUTOMOTIVE0235138 TRUSTINGDF698 VAICOV30-40042 VALEO197635 ZIMMERMANN400360000 ZIMMERMANN400360020 ZIMMERMANN400360050 ZIMMERMANN400360052

OE Numbers — MERCEDES-BENZ 210 423 05 12

64

OE Numbers — MERCEDES-BENZ

210423051264 2104230512 A2104230512 A210423051264

OE Numbers — MERCEDES-BENZ 210 423 05

12
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ E-CLASS Platform/Chassis (VF210) E 280 (210.663) 1996 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS Platform/Chassis (VF210) E 290 TD (210.617) 1996 – 2003 2874 95 129
MERCEDES-BENZ E-CLASS Platform/Chassis (VF210) E 270 CDI (210.616) 1996 – 2003 2685 125 170
MERCEDES-BENZ E-CLASS Platform/Chassis (VF210) E 250 d (210.610) 1996 – 2003 2497 83 113
MERCEDES-BENZ E-CLASS Platform/Chassis (VF210) E 220 CDi (210.606) 1996 – 2003 2148 105 143
MERCEDES-BENZ E-CLASS T-Model (S210) E 55 T AMG (210.274) 1996 – 2003 5439 260 354
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 4-matic 1996 – 2003 3199 160 218
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 1996 – 2003 3199 160 218
MERCEDES-BENZ E-CLASS T-Model (S210) E 220 T CDI (210.206) 1996 – 2003 2148 100 136
MERCEDES-BENZ E-CLASS T-Model (S210) E 240 T (210.262) 1996 – 2003 2597 125 170
MERCEDES-BENZ E-CLASS T-Model (S210) E 200 T Kompressor (210.248) 1996 – 2003 1998 120 163
MERCEDES-BENZ E-CLASS T-Model (S210) E 430 T 4-matic (210.283) 1996 – 2003 4266 205 279
MERCEDES-BENZ E-CLASS T-Model (S210) E 220 T CDI (210.206) 1996 – 2003 2148 105 143
MERCEDES-BENZ E-CLASS T-Model (S210) E 270 T CDI (210.216) 1996 – 2003 2685 125 170
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 T CDI (210.226) 1996 – 2003 3222 145 197
MERCEDES-BENZ E-CLASS T-Model (S210) E 220 T CDI (210.206) 1996 – 2003 2151 92 125
MERCEDES-BENZ E-CLASS T-Model (S210) E 200 T (210.235) 1996 – 2003 1998 100 136
MERCEDES-BENZ E-CLASS T-Model (S210) E 200 T Kompressor (210.245) 1996 – 2003 1998 137 186
MERCEDES-BENZ E-CLASS T-Model (S210) E 430 T (210.270) 1996 – 2003 4266 205 279
MERCEDES-BENZ E-CLASS T-Model (S210) E 240 T (210.261) 1996 – 2003 2398 125 170
MERCEDES-BENZ E-CLASS T-Model (S210) E 280 T (210.263) 1996 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS T-Model (S210) E 250 T Turbo-D (210.215) 1996 – 2003 2497 110 150
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 T 4-matic (210.282) 1996 – 2003 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S210) E 300 T Turbo-D (210.225) 1996 – 2003 2996 130 177
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 T (210.265) 1996 – 2003 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S210) E 280 T 4-matic (210.281) 1996 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS T-Model (S210) E 270 T CDI 1996 – 2003 2685 120 163
MERCEDES-BENZ E-CLASS T-Model (S210) E 250 T D (210.210) 1996 – 2003 2497 83 113
MERCEDES-BENZ E-CLASS T-Model (S210) E 290 T Turbo-D (210.217) 1996 – 2003 2874 95 129
MERCEDES-BENZ E-CLASS T-Model (S210) E 420 T (210.272) 1996 – 2003 4196 205 279
MERCEDES-BENZ E-CLASS T-Model (S210) E 230 T (210.237) 1996 – 2003 2295 110 150
