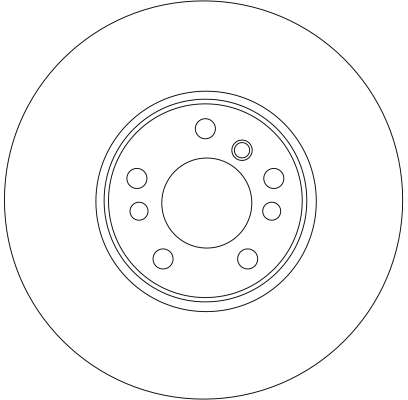

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4187 · SKU DF4187-TRW
Front Axle
₱41,300.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)30
Brake Disc Type Vented
Centering Diameter (mm)75
Height (mm)62.1
Machining High-carbon
Minimum thickness (mm)28.4
Number of Holes 5
Outer Diameter (mm)332
Thread Size 16,6
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 62,1, Machining High-carbon, Minimum thickness [mm] 28,4, Number of Holes 5, Outer Diameter [mm] 332, Thread Size 16,6
Fits: BMW

Supplier Cross-References

TEXTAR92107205 ZIMMERMANN150129853 FERODODDF1256 ATE24013001091 BREMBO9869780 TRWDF4187

Interchangeable Part Numbers

BREMBO09869781 DBA AustraliaDBA813 FERODODDF1256C METELLI230784C METZGER24896V MEYLE315 521 3025/PD MEYLE315 521 3025 REMSA660010 TRISCAN812011148C TRUSTINGDF959 VALEO297808

OE Numbers — BMW

34 11 6 750 713 6 750 713
MakeModelType / Engine YearsCCkWHP
BMW X3 (E83) xDrive 35 d 2003 – 2011 2993 210 286
BMW X3 (E83) xDrive 20 d 2003 – 2011 1995 120 163
BMW X3 (E83) 2.0 sd 2003 – 2011 1995 130 177
BMW X3 (E83) xDrive 20 i 2003 – 2011 1995 110 150
BMW X3 (E83) xDrive 25 i 2003 – 2011 2497 160 218
BMW X3 (E83) xDrive 30 i 2003 – 2011 2996 200 272
BMW X3 (E83) xDrive 20 d 2003 – 2011 1995 130 177
BMW X3 (E83) xDrive 18 d 2003 – 2011 1995 105 143
BMW X3 (E83) xDrive 30 d 2003 – 2011 2993 160 218
BMW X3 (E83) 3.0 sd 2003 – 2011 2993 210 286
BMW X3 (E83) 2.5 i 2003 – 2011 2494 137 186
BMW X3 (E83) xDrive 18 d 2003 – 2011 1995 100 136
BMW X3 (E83) 2.5 si xDrive 2003 – 2011 2497 155 211
BMW X3 (E83) 3.0 i 2003 – 2011 2979 168 228
BMW X3 (E83) 3.0 si 2003 – 2011 2996 194 264
BMW X3 (E83) 3.0 d 2003 – 2011 2993 155 211
BMW X3 (E83) xDrive 30 i 2003 – 2011 2996 194 264
BMW X3 (E83) xDrive 25 i 2003 – 2011 2497 155 211
BMW X3 (E83) 3.0 si 2003 – 2011 2996 200 272
BMW X3 (E83) xDrive 30 d 2003 – 2011 2993 155 211
BMW X3 (E83) xDrive 30 i 2003 – 2011 2996 160 218
BMW X3 (E83) 3.0 i xDrive 2003 – 2011 2979 170 231
BMW X3 (E83) 2.5 i 2003 – 2011 2494 141 192
BMW X3 (E83) 3.0 d 2003 – 2011 2993 150 204
BMW X3 (E83) 2.0 d 2003 – 2011 1995 110 150
BMW X3 (E83) 2.0 i 2003 – 2011 1995 110 150
BMW X3 (E83) 3.0 d 2003 – 2011 2993 160 218
BMW X3 (E83) 2.5 si 2003 – 2011 2497 160 218
BMW X5 (E53) 4.8 is 2000 – 2006 4799 265 360
BMW X5 (E53) 3.0 d 2000 – 2006 2993 155 211
BMW X5 (E53) 3.0 d 2000 – 2006 2993 160 218
BMW X5 (E53) 4.4 i 2000 – 2006 4398 235 320
BMW X5 (E53) 3.0 i 2000 – 2006 2979 170 231
BMW X5 (E53) 3.0 i 2000 – 2006 2979 168 228
BMW X5 (E53) 4.6 is 2000 – 2006 4619 255 347
BMW X5 (E53) 3.0 d 2000 – 2006 2925 135 184
BMW X5 (E53) 4.4 i 2000 – 2006 4398 210 286
