Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

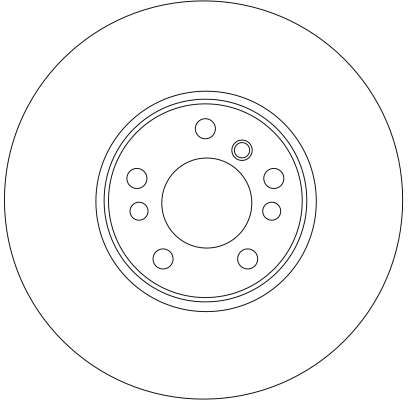

Brake Disc

Part No. DF4187S · SKU DF4187S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)30
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Height (mm)62.1
Machining High-carbon
Minimum thickness (mm)28.4
Number of Holes 5
Outer Diameter (mm)332
Surface Painted
Thread Size 16,75
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Height [mm] 62,1, Machining High-carbon, Minimum thickness [mm] 28,4, Number of Holes 5, Outer Diameter [mm] 332, Surface Painted, Thread Size 16,75
Fits: BMW

Interchangeable Part Numbers

APECDSK2223 ATE24013001091 ATE24033001091 ATE24113001091 BENDIX562134B BENDIX562134BC BORG & BECKBBD5729S BOSCH 0 986 478973 BOSCH0986478973 BOSCH 0 986 478974 BOSCH0986478974 BOSCH0986AB5940 BOSCH F 026 A01326 BOSCHF026A01326 Brake ENGINEERINGDI956145S BREMBO09869780 BREMBO09869781 CAR142089 CARHPD089 DBA AustraliaDBA813 DELPHIBG3628 FEBI BILSTEIN21177 FERODODDF1256 FERODODDF12561 FERODODDF1256C FERODODDF1256C1 FIRST LINEFBD1254 FTE9071068 FTE9081167 FTE9082557 FTEBS5250 FTEBS5250H FTEBS5250HB GIRLING6041875 HELLA 8DD 355107-721 HELLA8DD355107721 HELLA 8DD 355107-731 HELLA8DD355107731 HELLA 8DD 355107-741 HELLA8DD355107741 HELLA 8DD 355107-751 HELLA8DD355107751 HELLA 8DD 355121-221 HELLA8DD355121221 HELLA 8DD 355122-012 HELLA8DD355122012 HELLA 8DD 355126-821 HELLA8DD355126821 HELLA 8DD 355127-631 HELLA8DD355127631 Hi-QSD5202 JURID562134J JURID562134JC LEMFÖRDER 3097501 LEMFÖRDER3097501 MAGNETI MARELLI353610646240 MAPCO15656 METELLI230784 METELLI230784C METZGER24896 METZGER24896V MEYLE 315 5213025/PD MEYLE3155213025PD MEYLE 315 5213025 MEYLE3155213025 MEYLE3155210019 MEYLE3835210019PD MINTEXMDC1131 NK201547 NK311547 NK341547 PAGID50321 PAGID50321PRO PAGID50322 PAGID50322PRO PEX140812 QH Benelux57981 QUINTON HAZELLBDC5250 QUINTON HAZELLBSF5250 REMSA660010 RUVILLEBFR320110 ST-TEMPLIN0311012030 ST-TEMPLIN0311012035 SWAG20921177 TEXTAR92107200 TEXTAR92107203 TEXTAR92107205 TEXTAR92107300 TEXTAR92107303 TEXTAR92107305 TRISCAN812011148 TRISCAN812011148C TRUCKTEC AUTOMOTIVE0834075 TRUSTINGDF959 VALEO186808 VALEO297808 ZIMMERMANN150129700 ZIMMERMANN150129720 ZIMMERMANN150129750 ZIMMERMANN150129752 ZIMMERMANN150129800 ZIMMERMANN150129820 ZIMMERMANN150129850 ZIMMERMANN150129852

OE Numbers — BMW 34 11 6 750

713

OE Numbers — BMW

34116750713 34116756045 34116765457 34116766036 34116794300 34116794304 6750713 6756045 6765457 6766036 6794300 6794304

OE Numbers — BMW 34 11 6 756

045

OE Numbers — BMW 34 11 6 765

457

OE Numbers — BMW 34 11 6 766

036

OE Numbers — BMW 34 11 6 794

300 304
MakeModelType / Engine YearsCCkWHP
BMW X3 (E83) xDrive 35 d 2003 – 2011 2993 210 286
BMW X3 (E83) xDrive 20 d 2003 – 2011 1995 120 163
BMW X3 (E83) 2.0 sd 2003 – 2011 1995 130 177
BMW X3 (E83) xDrive 20 i 2003 – 2011 1995 110 150
BMW X3 (E83) xDrive 25 i 2003 – 2011 2497 160 218
BMW X3 (E83) xDrive 30 i 2003 – 2011 2996 200 272
BMW X3 (E83) xDrive 20 d 2003 – 2011 1995 130 177
BMW X3 (E83) xDrive 18 d 2003 – 2011 1995 105 143
BMW X3 (E83) xDrive 30 d 2003 – 2011 2993 160 218
BMW X3 (E83) 3.0 sd 2003 – 2011 2993 210 286
BMW X3 (E83) 2.5 i 2003 – 2011 2494 137 186
BMW X3 (E83) xDrive 18 d 2003 – 2011 1995 100 136
BMW X3 (E83) 2.5 si xDrive 2003 – 2011 2497 155 211
BMW X3 (E83) 3.0 i 2003 – 2011 2979 168 228
BMW X3 (E83) 3.0 si 2003 – 2011 2996 194 264
BMW X3 (E83) 3.0 d 2003 – 2011 2993 155 211
BMW X3 (E83) xDrive 30 i 2003 – 2011 2996 194 264
BMW X3 (E83) xDrive 25 i 2003 – 2011 2497 155 211
BMW X3 (E83) 3.0 si 2003 – 2011 2996 200 272
BMW X3 (E83) xDrive 30 d 2003 – 2011 2993 155 211
BMW X3 (E83) xDrive 30 i 2003 – 2011 2996 160 218
BMW X3 (E83) 3.0 i xDrive 2003 – 2011 2979 170 231
BMW X3 (E83) 2.5 i 2003 – 2011 2494 141 192
BMW X3 (E83) 3.0 d 2003 – 2011 2993 150 204
BMW X3 (E83) 2.0 d 2003 – 2011 1995 110 150
BMW X3 (E83) 2.0 i 2003 – 2011 1995 110 150
BMW X3 (E83) 3.0 d 2003 – 2011 2993 160 218
BMW X3 (E83) 2.5 si 2003 – 2011 2497 160 218
BMW X5 (E53) 4.8 is 2000 – 2006 4799 265 360
BMW X5 (E53) 3.0 d 2000 – 2006 2993 155 211
BMW X5 (E53) 3.0 d 2000 – 2006 2993 160 218
BMW X5 (E53) 4.4 i 2000 – 2006 4398 235 320
BMW X5 (E53) 3.0 i 2000 – 2006 2979 170 231
BMW X5 (E53) 3.0 i 2000 – 2006 2979 168 228
BMW X5 (E53) 4.6 is 2000 – 2006 4619 255 347
BMW X5 (E53) 3.0 d 2000 – 2006 2925 135 184
BMW X5 (E53) 4.4 i 2000 – 2006 4398 210 286
