Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

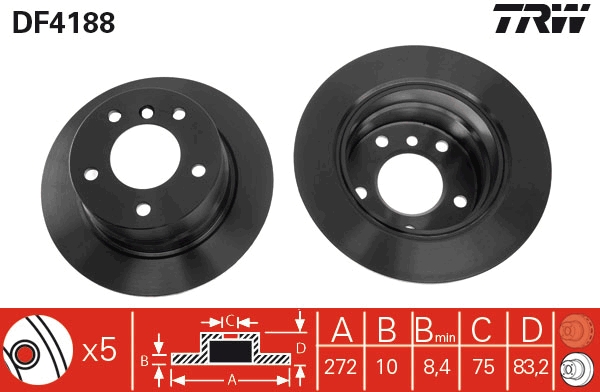

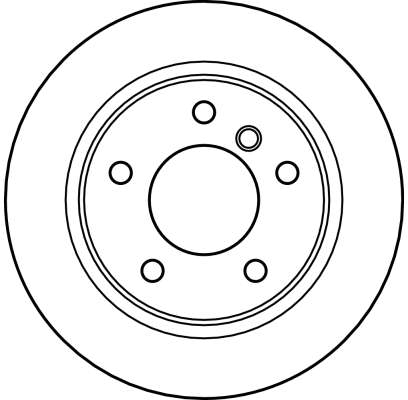

Brake Disc

Part No. DF4188 · SKU DF4188-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)75
Colour black
Drum diameter (mm)160
Height (mm)83.2
Minimum thickness (mm)8.4
Number of Holes 5
Outer Diameter (mm)272
Surface Painted
Thread Size 14,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 160, Height [mm] 83,2, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 272, Surface Painted, Thread Size 14,5
Fits: BMW

Interchangeable Part Numbers

A.B.S.16535 A.P.14847 ACDelcoAC2585D APECDSK352 ATE24011002731 ATE24111002731 BENDIX562093B BENDIX562093BC BORG & BECKBBD4185 BOSCH 0 986 478439 BOSCH0986478439 BOSCH 0 986 AB5670 BOSCH0986AB5670 Brake ENGINEERINGDI955653 BREMBO08685380 BREMBO08685381 CAR142066 CARHPD066 DELPHIBG3040 DELPHIBG3592 DELPHIBS4914 FEBI BILSTEIN23555 FERODODDF1028 FERODODDF10281 FERODODDF1028C FIRST LINEFBD1167 FTE9072294 FTE9082346 FTEBS4914H GIRLING6041884 HELLA 8DD 355104-811 HELLA8DD355104811 HELLA 8DD 355104-821 HELLA8DD355104821 HELLA 8DD 355104-822 HELLA8DD355104822 HELLA 8DD 355124-711 HELLA8DD355124711 HELLA 8DD 355127-281 HELLA8DD355127281 JURID562093J JURID562093JC LPRB2552P MAGNETI MARELLI351066850500 MAPCO15660 METELLI230783 METELLI230783C METZGER14847V MEYLE 315 5233058 MEYLE3155233058 MEYLE3155233058PD MGAD1518 MINTEXMDC1327 NationalNBD878 NK201546 NK311546 PAGID50442 PAGID50442PRO PEX140865 PILENGA5133 QH Benelux57823 QUINTON HAZELLBDC4914 QUINTON HAZELLBSF4914 REMSA679800 REMYRAD1775C ROULUNDS RUBBERD2585 ST-TEMPLIN0311011980 ST-TEMPLIN0311011985 SWAG20923555 TEXTAR92076700 TEXTAR92076703 TEXTAR92076705 TEXTAR98200076701 TRISCAN812011136 TRUCKTEC AUTOMOTIVE0834150 TRUSTINGDF762 VAICOV20-40034 VALEO197336 WOKINGP679800 ZIMMERMANN150128700 ZIMMERMANN150128720 ZIMMERMANN150128750 ZIMMERMANN150128752

OE Numbers — BMW 1 163

845

OE Numbers — BMW

1163845 1164399 34211163845 34211164399 34216794298 6794298

OE Numbers — BMW 1 164

399

OE Numbers — BMW 34 21 6 794

298
MakeModelType / Engine YearsCCkWHP
BMW Z3 Coupe (E36) 3.0 i 1997 – 2003 2979 168 228
BMW Z3 Coupe (E36) 2.8 i 1997 – 2003 2793 142 193
BMW Z3 Coupe (E36) M 1997 – 2003 3201 236 321
BMW Z3 Coupe (E36) M 1997 – 2003 3246 235 320
BMW Z3 Coupe (E36) M 3.2 1997 – 2003 3152 176 239
BMW Z3 Coupe (E36) 3.0 i 1997 – 2003 2979 170 231
BMW Z3 Coupe (E36) M 1997 – 2003 3246 239 325
BMW Z3 Roadster (E36) 2.2 i 1995 – 2003 2171 125 170
BMW Z3 Roadster (E36) 2.2 i 1995 – 2003 2171 120 163
BMW Z3 Roadster (E36) 3.0 i 1995 – 2003 2979 168 228
BMW Z3 Roadster (E36) 2.5 1995 – 2003 2494 125 170
BMW Z3 Roadster (E36) 3.2 i 1995 – 2003 3246 235 320
BMW Z3 Roadster (E36) 2.5 i 1995 – 2003 2494 141 192
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3152 179 243
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3246 239 325
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 103 140
BMW Z3 Roadster (E36) 3.0 i 1995 – 2003 2979 170 231
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 85 116
BMW Z3 Roadster (E36) 2.0 i 1995 – 2003 1990 110 150
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 87 118
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3201 236 321
BMW Z3 Roadster (E36) 2.8 i 1995 – 2003 2793 142 193
BMW Z3 Roadster (E36) 1.8 i 1995 – 2003 1796 85 116
