TRW
Braking System

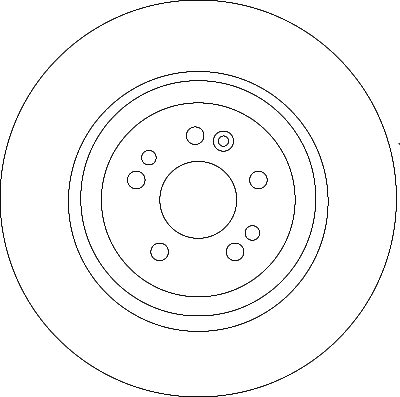

Brake Disc
Part No.
DF4222S
·
SKU
DF4222S-TRW
Front Axle
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 112 |
| Brake Disc Thickness (mm) | 31.9 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 67 |
| Colour black |
| Height (mm) | 50.7 |
| Machining High-carbon |
| Minimum thickness (mm) | 30 |
| Number of Holes 5 |
| Outer Diameter (mm) | 345 |
| Surface Painted |
| Thread Size 15,25 |
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 31,9, Brake Disc Type Vented, Centering Diameter [mm] 67, Colour black, Height [mm] 50,7, Machining High-carbon, Minimum thickness [mm] 30, Number of Holes 5, Outer Diameter [mm] 345, Surface Painted, Thread Size 15,25
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
APECDSK2019
ATE24013201141
ATE24113201141
BENDIX562341B
BENDIX562402B
BENDIX562402BC
BORG & BECKBBD5738S
BOSCH 0 986 479405
BOSCH0986479405
BOSCH0986AB5820
Brake ENGINEERINGDI956118S
BREMBO09.7606.10
BREMBO09760611
CAR142395
CARHPD395
DBA AustraliaDBA552
DELPHIBG9759
FEBI BILSTEIN21950
FERODODDF1085
FERODODDF10851
FERODODDF1085C-1-D
FERODODDF1085C-1
FIRST LINEFBD1297
FTE9071074
FTE9081196
FTEBS5231
FTEBS5231HB
FTEBS7195
FTEBS7195HB
GIRLING6042225
HELLA 8DD 355107-211
HELLA8DD355107211
HELLA 8DD 355107-221
HELLA8DD355107221
HELLA 8DD 355121-962
HELLA8DD355121962
HELLA 8DD 355129-741
HELLA8DD355129741
Hi-QSD5613
JURID562341J
JURID562402J
JURID562402JC
LEMFÖRDER 2547001
LEMFÖRDER2547001
LPRM2024V
MAGNETI MARELLI353612846240
METELLI230842
METELLI230842C
METZGER20430V
MEYLE 015 5212056/PD
MEYLE0155212056PD
MEYLE 015 5212056
MEYLE0155212056
MEYLE0835212056PD
MINTEXMDC1467
NK203356
NK313356
NK343356
OPTIMALBS-6430C
OPTIMALBS-6430
PAGID50297
PAGID50297PRO
PEX140729
QH Benelux57988
QUINTON HAZELLBDC5231
QUINTON HAZELLBSF5231
REMSA664410
ST-TEMPLIN0311020630
ST-TEMPLIN0311020635
SWAG10921950
TEXTAR92103200
TEXTAR92103203
TEXTAR92103205
TEXTAR98200103201
TRISCAN812023156
TRUCKTEC AUTOMOTIVE0235087
TRUSTINGDF737
VALEO186811
ZIMMERMANN400361220
OE Numbers — MERCEDES-BENZ 163 421 03
12
OE Numbers — MERCEDES-BENZ
1634210312
1634210512
A1634210312
A1634210512
A163421031264
| Make | Model | Type / Engine |
Years | CC | kW | HP |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 320 (163.154) |
1998 – 2005 |
3199 |
160 |
218 |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 230 (163.136) |
1998 – 2005 |
2295 |
110 |
150 |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 430 (163.172) |
1998 – 2005 |
4266 |
200 |
272 |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 270 CDI (163.113) |
1998 – 2005 |
2685 |
120 |
163 |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 55 AMG (163.174) |
1998 – 2005 |
5439 |
255 |
347 |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 400 CDI (163.128) |
1998 – 2005 |
3996 |
184 |
250 |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 500 (163.175) |
1998 – 2005 |
4966 |
215 |
292 |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 350 (163.157) |
1998 – 2005 |
3724 |
180 |
245 |
| MERCEDES-BENZ |
M-CLASS (W163) |
ML 350 |
1998 – 2005 |
3724 |
173 |
235 |
