Brake Disc

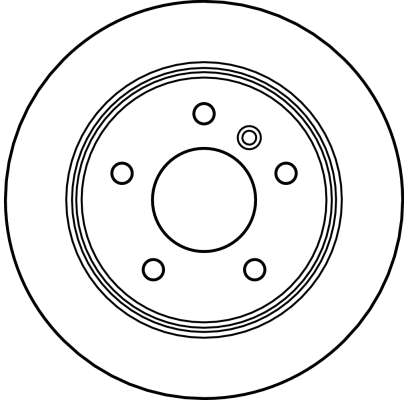

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4223 · SKU DF4223-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)8
Brake Disc Type solid
Centering Diameter (mm)67
Colour black
Drum diameter (mm)164
Height (mm)55.2
Minimum thickness (mm)7
Number of Holes 5
Outer Diameter (mm)258
Surface Painted
Test Mark E1 90R-02 C0204/0283
Thread Size 13,25
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 8, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Drum diameter [mm] 164, Height [mm] 55,2, Minimum thickness [mm] 7, Number of Holes 5, Outer Diameter [mm] 258, Surface Painted, Test Mark E1 90R-02 C0204/0283, Thread Size 13,25
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.17366 APECDSK2241 ATE24010801111 ATE24030801111 BENDIX562149B BENDIX562149BC BORG & BECKBBD4289 BOSCH 0 986 478475 BOSCH0986478475 BOSCH 0 986 479B36 BOSCH0986479B36 Brake ENGINEERINGDI956039 BREMBO08.9580.21 BREMBO08958020 BREMBO8958020 CAR142279 CARHPD279 DELPHIBG3710 DONPCD11452 FEBI BILSTEIN22931 FERODODDF1362 FERODODDF13621 FERODODDF1362C FERODODDF1362C-1-D FERODODDF1362C1 FIRST LINEFBD1291 FTE9072290 FTE9082187 FTEBS5173 HELLA 8DD 355106-941 HELLA8DD355106941 HELLA 8DD 355106-951 HELLA8DD355106951 JURID562149J JURID562149JC LEMFÖRDER 2809501 LEMFÖRDER2809501 LPRM2001P LPRM2001PR METELLI23-0599C METELLI230599 METZGER6110144 MEYLE 015 5232091 MEYLE0155232091 MEYLE0155232091PD MINTEXMDC1422 NationalNBD1052 NK203355 NK313355 OPTIMALBS-7810C PAGID50274 PAGID50274PRO PEX140853 PILENGA5899 QH Benelux57929 QUINTON HAZELLBDC5173 QUINTON HAZELLBSF5173 REMSA683100 ST-TEMPLIN0311020660 ST-TEMPLIN0311020665 SWAG10922931 TEXTAR92099700 TEXTAR92099703 TEXTAR98200099701 TRISCAN812023166 TRUCKTEC AUTOMOTIVE0235226 TRUSTINGDF771 VAICOV30-40052 VALEO186760 WOKINGP683100 ZIMMERMANN400361100 ZIMMERMANN400361120 ZIMMERMANN400361150 ZIMMERMANN400361152

OE Numbers — MERCEDES-BENZ 168 423 02

12

OE Numbers — MERCEDES-BENZ

1684230212 168423021264 A1684230212 A168423021264
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ A-CLASS (W168) A 140 (168.031, 168.131) 1997 – 2005 1397 60 82
MERCEDES-BENZ A-CLASS (W168) A 160 (168.033, 168.133) 1997 – 2005 1598 75 102
MERCEDES-BENZ A-CLASS (W168) A 160 CDI (168.007) 1997 – 2005 1689 44 60
MERCEDES-BENZ A-CLASS (W168) A 170 CDI (168.008) 1997 – 2005 1689 66 90
MERCEDES-BENZ A-CLASS (W168) A 190 (168.032, 168.132) 1997 – 2005 1898 92 125
MERCEDES-BENZ A-CLASS (W168) A 160 CDI (168.006) 1997 – 2005 1689 55 75
MERCEDES-BENZ A-CLASS (W168) A 170 CDI (168.009, 168.109) 1997 – 2005 1689 70 95
MERCEDES-BENZ A-CLASS (W168) A 140 (168.031, 168.131) 1997 – 2005 1598 60 82
MERCEDES-BENZ A-CLASS (W168) A 210 (168.035, 168.135) 1997 – 2005 2084 103 140
MERCEDES-BENZ A-CLASS (W168) A 38 AMG Twin Engine (168.032) 1997 – 2005 1898 184 250
MERCEDES-BENZ VANEO (414) 1.7 CDI (414.700) 2002 – 2005 1689 55 75
MERCEDES-BENZ VANEO (414) 1.6 (414.700) 2002 – 2005 1598 75 102
MERCEDES-BENZ VANEO (414) 1.6 (414.700) 2002 – 2005 1598 60 82
MERCEDES-BENZ VANEO (414) 1.9 (414.700) 2002 – 2005 1898 92 125
MERCEDES-BENZ VANEO (414) 1.7 CDI (414.700) 2002 – 2005 1689 67 91
