Braking System

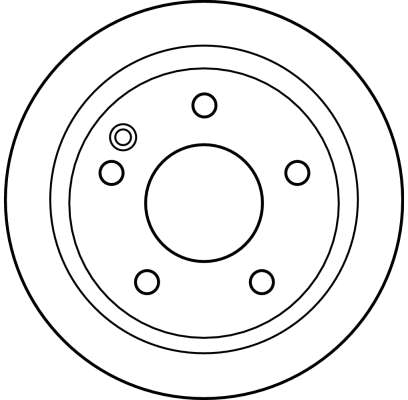

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF4224-TRW
Availability: OutOfStock

Part No. DF4224 · SKU DF4224-TRW

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	120
Brake Disc Thickness (mm)	22
Brake Disc Type Vented
Centering Diameter (mm)	67
Colour black
Height (mm)	35.5
Minimum thickness (mm)	19
Number of Holes 5
Outer Diameter (mm)	270
Surface Painted
Thread Size 13,25

Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 67, Colour black, Height [mm] 35,5, Minimum thickness [mm] 19, Number of Holes 5, Outer Diameter [mm] 270, Surface Painted, Thread Size 13,25
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.17422 APECDSK2403 ATE24012201991 ATE24032201991 BENDIX562249B BORG & BECKBBD4411 BOSCH0 986 479 071 BOSCH0 986 479 B67 Brake ENGINEERINGDI956180 BREMBO09.B843.11 BREMBO09B84310 CAR1421121 CARHPD1121 DELPHIBG3709 FEBI BILSTEIN23997 FERODODDF1363 FERODODDF13631 FERODODDF1363C FIRST LINEFBD1448 FTEBS5454 GIRLING6042241 HELLA8DD 355 110-221 HELLA8DD 355 110-231 HELLA8DD 355 128-161 JURID562249J JURID562249JC LEMFÖRDER28093 01 LPRM2000V METELLI23-0598C METELLI230598 MEYLE015 521 2094 MEYLE0155212094PD MINTEXMDC1653 NationalNBD1248 NK203369 NK313369 OPTIMALBS-8012HC OPTIMALBS-8012 PAGID54245 PAGID54245PRO PILENGAV294 QH Benelux58077 QUINTON HAZELLBDC5454 QUINTON HAZELLBSF5454 REMSA674810 SWAG10923997 TEXTAR92124500 TEXTAR92124503 TRISCAN812023165 TRUSTINGDF811 VAICOV30-80062 VALEO197060 WOKINGP674810 ZIMMERMANN400362300 ZIMMERMANN400362350

OE Numbers — MERCEDES-BENZ

414 421 00 12 414421001264 A4144210012 A414421001264

Make	Model	Type / Engine	Years	CC	kW	HP
MERCEDES-BENZ	VANEO (414)	1.7 CDI (414.700)	2002 – 2005	1689	55	75
MERCEDES-BENZ	VANEO (414)	1.6 (414.700)	2002 – 2005	1598	75	102
MERCEDES-BENZ	VANEO (414)	1.6 (414.700)	2002 – 2005	1598	60	82
MERCEDES-BENZ	VANEO (414)	1.9 (414.700)	2002 – 2005	1898	92	125
MERCEDES-BENZ	VANEO (414)	1.7 CDI (414.700)	2002 – 2005	1689	67	91
