Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4239 · SKU DF4239-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

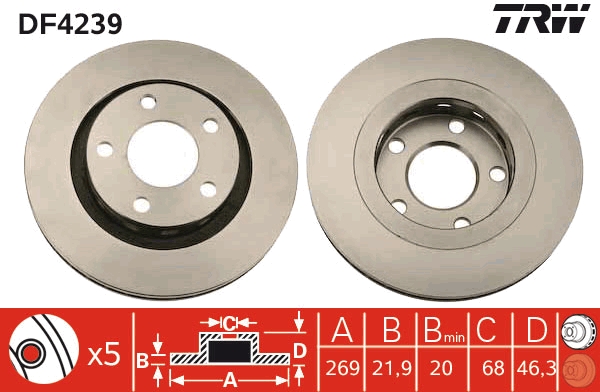

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)21.9
Brake Disc Type Vented
Centering Diameter (mm)68
Colour black
Height (mm)46.3
Machining High-carbon
Minimum thickness (mm)20
Number of Holes 5
Outer Diameter (mm)269
Surface Painted
Thread Size 15,5
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 21,9, Brake Disc Type Vented, Centering Diameter [mm] 68, Colour black, Height [mm] 46,3, Machining High-carbon, Minimum thickness [mm] 20, Number of Holes 5, Outer Diameter [mm] 269, Surface Painted, Thread Size 15,5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.17057 AKEBONOBN-0948E AKEBONOBN-0948 APECDSK2293 ATE24012201981 ATE24112201981 BENDIX562176B BENDIX562176BC BORG & BECKBBD4263 BOSCH 0 986 478574 BOSCH0986478574 Brake ENGINEERINGDI956027 BREMBO09.B441.10 CAR142289 DELPHIBG3525 FEBI BILSTEIN23306 FERODODDF1896C FERODODDF1896C1 FIRST LINEFBD1259 FREMAXBD-6082 FTE9072633 FTE9082490 FTEBS5206 FTEBS5206B HELLA 8DD 355106-711 HELLA8DD355106711 HELLA 8DD 355121-902 HELLA8DD355121902 HELLA 8DD 355127-431 HELLA8DD355127431 JURID562176J JURID562176JC LPRA1036V MAPCO15880 METELLI23-1123C MEYLE 115 5231106/PD MEYLE1155231106PD MEYLE1155230029PD MEYLE1155231106 MINTEXMDC1420 NationalNBD1050 NK204798 NK314798 OPTIMALBS-7550C OPTIMALBS-7550 PAGID50265 QH Benelux57915 QUINTON HAZELLBDC5206 QUINTON HAZELLBSF5206 RAICAMRD00923 REMSA682210 REMYRAD2507C sbs1815204798 sbs1815314798 SWAG30923306 TEXTAR92098400 TEXTAR92098405 TEXTAR98200098401 TRISCAN 812029187C TRISCAN812029187C TRISCAN812029187 TRUSTINGDF068 VAICOV10-80077 ZIMMERMANN100.1239.20 ZIMMERMANN100.1239.52 ZIMMERMANN100123900 ZIMMERMANN100123950

OE Numbers — AUDI 4D0 615 601

B

OE Numbers — AUDI

4D0615601B
MakeModelType / Engine YearsCCkWHP
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 195 265
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 164 223
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 81 110
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 92 125
AUDI A6 C5 (4B2, 4B4) 2.7 T 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 100 136
AUDI A6 C5 (4B2, 4B4) 3.7 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 4.2 quattro 1997 – 2005 4172 220 299
AUDI A6 C5 (4B2, 4B4) 3.7 quattro 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) S6 quattro 1997 – 2005 4172 250 340
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 85 115
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 85 116
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.0 1997 – 2005 1984 96 130
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 114 155
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 184 250
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 96 130
AUDI A6 C5 (4B2, 4B4) RS6 quattro 1997 – 2005 4172 331 450
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.7 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 187 254
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 81 110
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 92 125
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 100 136
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) 3.7 quattro 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 3.7 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 4.2 quattro 1997 – 2006 4172 220 299
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) S6 quattro 1997 – 2006 4172 250 340
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 85 115
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 85 116
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) 2.0 1997 – 2006 1984 96 130
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 114 155
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 184 250
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 96 130
AUDI A6 C5 Avant (4B5, 4B6) RS6 quattro 1997 – 2006 4172 331 450
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) RS6 plus quattro 1997 – 2006 4172 353 480
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 164 223
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 140 190
AUDI A8 D2 (4D2, 4D8) 4.2 40V quattro 1994 – 2005 4172 224 305
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 231 314
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 220 299
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 180 245
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 250 340
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 228 310
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 3.3 TDI quattro 1994 – 2005 3328 165 224
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 265 360
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 175 238
AUDI A8 D2 (4D2, 4D8) 6.0 W12 quattro 1994 – 2005 5998 309 420
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 210 286
