Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4252 · SKU DF4252-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

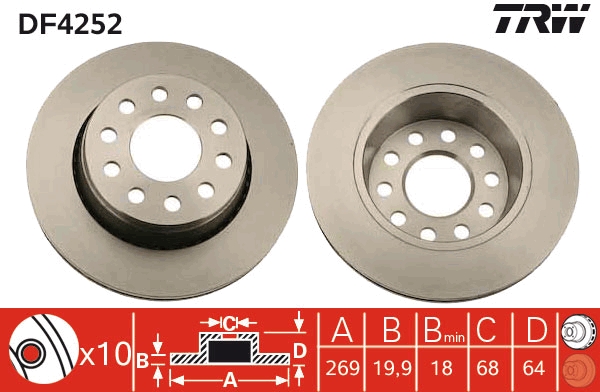

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)19.9
Brake Disc Type Vented
Centering Diameter (mm)68
Height (mm)64
Minimum thickness (mm)18
Number of Holes 10
Outer Diameter (mm)269
Thread Size 15.5
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 19,9, Brake Disc Type Vented, Centering Diameter [mm] 68, Height [mm] 64, Minimum thickness [mm] 18, Number of Holes 10, Outer Diameter [mm] 269, Thread Size 15.5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.16205 APECDSK344 BORG & BECKBBD5882S BOSCH 0 986 479689 BOSCH0986479689 DELPHIBG3031 DONPCD17262 FIRST LINEFBD820 FTE9082479 FTEBS4778 FTEBS4778B GIRLING6042522 LEMFÖRDER 1671001 LEMFÖRDER1671001 LPRA1597V MEYLE1155231115 NK204781 NK314781 OPTIMALBS-8252C OPTIMALBS-8252 PAGID53951 QUINTON HAZELLBDC4846 QUINTON HAZELLBDC5096 REMSA693010 TEXTAR92072903 TRUSTINGDF797 ZIMMERMANN100123000

OE Numbers — AUDI 4A0 615 601

B

OE Numbers — AUDI

4A0615601B
MakeModelType / Engine YearsCCkWHP
AUDI 100 C4 Avant (4A5) 2.6 quattro 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.3 E quattro 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.8 E 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) 2.3 E 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) S4 Turbo quattro 1990 – 1994 2226 169 230
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 74 100
AUDI 100 C4 Avant (4A5) 2.5 TDI 1990 – 1994 2461 85 115
AUDI 100 C4 Avant (4A5) 2.0 E 16V 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.8 E quattro 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) S4 V8 quattro 1990 – 1994 4172 206 280
AUDI 100 C4 Avant (4A5) 2.0 E 16V quattro 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.6 E quattro 1990 – 1994 2598 102 139
AUDI 100 C4 Avant (4A5) 2.0 E quattro 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.4 D 1990 – 1994 2370 60 82
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.5 TDI 1990 – 1996 2461 85 115
AUDI 100 C4 Saloon (4A2) 2.0 E 16V quattro 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.0 E 16V 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) S4 V8 quattro 1990 – 1996 4172 206 280
AUDI 100 C4 Saloon (4A2) 2.0 E quattro 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.8 E quattro 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.3 E quattro 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) S4 Turbo quattro 1990 – 1996 2226 169 230
AUDI 100 C4 Saloon (4A2) 2.0 1990 – 1996 1984 74 100
AUDI 100 C4 Saloon (4A2) 2.8 E 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.4 D 1990 – 1996 2370 60 82
AUDI 100 C4 Saloon (4A2) 2.3 E 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.0 E 1990 – 1996 1984 85 115
AUDI A6 C4 (4A2) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 (4A2) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 (4A2) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 (4A2) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 (4A2) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 (4A2) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 (4A2) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 Avant (4A5) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 Avant (4A5) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 Avant (4A5) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 Avant (4A5) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 Avant (4A5) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 Avant (4A5) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 Avant (4A5) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) S6 Plus quattro 1994 – 1998 4172 240 326
