Brake Disc

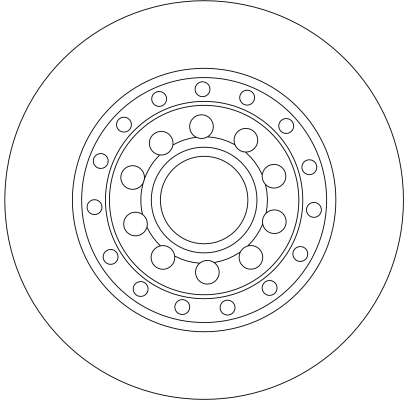

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4269 · SKU DF4269-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)68
Colour black
Height (mm)42.4
Machining High-carbon
Minimum thickness (mm)20
Number of Holes 5
Outer Diameter (mm)310
Surface Painted
Test Mark E190R-02C0185/0588
Thread Size 15,5
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 68, Colour black, Height [mm] 42,4, Machining High-carbon, Minimum thickness [mm] 20, Number of Holes 5, Outer Diameter [mm] 310, Surface Painted, Test Mark E190R-02C0185/0588, Thread Size 15,5
Fits: AUDI, VW

Interchangeable Part Numbers

A.B.S.17607 AKEBONOBN-0567E AKEBONOBN-0567 ATE24012202121 ATE24112202121 BENDIX562518BC BLUE PRINTADV184339 BORG & BECKBBD4547 BOSCH0 986 479 062 Brake ENGINEERINGDI956259 BREMBO09A26911 CAR1421044 CARHPD1044 DELPHIBG3958 DELPHIBG9957 FEBI BILSTEIN36238 FERODODDF1934 FERODODDF1934C FERODODDF1934C-D FERODODDF1934C1 FREMAXBD-3306 FTE9082210 FTE9082589 FTEBS7117 FTEBS7118 FTEBS7118B FTEBS7118HB HELLA8DD 355 109-881 HELLA8DD 355 113-331 HELLA8DD 355 113-341 HELLA8DD 355 113-342 HELLA8DD 355 121-751 HELLA8DD 355 128-651 JURID562518JC LPRA1025V METELLI23-1121C METZGER6110588 MEYLE115 523 1124/PD MEYLE1155230033PD MGAD1834 MINTEXMDC1697 MINTEXMDC2063 NationalNBD1260 NK2047126 NK3147126 OPEN PARTSBDR2349.20 OPTIMALBS-8228C OPTIMALBS-8228 PAGID54224 PAGID54523 PAGID54523PRO PILENGAV234 PILENGAV235 QH Benelux58171 QUINTON HAZELLBDC5689 QUINTON HAZELLBSF5689 RAICAMRD01129 REMSA6115510 REMYRAD1881C sbs18152047126 sbs18153147126 ST-TEMPLIN0311010610 ST-TEMPLIN0311010615 SWAG30936238 TEXTAR92122400 TEXTAR92122403 TEXTAR92152300 TEXTAR92152303 TEXTAR92152305 TRISCAN812029191 TRISCAN812029191C TRUCKTEC AUTOMOTIVE0735265 VAICOV10-80099 VALEO197725 ZIMMERMANN100.3311.52 ZIMMERMANN100331100 ZIMMERMANN100331120 ZIMMERMANN100331150

OE Numbers — AUDI

4E0 615 601 A 4E0 615 601 K

OE Numbers — SKODA

3D0 615 601 D
MakeModelType / Engine YearsCCkWHP
AUDI A8 D3 (4E2, 4E8) 3.0 TDI quattro 2002 – 2010 2967 155 211
AUDI A8 D3 (4E2, 4E8) 3.0 quattro 2002 – 2010 2976 162 220
AUDI A8 D3 (4E2, 4E8) S 8 quattro 2002 – 2010 4172 268 364
AUDI A8 D3 (4E2, 4E8) 4.2 quattro 2002 – 2010 4172 224 305
AUDI A8 D3 (4E2, 4E8) 2.8 FSI 2002 – 2010 2773 170 231
AUDI A8 D3 (4E2, 4E8) 2.8 FSI 2002 – 2010 2773 154 210
AUDI A8 D3 (4E2, 4E8) 3.0 quattro 2002 – 2010 2976 160 218
AUDI A8 D3 (4E2, 4E8) 4.2 FSI quattro 2002 – 2010 4163 257 350
AUDI A8 D3 (4E2, 4E8) 4.2 TDI quattro 2002 – 2010 4134 240 326
AUDI A8 D3 (4E2, 4E8) S8 quattro 2002 – 2010 5204 331 450
AUDI A8 D3 (4E2, 4E8) 4.2 quattro 2002 – 2010 4172 246 335
AUDI A8 D3 (4E2, 4E8) 3.0 2002 – 2010 2976 160 218
AUDI A8 D3 (4E2, 4E8) 4.2 TDI quattro 2002 – 2010 4134 235 320
AUDI A8 D3 (4E2, 4E8) 3.2 FSI quattro 2002 – 2010 3123 191 260
AUDI A8 D3 (4E2, 4E8) 3.2 FSI 2002 – 2010 3123 191 260
AUDI A8 D3 (4E2, 4E8) 3.0 TDI quattro 2002 – 2010 2967 171 233
AUDI A8 D3 (4E2, 4E8) 6.0 W12 quattro 2002 – 2010 5998 331 450
AUDI A8 D3 (4E2, 4E8) 3.0 2002 – 2010 2976 162 220
AUDI A8 D3 (4E2, 4E8) 4.0 TDI quattro 2002 – 2010 3936 202 275
AUDI A8 D3 (4E2, 4E8) 3.7 quattro 2002 – 2010 3697 206 280
