Brake Disc

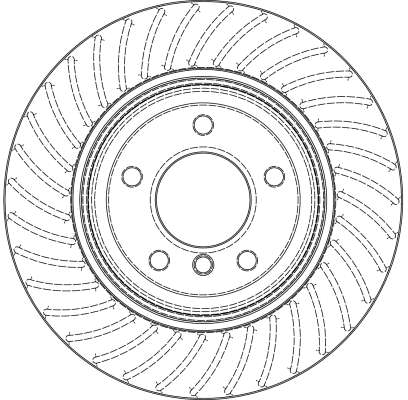

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4296 · SKU DF4296-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)19
Brake Disc Type Vented
Centering Diameter (mm)75
Height (mm)56
Minimum thickness (mm)17.4
Number of Holes 5
Outer Diameter (mm)294
Thread Size 14,7
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 19, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 56, Minimum thickness [mm] 17,4, Number of Holes 5, Outer Diameter [mm] 294, Thread Size 14,7
Fits: BMW

Interchangeable Part Numbers

A.B.S.17473 APECDSK977 ATE24011901131 ATE24111901131 BENDIX562353B BOSCH 0 986 479R34 BOSCH0986479R34 BREMBO09.C180.11 FEBI BILSTEIN43857 FERODODDF1581 FERODODDF15811 GIRLING6042962 HELLA 8DD 355112-261 HELLA8DD355112261 HELLA 8DD 355112-271 HELLA8DD355112271 HELLA 8DD 355112-272 HELLA8DD355112272 JURID562353J LPRB2027V MEYLE3155233077PD PAGID54417 PAGID54417PRO PILENGAV801 REMSA677210 REMYRAD2702C SWAG 20 943857 SWAG20943857 TEXTAR92141700 TEXTAR92141703 TEXTAR92141705 TRISCAN812011171 TRISCAN812011171C TRUSTINGDF1097 VAICOV20-80065 ZIMMERMANN150343300 ZIMMERMANN150343320

OE Numbers — BMW 1 166

165

OE Numbers — BMW

1166165 34211166165 34216855159 34216864044 6855159 6864044

OE Numbers — BMW 34 21 6 855

159

OE Numbers — BMW 34 21 6 864

044
MakeModelType / Engine YearsCCkWHP
BMW 3 (E46) 320 d 1997 – 2005 1995 110 150
BMW 3 (E46) 325 i 1997 – 2005 2494 137 186
BMW 3 (E46) 320 i 1997 – 2005 2171 125 170
BMW 3 (E46) 325 i 1997 – 2005 2494 141 192
BMW 3 (E46) 320 d 1997 – 2005 1951 95 129
BMW 3 (E46) 325 xi 1997 – 2005 2494 141 192
BMW 3 (E46) 330 xi 1997 – 2005 2979 168 228
BMW 3 (E46) 316 i 1997 – 2005 1596 77 105
BMW 3 (E46) 318 i 1997 – 2005 1995 105 143
BMW 3 (E46) 328 i 1997 – 2005 2793 142 193
BMW 3 (E46) 318 d 1997 – 2005 1951 85 116
BMW 3 (E46) 316 i 1997 – 2005 1796 85 115
BMW 3 (E46) 325 xi 1997 – 2005 2494 137 186
BMW 3 (E46) 330 d 1997 – 2005 2993 150 204
BMW 3 (E46) 330 xd 1997 – 2005 2993 150 204
BMW 3 (E46) 316 i 1997 – 2005 1596 85 115
BMW 3 (E46) 318 d 1997 – 2005 1995 85 116
BMW 3 (E46) 318 i 1997 – 2005 1995 100 136
BMW 3 (E46) 330 i 1997 – 2005 2979 170 231
BMW 3 (E46) 330 xi 1997 – 2005 2979 170 231
BMW 3 (E46) 330 xd 1997 – 2005 2926 135 184
BMW 3 (E46) 328 i 1997 – 2005 2793 144 196
BMW 3 (E46) 330 d 1997 – 2005 2926 135 184
BMW 3 (E46) 320 i 1997 – 2005 2171 120 163
BMW 3 (E46) 323 i 1997 – 2005 2494 120 163
BMW 3 (E46) 320 d 1997 – 2005 1951 100 136
BMW 3 (E46) 325 i 1997 – 2005 2494 132 179
BMW 3 (E46) 318 i 1997 – 2005 1895 87 118
BMW 3 (E46) 316 i 1997 – 2005 1895 77 105
BMW 3 (E46) 323 i 1997 – 2005 2494 125 170
BMW 3 (E46) 320 i 1997 – 2005 1990 110 150
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 132 179
BMW 3 Touring (E46) 318 d 1999 – 2005 1995 85 116
BMW 3 Touring (E46) 323 i 1999 – 2005 2494 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 120 163
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 85 116
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 125 170
BMW 3 Touring (E46) 320 i 1999 – 2005 1990 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 87 118
BMW 3 Touring (E46) 328 i 1999 – 2005 2793 142 193
BMW 3 Touring (E46) 320 d 1999 – 2005 1951 100 136
BMW 3 Touring (E46) 330 d 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xd 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xi 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 330 i 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 330 xd 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 320 d 1999 – 2005 1995 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1995 105 143
BMW 3 Touring (E46) 316 i 1999 – 2005 1796 85 115
BMW 3 Touring (E46) 318 d 1999 – 2005 1951 85 115
BMW 3 Touring (E46) 330 d 1999 – 2005 2993 150 204
