Braking System

Brake Disc

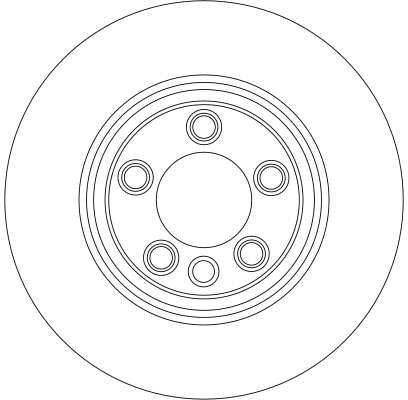

Name: Brake Disc
Brand: TRW
SKU: DF4305S-TRW
Availability: OutOfStock

Part No. DF4305S · SKU DF4305S-TRW

Front Axle Right

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	130
Brake Disc Thickness (mm)	34
Brake Disc Type Vented
Centering Diameter (mm)	85
Height (mm)	68.5
Minimum thickness (mm)	32
Number of Holes 5
Outer Diameter (mm)	350
Thread Size 15,4

Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 34, Brake Disc Type Vented, Centering Diameter [mm] 85, Height [mm] 68,5, Minimum thickness [mm] 32, Number of Holes 5, Outer Diameter [mm] 350, Thread Size 15,4
Fits: PORSCHE, VW

Interchangeable Part Numbers

FERODODDF1408DSR-1-D FERODODDF1408RC-1-D FIRST LINEFBD1412 FTEBS5476HB GIRLING6043055 METELLI230876C MEYLE115 521 1104/PD MEYLE115 521 1104 REMSA676911 TEXTAR9212 1800 TEXTAR98200121801 TRUSTINGDF560 VALEO197536 ZIMMERMANN600.3227.00

OE Numbers — PORSCHE

955 351 402 50

OE Numbers — SEAT

7L6 615 302 E

Make	Model	Type / Engine	Years	CC	kW	HP
PORSCHE	CAYENNE (9PA)	S 4.5	2002 – 2010	4511	250	340
PORSCHE	CAYENNE (9PA)	Turbo 4.5	2002 – 2010	4511	331	450
PORSCHE	CAYENNE (9PA)	3.2	2002 – 2010	3189	184	250
PORSCHE	CAYENNE (9PA)	Turbo S 4.5	2002 – 2010	4511	368	500
PORSCHE	CAYENNE (9PA)	Turbo S 4.5	2002 – 2010	4511	383	521
PORSCHE	CAYENNE (9PA)	3.6	2002 – 2010	3598	213	290
PORSCHE	CAYENNE (9PA)	S 4.8	2002 – 2010	4806	283	385
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	368	500
PORSCHE	CAYENNE (9PA)	3.2	2002 – 2010	3189	177	241
PORSCHE	CAYENNE (9PA)	GTS 4.8	2002 – 2010	4806	298	405
PORSCHE	CAYENNE (9PA)	3.0 TDI	2002 – 2010	2967	176	240
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	404	550
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	397	540
PORSCHE	CAYENNE (9PA)	Turbo 4.8	2002 – 2010	4806	373	507
PORSCHE	CAYENNE (9PA)	S 4.5	2002 – 2010	4511	184	250
