Braking System

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF4333-TRW
Price: 8700.00 PHP
Availability: InStock

Part No. DF4333 · SKU DF4333-TRW

Rear Axle

₱8,700.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

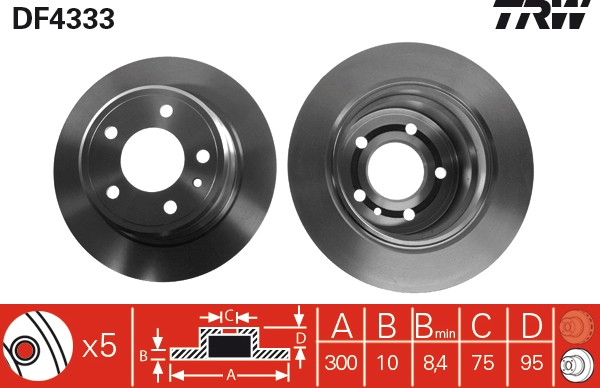

Specifications

Bolt Hole Circle Ø (mm)	120
Brake Disc Thickness (mm)	10
Brake Disc Type solid
Centering Diameter (mm)	75
Colour black
Drum diameter (mm)	180
Height (mm)	95
Minimum thickness (mm)	8.4
Number of Holes 5
Outer Diameter (mm)	300
Surface Painted
Test Mark E1 90R-02 C0204/0741
Thread Size 15

Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 180, Height [mm] 95, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 300, Surface Painted, Test Mark E1 90R-02 C0204/0741, Thread Size 15
Fits: BMW

Supplier Cross-References

DELPHIBG3038 TEXTAR92067500 ATE24011002621 BREMBO8955610 TRWDF4333 BOSCH0986479V37

Interchangeable Part Numbers

A.B.S.16254 ACDelcoAC2595D ATE24111002621 BENDIX561991B Brake ENGINEERINGDI955244 BREMBO08955610 CAR142072 CARHPD072 FEBI BILSTEIN43808 FERODODDF713 FIRST LINEFBD582 FTEBS4523 FTEBS4523H GIRLING6043334 HELLA8DD 355 103-791 JURID561991J JURID561991JC MAGNETI MARELLI351067250500 METELLI23-1738C MGAD1519 MINTEXMDC1203 NationalNBD633 NK201552 NK311552 OPTIMALBS-7592C OPTIMALBS-7592 PAGID50438 QH Benelux57582 QUINTON HAZELLBDC4523 QUINTON HAZELLBSF4523 REMSA677900 ROULUNDS RUBBERD2595 SWAG20 94 3808 TRISCAN812011154 TRUSTINGDF768 WOKINGP677900 ZIMMERMANN150127600

OE Numbers — BMW

1 158 576 34 21 1 158 576

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	5 (E34)	520 i 24V	1987 – 1995	1990	110	150
BMW	5 (E34)	518 i	1987 – 1995	1796	85	115
BMW	5 (E34)	518 i	1987 – 1995	1796	83	113
BMW	5 (E34)	525 td	1987 – 1995	2497	85	115
BMW	5 (E34)	520 i	1987 – 1995	1990	95	129
BMW	5 (E34)	540 i V8	1987 – 1995	3982	210	286
BMW	5 (E34)	M5	1987 – 1995	3795	250	340
BMW	5 (E34)	M5	1987 – 1995	3535	232	315
BMW	5 (E34)	535 i	1987 – 1995	3430	155	211
BMW	5 (E34)	530 i V8	1987 – 1995	2997	160	218
BMW	5 (E34)	530 i	1987 – 1995	2986	138	188
BMW	5 (E34)	525 tds	1987 – 1995	2497	105	143
BMW	5 (E34)	525 iX 24V	1987 – 1995	2494	141	192
BMW	5 (E34)	525 i 24V	1987 – 1995	2494	141	192
BMW	5 (E34)	525 i	1987 – 1995	2494	125	170
BMW	5 (E34)	524 td	1987 – 1995	2443	85	115
BMW	5 Touring (E34)	518 i	1991 – 1996	1796	83	113
BMW	5 Touring (E34)	525 td	1991 – 1996	2497	85	115
BMW	5 Touring (E34)	518 i	1991 – 1996	1796	85	115
BMW	5 Touring (E34)	M5	1991 – 1996	3795	250	340
BMW	5 Touring (E34)	518 g	1991 – 1996	1796	74	101
BMW	5 Touring (E34)	540 i	1991 – 1996	3982	210	286
BMW	5 Touring (E34)	530 i	1991 – 1996	2997	160	218
BMW	5 Touring (E34)	525 tds	1991 – 1996	2497	105	143
BMW	5 Touring (E34)	525 ix	1991 – 1996	2494	141	192
BMW	5 Touring (E34)	525 i	1991 – 1996	2494	141	192
BMW	5 Touring (E34)	520 i	1991 – 1996	1990	110	150
