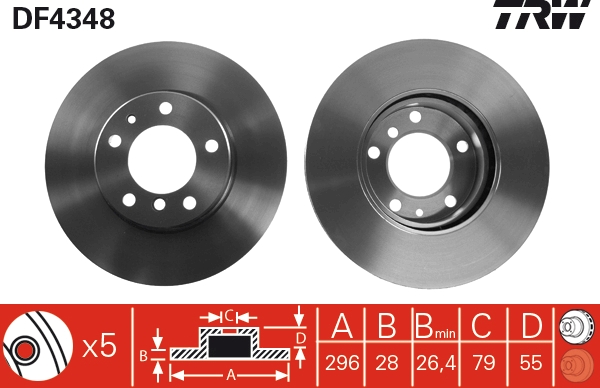

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4348 · SKU DF4348-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)104
Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)79
Colour black
Height (mm)55
Minimum thickness (mm)26.4
Number of Holes 5
Outer Diameter (mm)296
Surface Painted
Test Mark E1 90R-02 C0176/0492
Thread Size 14,5
Bolt Hole Circle Ø [mm] 104, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 79, Colour black, Height [mm] 55, Minimum thickness [mm] 26,4, Number of Holes 5, Outer Diameter [mm] 296, Surface Painted, Test Mark E1 90R-02 C0176/0492, Thread Size 14,5
Fits: BMW

Interchangeable Part Numbers

A.B.S.16253 A.P.24948 ACDelcoAC2594D APECDSK350 ATE24012801221 ATE24112801221 BENDIX561990B BORG & BECKBBD5879S BOSCH 0 986 479V38 BOSCH0986479V38 Brake ENGINEERINGDI955243 BREMBO09711510 CAR142074 CARHPD074 DELPHIBG3037 FEBI BILSTEIN43862 FERODODDF712 FERODODDF7121 FERODODRF712 FIRST LINEFBD581 FTEBS4522 GIRLING6043481 HELLA 8DD 355103-781 HELLA8DD355103781 JURID561990J METELLI230808 METZGER1065024 MINTEXMDC1202 NationalNBD632 NK201551 NK311551 OPTIMALBS-7620C OPTIMALBS-7620 PAGID50437 PILENGAV815 QH Benelux57581 QUINTON HAZELLBDC4522 QUINTON HAZELLBSF4522 REMSA677810 ROULUNDS RUBBERD2594 SWAG 20 943862 SWAG20943862 TEXTAR92067400 TRISCAN812011153 TRUSTINGDF996 WOKINGP677810 ZIMMERMANN150127500 ZIMMERMANN150127550

OE Numbers — BMW 1 158

550

OE Numbers — BMW

1158550 1165263 34111158550 34111165263

OE Numbers — BMW 1 165

263
MakeModelType / Engine YearsCCkWHP
BMW 5 (E34) 520 i 24V 1987 – 1995 1990 110 150
BMW 5 (E34) 518 i 1987 – 1995 1796 85 115
BMW 5 (E34) 518 i 1987 – 1995 1796 83 113
BMW 5 (E34) 525 td 1987 – 1995 2497 85 115
BMW 5 (E34) 520 i 1987 – 1995 1990 95 129
BMW 5 (E34) 540 i V8 1987 – 1995 3982 210 286
BMW 5 (E34) M5 1987 – 1995 3795 250 340
BMW 5 (E34) M5 1987 – 1995 3535 232 315
BMW 5 (E34) 535 i 1987 – 1995 3430 155 211
BMW 5 (E34) 530 i V8 1987 – 1995 2997 160 218
BMW 5 (E34) 530 i 1987 – 1995 2986 138 188
BMW 5 (E34) 525 tds 1987 – 1995 2497 105 143
BMW 5 (E34) 525 iX 24V 1987 – 1995 2494 141 192
BMW 5 (E34) 525 i 24V 1987 – 1995 2494 141 192
BMW 5 (E34) 525 i 1987 – 1995 2494 125 170
BMW 5 (E34) 524 td 1987 – 1995 2443 85 115
BMW 5 Touring (E34) 518 i 1991 – 1996 1796 83 113
BMW 5 Touring (E34) 525 td 1991 – 1996 2497 85 115
BMW 5 Touring (E34) 518 i 1991 – 1996 1796 85 115
BMW 5 Touring (E34) M5 1991 – 1996 3795 250 340
BMW 5 Touring (E34) 518 g 1991 – 1996 1796 74 101
BMW 5 Touring (E34) 540 i 1991 – 1996 3982 210 286
BMW 5 Touring (E34) 530 i 1991 – 1996 2997 160 218
BMW 5 Touring (E34) 525 tds 1991 – 1996 2497 105 143
BMW 5 Touring (E34) 525 ix 1991 – 1996 2494 141 192
BMW 5 Touring (E34) 525 i 1991 – 1996 2494 141 192
BMW 5 Touring (E34) 520 i 1991 – 1996 1990 110 150
