Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

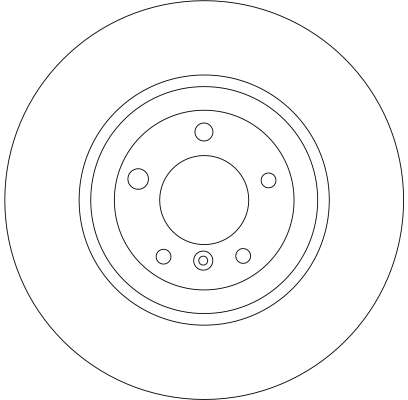

Brake Disc

Part No. DF4349S · SKU DF4349S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)115
Brake Disc Thickness (mm)30
Brake Disc Type Vented
Centering Diameter (mm)79
Colour black
Height (mm)81
Machining High-carbon
Minimum thickness (mm)28
Number of Holes 5
Outer Diameter (mm)348
Surface Painted
Test Mark E1 90R-02 C0176/0633
Thread Size 14,5
Bolt Hole Circle Ø [mm] 115, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 79, Colour black, Height [mm] 81, Machining High-carbon, Minimum thickness [mm] 28, Number of Holes 5, Outer Diameter [mm] 348, Surface Painted, Test Mark E1 90R-02 C0176/0633, Thread Size 14,5
Fits: BMW

Interchangeable Part Numbers

A.B.S.17582 A.P.24889 APECDSK2291 ATE24013001181 ATE24013001862 ATE24113001181 ATE24113001862 BENDIX562340B BENDIX562401B BENDIX562401BC BORG & BECKBBD5915S BOSCH0 986 479 003 BOSCH0 986 479 584 Brake ENGINEERINGDI956268S BREMBO09935510 BREMBO09935511 CAR142069 CARHPD069 DELPHIBG9788 FEBI BILSTEIN24466 FERODODDF1245 FERODODDF1245C FERODODDF1245C-1-D FERODODDF1245C1 FERODODDF1701 FERODODDF17011 FERODODDF1701C FERODODDF1701C1 FIRST LINEFBD1443 FTE9071192 FTE9081194 FTEBS7176HB FTEBS7226HB HELLA8DD 355 109-971 HELLA8DD 355 109-981 HELLA8DD 355 109-982 HELLA8DD 355 112-281 HELLA8DD 355 112-291 HELLA8DD 355 121-131 HELLA8DD 355 129-781 JURID562340J JURID562401J JURID562401JC LEMFÖRDER30805 01 LEMFÖRDER30808 01 LPRB2014V MAGNETI MARELLI351066120500 METELLI230853 METELLI230853C MEYLE315 521 3059/PD MEYLE315 521 3059 MEYLE3835213059PD MGAD1485 MINTEXMDC1792 NationalNBD1219 NK201560 NK311560 NK341560 OPTIMALBS-7572HC OPTIMALBS-7572 PAGID54229 PAGID54229PRO PAGID54418 PAGID54418PRO PEX140800 PILENGAV817 QH Benelux58161 QUINTON HAZELLBDC5649 QUINTON HAZELLBSF5649 REMSA6107810 REMYRAD2230C ST-TEMPLIN0311012080 ST-TEMPLIN0311012085 SWAG20924466 TEXTAR92122900 TEXTAR92122903 TEXTAR92122905 TEXTAR92141800 TEXTAR92141803 TRISCAN812011161 TRISCAN812011161C TRISCAN812011176C TRUCKTEC AUTOMOTIVE0834069 TRUSTINGDF075 VAICOV20-80050 VALEO197364 ZIMMERMANN150340800 ZIMMERMANN150340820 ZIMMERMANN150340852 ZIMMERMANN150343420 ZIMMERMANN150343452 ZIMMERMANN150343475

OE Numbers — BMW

34 11 6 750 267 34 11 6 864 057 6 750 267 6 864 057
MakeModelType / Engine YearsCCkWHP
BMW 7 (E65, E66, E67) 730 Ld 2001 – 2009 2993 170 231
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 150 204
BMW 7 (E65, E66, E67) 745 i 2001 – 2009 4398 241 328
BMW 7 (E65, E66, E67) 745 i 2001 – 2009 4398 242 329
BMW 7 (E65, E66, E67) 760 i 2001 – 2009 5972 320 435
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2996 184 250
BMW 7 (E65, E66, E67) 735 i 2001 – 2009 3999 225 306
BMW 7 (E65, E66, E67) 745 d 2001 – 2009 4423 220 300
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2996 190 258
BMW 7 (E65, E66, E67) 745 d 2001 – 2009 4423 242 329
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 155 211
BMW 7 (E65, E66, E67) 750 i, Li 2001 – 2009 4799 270 367
BMW 7 (E65, E66, E67) 740 i, Li 2001 – 2009 4000 225 306
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2979 170 231
BMW 7 (E65, E66, E67) 760 i, Li 2001 – 2009 5972 327 445
BMW 7 (E65, E66, E67) 740 d 2001 – 2009 3901 190 258
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 160 218
BMW 7 (E65, E66, E67) 745 i, Li 2001 – 2009 4398 245 333
BMW 7 (E65, E66, E67) 735 i, Li 2001 – 2009 3600 200 272
