Brake Disc

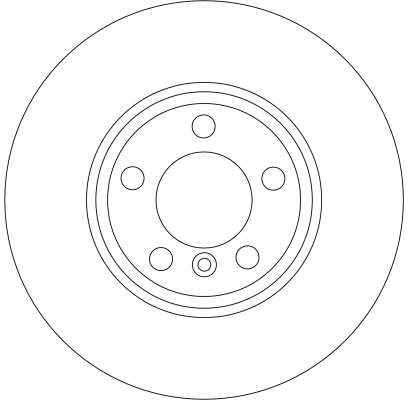

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4361 · SKU DF4361-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)30
Brake Disc Type Vented
Centering Diameter (mm)79
Colour black
Height (mm)77
Machining High-carbon
Minimum thickness (mm)28.4
Number of Holes 5
Outer Diameter (mm)324
Surface Painted
Test Mark E190R-02C0176/0556
Thread Size 14,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 79, Colour black, Height [mm] 77, Machining High-carbon, Minimum thickness [mm] 28,4, Number of Holes 5, Outer Diameter [mm] 324, Surface Painted, Test Mark E190R-02C0176/0556, Thread Size 14,5
Fits: BMW, BMW (BRILLIANCE)

Interchangeable Part Numbers

A.B.S.17532 A.P.24885E APECDSK2008 ATE24013001731 ATE24033001731 ATE24113001731 BENDIX562332B BENDIX562397B BENDIX562397BC BORG & BECKBBD5766S BOSCH 0 986 479115 BOSCH0986479115 BOSCH 0 986 479D39 BOSCH0986479D39 BOSCH 0 986 AB6512 BOSCH0986AB6512 BOSCH0986AB5943 BOSCH F 026 A09340 BOSCHF026A09340 Brake ENGINEERINGDI956261 BREMBO09.9172.14 BREMBO09917211 CAR1421065 CARHPD1065 DELPHIBG9871 DELPHIBG9871C FEBI BILSTEIN24343 FERODODDF1242 FERODODDF1242C FERODODDF1242C1 FIRST LINEFBD1440 FTE9071037 FTE9081013 FTE9082577 FTEBS5458 FTEBS5458HB HELLA 8DD 355109-911 HELLA8DD355109911 HELLA 8DD 355109-921 HELLA8DD355109921 HELLA 8DD 355109-922 HELLA8DD355109922 HELLA 8DD 355123-791 HELLA8DD355123791 HELLA 8DD 355128-111 HELLA8DD355128111 JURID562332J JURID562397J JURID562397JC LEMFÖRDER 3080601 LEMFÖRDER3080601 LEMFÖRDER3081401 LPRB2037V LPRB2037VR MAGNETI MARELLI351065920500 MAGNETI MARELLI360704025900 METELLI230805C METZGER24885V MEYLE 315 5213060/PD MEYLE3155213060PD MEYLE 315 5213060 MEYLE3155213060 MEYLE3835213060PD MGAD1483 MINTEXMDC1659 NationalNBD1263 NK201563 NK311563 NK341563 OPTIMALBS-7578HC OPTIMALBS-7578 PAGID54226 PAGID54226PRO PEX140799 PILENGAV818 QH Benelux58159 QUINTON HAZELLBDC5458 QUINTON HAZELLBSF5458 REMSA685310 ST-TEMPLIN0311012200 ST-TEMPLIN0311012205 SWAG20924343 TEXTAR92122600 TEXTAR92122603 TEXTAR92122605 TRISCAN812011158 TRISCAN812011158C TRUCKTEC AUTOMOTIVE0834070 TRUSTINGDF1076 VAICOV20-80051 VALEO197193 WOKINGP685310 ZIMMERMANN150340300 ZIMMERMANN150340320 ZIMMERMANN150340350 ZIMMERMANN150340352

OE Numbers — BMW 34 11 6 753

221

OE Numbers — BMW

34116753221 34116767269 34116864905 34116864906 6753221 6767269 6864905 6864906

OE Numbers — BMW 34 11 6 767

269

OE Numbers — BMW 34 11 6 864

905 906
MakeModelType / Engine YearsCCkWHP
BMW 5 (E60) 525 i 2001 – 2010 2996 155 211
BMW 5 (E60) 528 i 2001 – 2010 2996 172 234
BMW 5 (E60) 530 i 2001 – 2010 2979 168 228
BMW 5 (E60) 528 i xDrive 2001 – 2010 2996 172 234
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 520 d 2001 – 2010 1995 125 170
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 525 i 2001 – 2010 2494 137 186
BMW 5 (E60) 530 i 2001 – 2010 2996 168 228
BMW 5 (E60) 520 i 2001 – 2010 2171 125 170
BMW 5 (E60) 530 i 2001 – 2010 2979 170 231
BMW 5 (E60) 530 d 2001 – 2010 2993 160 218
BMW 5 (E60) 525 i 2001 – 2010 2494 141 192
BMW 5 (E60) 545 i 2001 – 2010 4398 245 333
BMW 5 (E60) 525 d 2001 – 2010 2497 130 177
BMW 5 (E60) M5 2001 – 2010 4999 373 507
BMW 5 (E60) 535 d 2001 – 2010 2993 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 190 258
BMW 5 (E60) 523 i 2001 – 2010 2497 130 177
BMW 5 (E60) 525 i 2001 – 2010 2497 160 218
BMW 5 (E60) 540 i 2001 – 2010 4000 225 306
BMW 5 (E60) 550 i 2001 – 2010 4799 270 367
BMW 5 (E60) 520 d 2001 – 2010 1995 120 163
BMW 5 (E60) 530 d 2001 – 2010 2993 170 231
BMW 5 (E60) 525 xi 2001 – 2010 2497 160 218
BMW 5 (E60) 530 xi 2001 – 2010 2996 190 258
BMW 5 (E60) 530 xd 2001 – 2010 2993 170 231
BMW 5 (E60) 525 d 2001 – 2010 2497 120 163
BMW 5 (E60) 520 d 2001 – 2010 1995 110 150
BMW 5 (E60) 535 d 2001 – 2010 2993 210 286
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 525 xi 2001 – 2010 2996 160 218
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 525 d 2001 – 2010 2993 145 197
BMW 5 (E60) 530 d 2001 – 2010 2993 173 235
BMW 5 (E60) 530 xd 2001 – 2010 2993 173 235
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 187 254
BMW 5 (E60) 535 i 2001 – 2010 2979 225 306
BMW 5 (E60) 525 xd 2001 – 2010 2993 145 197
BMW 5 (E60) 520 d 2001 – 2010 1995 130 177
BMW 5 (E60) 520 i 2001 – 2010 1995 125 170
BMW 5 (E60) 520 i 2001 – 2010 1995 120 163
BMW 5 (E60) 525 i xDrive 2001 – 2010 2996 160 218
BMW 5 (E60) 530 i xDrive 2001 – 2010 2996 200 272
BMW 5 (E60) 525 d xDrive 2001 – 2010 2993 145 197
BMW 5 (E60) 530 d xDrive 2001 – 2010 2993 173 235
BMW 5 (E60) 545 i 2001 – 2010 4398 242 329
BMW 5 (E60) 550 i 2001 – 2010 4799 261 355
BMW 5 (E60) 535 i xDrive 2001 – 2010 2979 224 305
BMW 5 (E60) 530 d 2001 – 2010 2993 155 211
BMW 5 (E60) 520 i 2001 – 2010 1995 115 156
BMW 5 (E60) 540 i 2001 – 2010 4000 220 299
BMW 5 (E60) 535 i 2001 – 2010 2979 224 305
BMW 5 (E60) 535 xi 2001 – 2010 2979 225 306
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 525 i 2001 – 2010 2497 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2494 141 192
BMW 5 Touring (E61) 545 i 2004 – 2010 4398 245 333
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 160 218
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 200 272
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 550 i 2004 – 2010 4799 270 367
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 525 xi 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 120 163
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 110 150
BMW 5 Touring (E61) 525 d 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 525 xi 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 210 286
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) M5 2004 – 2010 4999 373 507
BMW 5 Touring (E61) 525 xd 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 130 177
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 125 170
BMW 5 Touring (E61) 525 i xDrive 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 530 i xDrive 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 d xDrive 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d xDrive 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 535 xi 2004 – 2010 2979 224 305
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 155 211
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 155 211
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 6 (E63) 630 Ci 2003 – 2010 2979 190 258
BMW 6 (E63) 645 Ci 2003 – 2010 4398 245 333
BMW 6 (E63) 630 i 2003 – 2010 2996 190 258
BMW 6 (E63) 650 i 2003 – 2010 4799 270 367
BMW 6 (E63) M 2003 – 2010 4999 373 507
BMW 6 (E63) 630 i 2003 – 2010 2996 200 272
BMW 6 (E63) 635 d 2003 – 2010 2993 210 286
BMW 6 (E63) 645 Ci 2003 – 2010 4398 242 329
BMW 6 (E63) 630 i 2003 – 2010 2996 200 272
BMW 6 Convertible (E64) 645 Ci 2004 – 2010 4398 245 333
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 190 258
BMW 6 Convertible (E64) 650 i 2004 – 2010 4799 270 367
BMW 6 Convertible (E64) M6 2004 – 2010 4999 373 507
BMW 6 Convertible (E64) 635 d 2004 – 2010 2993 210 286
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 200 272
BMW 6 Convertible (E64) 645 Ci 2004 – 2010 4398 242 329
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 200 272
