TRW
Braking System

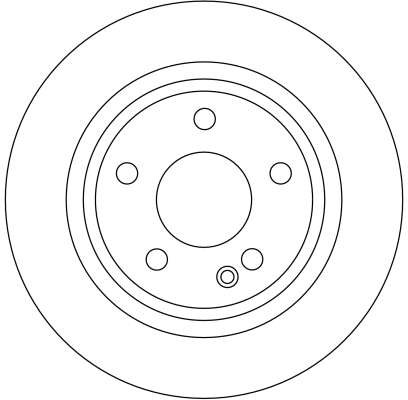

Brake Disc
Part No.
DF4383
·
SKU
DF4383-TRW
Front Axle
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 112 |
| Brake Disc Thickness (mm) | 12 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 67 |
| Colour black |
| Height (mm) | 44.6 |
| Minimum thickness (mm) | 10 |
| Number of Holes 5 |
| Outer Diameter (mm) | 276 |
| Surface Painted |
| Test Mark E1 90R-02 C0190/0261 |
| Thread Size 15,4 |
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Height [mm] 44,6, Minimum thickness [mm] 10, Number of Holes 5, Outer Diameter [mm] 276, Surface Painted, Test Mark E1 90R-02 C0190/0261, Thread Size 15,4
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
A.B.S.08.8679.11
A.B.S.17644
A.P.14824 V
A.P.14824E
APECDSK2276
ATE24011201671
ATE24031201671
BENDIX562309B
BENDIX562309BC
BLUE PRINTADU174325
BORG & BECKBBD4484
BOSCH0 986 479 185
Brake ENGINEERINGDI956512
BREMBO08.8679.14
CAR1421166
CARHPD1166
DELPHIBG3840
DELPHIBG3840C-18B1
DONPCD11302
FEBI BILSTEIN28634
FERODODDF1219
FERODODDF12191
FERODODDF1219C
FERODODDF1219C-1-D
FIRST LINEFBD1532
FREMAXBD-0118
FTE9072241
FTE9082159
FTE9082573
FTEBS5438
FTEBS5438B
FTEBS5438HB
HELLA8DD 355 111-031
HELLA8DD 355 111-041
HELLA8DD 355 128-261
JURID562309J
JURID562309JC
LEMFÖRDER30849 01
LPRM2015P
LPRM2015PR
MAGNETI MARELLI351286010500
MAPCO25800
METELLI230830
METELLI230830C
METZGER6110445
MEYLE015 521 2086/PD
MEYLE015 521 2086
MEYLE0155210037
MEYLE0155210037PD
MGAD1496
MINTEXMDC1751
NationalNBD1398
NK203371
NK313371
OPEN PARTSBDA2173.10
OPEN PARTSBDR2173.10
OPTIMALBS-7820C
OPTIMALBS-7820
PAGID54318
PAGID54318PRO
PILENGA5902
QH Benelux58267
QUINTON HAZELL667400
QUINTON HAZELLBDC5438
QUINTON HAZELLBSF5438
REMYRAD1304C
sbs1815203371
sbs1815313371
ST-TEMPLIN0311020950
ST-TEMPLIN0311020955
SWAG10928634
TEXTAR92131800
TEXTAR92131803
TRISCAN8120 23169C
TRISCAN812023169
TRUCKTEC AUTOMOTIVE0235156
TRUSTINGDF232
VAICOV30-40018
VALEO186798
WOKINGP667400
ZIMMERMANN400.3641.00
ZIMMERMANN400364120
OE Numbers — MERCEDES-BENZ
169 421 00 12
A1694210012
| Make | Model | Type / Engine |
Years | CC | kW | HP |
| MERCEDES-BENZ |
A-CLASS (W169) |
E-CELL (169.090) |
2004 – 2012 |
— |
50 |
68 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 200 CDI (169.308, 169.008) |
2004 – 2012 |
1991 |
100 |
136 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 170 (169.032, 169.332) |
2004 – 2012 |
1699 |
85 |
116 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 150 (169.031, 169.331) |
2004 – 2012 |
1498 |
70 |
95 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 200 (169.033, 169.333) |
2004 – 2012 |
2034 |
100 |
136 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 160 CDI (169.006, 169.306) |
2004 – 2012 |
1991 |
60 |
82 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 180 CDI (169.007, 169.307) |
2004 – 2012 |
1991 |
80 |
109 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 200 CDI (169.008, 169.308) |
2004 – 2012 |
1991 |
103 |
140 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 200 TURBO (169.034, 169.334) |
2004 – 2012 |
2034 |
142 |
193 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 160 (169.031, 169.331) |
2004 – 2012 |
1498 |
70 |
95 |
| MERCEDES-BENZ |
A-CLASS (W169) |
A 180 (169.032, 169.332) |
2004 – 2012 |
1699 |
85 |
116 |
