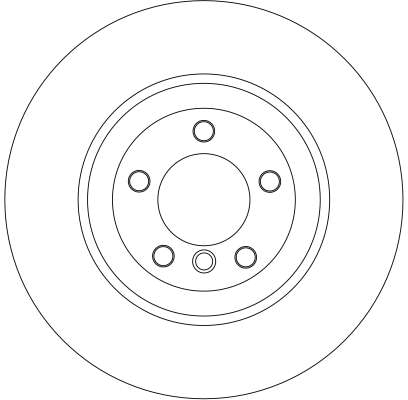

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4389S · SKU DF4389S-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)24
Brake Disc Type Vented
Centering Diameter (mm)79
Colour black
Height (mm)67
Minimum thickness (mm)22.4
Number of Holes 5
Outer Diameter (mm)345
Surface Painted
Thread Size 16,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 79, Colour black, Height [mm] 67, Minimum thickness [mm] 22,4, Number of Holes 5, Outer Diameter [mm] 345, Surface Painted, Thread Size 16,5
Fits: BMW

Interchangeable Part Numbers

A.B.S.17472 A.P.24894 APECDSK2383 ATE24012401771 ATE24012402012 ATE24112401771 ATE24112402012 BENDIX562437B BORG & BECKBBD5768S BOSCH 0 986 479005 BOSCH0986479005 BOSCH0986479585 Brake ENGINEERINGDI956269S BREMBO09.9352.10 BREMBO09935211 CAR142071 CARHPD071 DBA AustraliaDBA3225E DELPHIBG9789 FEBI BILSTEIN24807 FERODODDF1247 FERODODDF1247C FERODODDF1247C1 FTE9081198 FTEBS7207 FTEBS7207HB GIRLING6043895 HELLA 8DD 355110-031 HELLA8DD355110031 HELLA 8DD 355110-041 HELLA8DD355110041 HELLA 8DD 355110-042 HELLA8DD355110042 HELLA 8DD 355122-051 HELLA8DD355122051 JURID562437J JURID562437JC LEMFÖRDER 3081701 LEMFÖRDER3081701 LPRB2015V MAGNETI MARELLI351066760500 MEYLE 315 5233061/PD MEYLE3155233061PD MEYLE 315 5233061 MEYLE3155233061 MEYLE3155230046 MEYLE3155230046PD MGAD1487 MINTEXMDC1777 NationalNBD1220 NK201579 NK311579 PAGID54232 PAGID54232PRO PILENGAV806 QH Benelux58165 QUINTON HAZELLBDC5652 QUINTON HAZELLBSF5652 REMSA685210 REMYRAD2528C SWAG20924807 TEXTAR92123200 TEXTAR92123203 TEXTAR92123205 TRISCAN812011162 TRISCAN812011162C TRUCKTEC AUTOMOTIVE0834078 VAICOV20-80060 VALEO197363 WOKINGP685210 ZIMMERMANN150341100 ZIMMERMANN150341120 ZIMMERMANN150341152

OE Numbers — BMW 1 166

129

OE Numbers — BMW

1166129 34211166129 34216864046 6864046

OE Numbers — BMW 34 21 6 864

046
MakeModelType / Engine YearsCCkWHP
BMW 7 (E65, E66, E67) 730 Ld 2001 – 2009 2993 170 231
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 150 204
BMW 7 (E65, E66, E67) 745 i 2001 – 2009 4398 241 328
BMW 7 (E65, E66, E67) 745 i 2001 – 2009 4398 242 329
BMW 7 (E65, E66, E67) 760 i 2001 – 2009 5972 320 435
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2996 184 250
BMW 7 (E65, E66, E67) 735 i 2001 – 2009 3999 225 306
BMW 7 (E65, E66, E67) 745 d 2001 – 2009 4423 220 300
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2996 190 258
BMW 7 (E65, E66, E67) 745 d 2001 – 2009 4423 242 329
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 155 211
BMW 7 (E65, E66, E67) 750 i, Li 2001 – 2009 4799 270 367
BMW 7 (E65, E66, E67) 740 i, Li 2001 – 2009 4000 225 306
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2979 170 231
BMW 7 (E65, E66, E67) 760 i, Li 2001 – 2009 5972 327 445
BMW 7 (E65, E66, E67) 740 d 2001 – 2009 3901 190 258
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 160 218
BMW 7 (E65, E66, E67) 745 i, Li 2001 – 2009 4398 245 333
BMW 7 (E65, E66, E67) 735 i, Li 2001 – 2009 3600 200 272
