Braking System

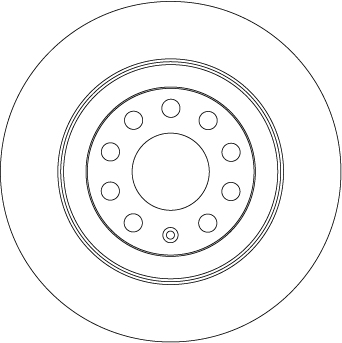

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF4434-TRW
Price: 14200.00 PHP
Availability: InStock

Part No. DF4434 · SKU DF4434-TRW

Rear Axle

₱14,200.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	112
Brake Disc Thickness (mm)	12
Brake Disc Type solid
Centering Diameter (mm)	68
Colour black
Height (mm)	49.2
Minimum thickness (mm)	10
Number of Holes 9
Outer Diameter (mm)	302
Supplementary Article/Info 2 with bolts/screws
Surface Painted
Test Mark E190R-02C0190/0599
Thread Size 15,5

Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 68, Colour black, Height [mm] 49,2, Minimum thickness [mm] 10, Number of Holes 9, Outer Diameter [mm] 302, Supplementary Article/Info 2 with bolts/screws, Surface Painted, Test Mark E190R-02C0190/0599, Thread Size 15,5
Fits: AUDI

Supplier Cross-References

TEXTAR92132503 FERODODDF1307 ATE24031201591 BREMBO8884320 TRWDF4434 LEMFÖRDER30854

Interchangeable Part Numbers

A.B.S.08.8843.21 A.B.S.17629 A.P.14850 A.P.14850 V A.P.14850 X AKEBONOBN-0175E AKEBONOBN-0175 AKRON-MALÒ1110248 APECDSK2290 ATE24.0112-0159.1 BENDIX562438B BENDIX562438BC BLUE PRINTADV184347 BORG & BECKBBD4507 BOSCH0 986 479 257 BOSCH0 986 AB6 118 BOSCH0 986 T16 118 Brake ENGINEERINGDI956497 BREMBO08884320 BREMBO0888432X CAR1421130 CARHPD1130 DELPHIBG3956 DELPHIBG3956C DELPHIBG3956C-18B1 DONPCD10492 FEBI BILSTEIN26657 FERODODDF13071 FERODODDF1307C FERODODDF1307C-D FERODODDF1307X FREMAXBD-5313 FTE9072550 FTE9082072 FTE9082586 FTEBS7093 FTEBS7093B FTEBS7093HB HELLA8DD 355 111-171 HELLA8DD 355 111-181 HELLA8DD 355 111-182 HELLA8DD 355 122-141 ICER78BD5313-2 JURID562438J JURID562438JC KAWE6969 00 LEMFÖRDER30854 01 LPRA1015P LPRA1015PR MAGNETI MARELLI360406054600 MAGNETI MARELLI360406054601 MAGNETI MARELLI360406054602 MAGNETI MARELLI361302040279 MAPCO25872 METELLI230865 METELLI230865C METZGER6110136 MEYLE115 523 1096/PD MEYLE115 523 1096 MEYLE1155230027 MEYLE1155230027PD MGAD1600 MINTEXMDC1744 MINTEXMDC1744C NationalNBD1381 NK2047109 NK3147109 Omnicraft2143294 OPEN PARTSBDR2178.10 OPTIMALBS-7542C OPTIMALBS-7542 PAGID54325 PAGID54325PRO PEX140832 PEX140832N PILENGA5880 QH Benelux58303 QUINTON HAZELLBDC5547 RAICAMRD01115 REMYRAD1282C sbs18152047109 sbs18153147109 ST-TEMPLIN0311010530 ST-TEMPLIN0311010535 SWAG30221201 SWAG32926657 TEXTAR92132500 TEXTAR92132505 TRISCAN8120291004 TRISCAN8120291004C VAICOV10-40084 VALEO197125 VALEO197426 VALEO297125 VALEO672542 WOKINGD6969.00 ZIMMERMANN100.3320.00 ZIMMERMANN100.3320.52 ZIMMERMANN100332020

OE Numbers — AUDI

4F0 615 601 E

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A6 C6 (4F2)	2.8 FSI	2004 – 2011	2773	154	210
AUDI	A6 C6 (4F2)	2.0 TFSI	2004 – 2011	1984	125	170
AUDI	A6 C6 (4F2)	2.0 TDI	2004 – 2011	1968	100	136
AUDI	A6 C6 (4F2)	3.0 TFSI quattro	2004 – 2011	2995	213	290
AUDI	A6 C6 (4F2)	2.7 TDI quattro	2004 – 2011	2698	120	163
AUDI	A6 C6 (4F2)	3.0 TDI quattro	2004 – 2011	2967	176	240
AUDI	A6 C6 (4F2)	S6 quattro	2004 – 2011	5204	320	435
AUDI	A6 C6 (4F2)	2.8 FSI	2004 – 2011	2773	162	220
AUDI	A6 C6 (4F2)	4.2 FSI quattro	2004 – 2011	4163	257	350
AUDI	A6 C6 (4F2)	3.0 TDI quattro	2004 – 2011	2967	171	233
AUDI	A6 C6 (4F2)	3.0 TFSI quattro	2004 – 2011	2995	220	299
AUDI	A6 C6 (4F2)	2.8 FSI quattro	2004 – 2011	2773	162	220
AUDI	A6 C6 (4F2)	2.7 TDI quattro	2004 – 2011	2698	132	180
AUDI	A6 C6 (4F2)	2.8 FSI quattro	2004 – 2011	2773	140	190
AUDI	A6 C6 (4F2)	3.0 quattro	2004 – 2011	2976	160	218
AUDI	A6 C6 (4F2)	2.8 FSI	2004 – 2011	2773	140	190
AUDI	A6 C6 (4F2)	3.2 FSI quattro	2004 – 2011	3123	183	249
AUDI	A6 C6 (4F2)	2.8 FSI quattro	2004 – 2011	2773	154	210
AUDI	A6 C6 (4F2)	2.7 TDI quattro	2004 – 2011	2698	140	190
AUDI	A6 C6 (4F2)	3.0	2004 – 2011	2976	160	218
AUDI	A6 C6 (4F2)	2.7 TDI	2004 – 2011	2698	140	190
AUDI	A6 C6 (4F2)	2.0 TDI	2004 – 2011	1968	89	121
AUDI	A6 C6 (4F2)	2.0 TDI	2004 – 2011	1968	125	170
AUDI	A6 C6 (4F2)	RS6 quattro	2004 – 2011	4991	426	580
AUDI	A6 C6 (4F2)	2.8 V6	2004 – 2011	2771	142	193
AUDI	A6 C6 (4F2)	3.2 FSI	2004 – 2011	3197	195	265
AUDI	A6 C6 (4F2)	2.4	2004 – 2011	2393	130	177
AUDI	A6 C6 (4F2)	3.2 FSI	2004 – 2011	3123	188	255
AUDI	A6 C6 (4F2)	3.2 FSI quattro	2004 – 2011	3123	188	255
AUDI	A6 C6 (4F2)	2.0 TDI	2004 – 2011	1968	103	140
AUDI	A6 C6 (4F2)	4.2 quattro	2004 – 2011	4163	246	335
AUDI	A6 C6 (4F2)	3.0 TDI quattro	2004 – 2011	2967	165	225
AUDI	A6 C6 (4F2)	3.0 TDI quattro	2004 – 2011	2967	155	211
AUDI	A6 C6 (4F2)	2.0 TDI	2004 – 2011	1968	120	163
AUDI	A6 C6 (4F2)	2.7 TDI	2004 – 2011	2698	132	180
AUDI	A6 C6 (4F2)	2.7 TDI	2004 – 2011	2698	120	163
AUDI	A6 C6 (4F2)	2.4 quattro	2004 – 2011	2393	130	177
AUDI	A6 C6 Avant (4F5)	2.0 TDI	2004 – 2011	1968	120	163
AUDI	A6 C6 Avant (4F5)	4.2 FSI quattro	2004 – 2011	4163	257	350
AUDI	A6 C6 Avant (4F5)	3.0	2004 – 2011	2976	160	218
AUDI	A6 C6 Avant (4F5)	3.0 TFSI quattro	2004 – 2011	2995	213	290
AUDI	A6 C6 Avant (4F5)	3.0 TDI quattro	2004 – 2011	2967	176	240
AUDI	A6 C6 Avant (4F5)	2.8 FSI quattro	2004 – 2011	2773	162	220
AUDI	A6 C6 Avant (4F5)	2.8 FSI quattro	2004 – 2011	2773	140	190
AUDI	A6 C6 Avant (4F5)	2.8 FSI	2004 – 2011	2773	162	220
AUDI	A6 C6 Avant (4F5)	2.8 FSI	2004 – 2011	2773	140	190
AUDI	A6 C6 Avant (4F5)	2.7 TDI quattro	2004 – 2011	2698	140	190
AUDI	A6 C6 Avant (4F5)	2.0 TDI	2004 – 2011	1968	125	170
AUDI	A6 C6 Avant (4F5)	2.7 TDI	2004 – 2011	2698	140	190
AUDI	A6 C6 Avant (4F5)	2.7 TDI	2004 – 2011	2698	132	180
AUDI	A6 C6 Avant (4F5)	3.0 TFSI quattro	2004 – 2011	2995	220	299
AUDI	A6 C6 Avant (4F5)	2.0 TDI	2004 – 2011	1968	103	140
AUDI	A6 C6 Avant (4F5)	2.7 TDI	2004 – 2011	2698	120	163
AUDI	A6 C6 Avant (4F5)	3.0 TDI quattro	2004 – 2011	2967	165	225
AUDI	A6 C6 Avant (4F5)	3.2 FSI	2004 – 2011	3123	188	255
AUDI	A6 C6 Avant (4F5)	3.2 FSI quattro	2004 – 2011	3123	188	255
AUDI	A6 C6 Avant (4F5)	4.2 quattro	2004 – 2011	4163	246	335
AUDI	A6 C6 Avant (4F5)	2.4	2004 – 2011	2393	130	177
AUDI	A6 C6 Avant (4F5)	2.4 quattro	2004 – 2011	2393	130	177
AUDI	A6 C6 Avant (4F5)	3.0 TDI quattro	2004 – 2011	2967	155	211
AUDI	A6 C6 Avant (4F5)	2.0 TDI	2004 – 2011	1968	89	121
AUDI	A6 C6 Avant (4F5)	2.7 TDI quattro	2004 – 2011	2698	132	180
AUDI	A6 C6 Avant (4F5)	2.0 TFSI	2004 – 2011	1984	125	170
AUDI	A6 C6 Avant (4F5)	2.0 TDI	2004 – 2011	1968	100	136
AUDI	A6 C6 Avant (4F5)	2.7 TDI quattro	2004 – 2011	2698	120	163
AUDI	A6 C6 Avant (4F5)	S6 quattro	2004 – 2011	5204	320	435
AUDI	A6 C6 Avant (4F5)	3.0 TDI quattro	2004 – 2011	2967	171	233
AUDI	A6 C6 Avant (4F5)	2.8 FSI	2004 – 2011	2773	154	210
AUDI	A6 C6 Avant (4F5)	3.0 quattro	2004 – 2011	2976	160	218
AUDI	A6 C6 Avant (4F5)	2.8 FSI quattro	2004 – 2011	2773	154	210
AUDI	A6 C6 Avant (4F5)	RS6 quattro	2004 – 2011	4991	426	580
