Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4436 · SKU DF4436-TRW
Rear Axle
₱13,100.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

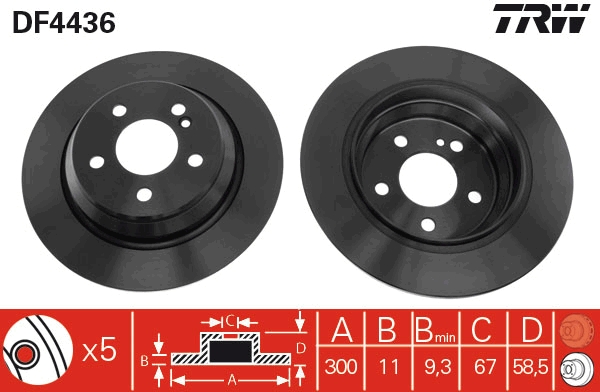

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)11
Brake Disc Type solid
Centering Diameter (mm)67
Colour black
Height (mm)58.5
Minimum thickness (mm)9.3
Number of Holes 5
Outer Diameter (mm)300
Surface Painted
Thread Size 15,5
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 11, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Height [mm] 58,5, Minimum thickness [mm] 9,3, Number of Holes 5, Outer Diameter [mm] 300, Surface Painted, Thread Size 15,5
Fits: MERCEDES-BENZ

Supplier Cross-References

TEXTAR92099400 ZIMMERMANN400360800 FERODODDF1675 BREMBO8972910 TRWDF4436 BOSCH986478472

Interchangeable Part Numbers

A.B.S.17112 A.P.14868 APECDSK2135 ATE24011101531 ATE24111101531 BENDIX562257B BENDIX562257BC BORG & BECKBBD4290 BOSCH0 986 478 472 BOSCH0 986 479 S33 BOSCH0 986 AB6 530 BOSCH0986AB5926 Brake ENGINEERINGDI956036 BREMBO08972910 BREMBO08972911 CAR142392 CARHPD392 DELPHIBG3725 DELPHIBG3725C-18B1 FEBI BILSTEIN22205 FERODODDF16751 FERODODDF1675C FIRST LINEFBD1294 FIRST LINEFBD1368 FTE9072539 FTE9082353 FTEBS5209 FTEBS5209HB GIRLING6044364 HELLA8DD 355 106-881 HELLA8DD 355 106-891 HELLA8DD 355 106-892 JURID562257J JURID562257JC LEMFÖRDER26970 01 LPRM2012P METELLI230525 METELLI230525C MEYLE015 523 2047/PD MEYLE015 523 2047 MEYLE0155230036 MEYLE0155230036PD MGAD1543 MINTEXMDC1427 NationalNBD1065 NK203365 NK313365 OPTIMALBS-7792C OPTIMALBS-7792 PAGID50271 PAGID50271PRO PILENGA5903 QH Benelux57922 QUINTON HAZELLBDC5209 QUINTON HAZELLBSF5209 REMSA686400 SWAG10922205 TEXTAR92099403 TEXTAR92099405 TRISCAN812023175 TRUCKTEC AUTOMOTIVE0235081 TRUSTINGDF857 VAICOV30-40048 VALEO197337 ZIMMERMANN400360820

OE Numbers — MERCEDES-BENZ

220 423 01 12 220423011264 A2204230112 A220423011264
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W220, V220) S 350, S 350 L (220.067, 220.167) 1998 – 2005 3724 180 245
MERCEDES-BENZ S-CLASS (W220, V220) S 500 (220.075, 220.175, 220.875) 1998 – 2005 4966 220 299
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG 1998 – 2005 5439 349 475
MERCEDES-BENZ S-CLASS (W220, V220) S 65 AMG, S 65 AMG L (220.179) 1998 – 2005 5980 450 612
MERCEDES-BENZ S-CLASS (W220, V220) S 400 CDI (220.028, 220.128) 1998 – 2005 3996 191 260
MERCEDES-BENZ S-CLASS (W220, V220) S 350 4-matic (220.087, 220.187) 1998 – 2005 3724 180 245
MERCEDES-BENZ S-CLASS (W220, V220) S 320 CDI (220.025, 220.125) 1998 – 2005 3222 150 204
MERCEDES-BENZ S-CLASS (W220, V220) S 500 4-matic (220.084, 220.184) 1998 – 2005 4966 225 306
MERCEDES-BENZ S-CLASS (W220, V220) S 430 4-matic (220.083, 220.183) 1998 – 2005 4266 205 279
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG Kompressor (220.074, 220.174) 1998 – 2005 5439 368 500
MERCEDES-BENZ S-CLASS (W220, V220) S 320 (220.065, 220.165) 1998 – 2005 3199 165 224
MERCEDES-BENZ S-CLASS (W220, V220) S 600, S 600 L (220.176) 1998 – 2005 5513 368 500
MERCEDES-BENZ S-CLASS (W220, V220) S 63 AMG 1998 – 2005 6258 326 444
MERCEDES-BENZ S-CLASS (W220, V220) S 400 CDI (220.028, 220.128) 1998 – 2005 3996 184 250
MERCEDES-BENZ S-CLASS (W220, V220) S 600, S 600 L (220.878, 220.178) 1998 – 2005 5786 270 367
MERCEDES-BENZ S-CLASS (W220, V220) S 320 CDI (220.026, 220.126) 1998 – 2005 3222 145 197
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG (220.073, 220.173) 1998 – 2005 5439 265 360
MERCEDES-BENZ S-CLASS (W220, V220) S 280 (220.063, 220.163) 1998 – 2005 2799 150 204
MERCEDES-BENZ S-CLASS (W220, V220) S 500, S 500 L (220.075, 220.175, 220.875) 1998 – 2005 4966 225 306
MERCEDES-BENZ S-CLASS (W220, V220) S 430, S 430 L (220.070, 220.170) 1998 – 2005 4266 205 279
