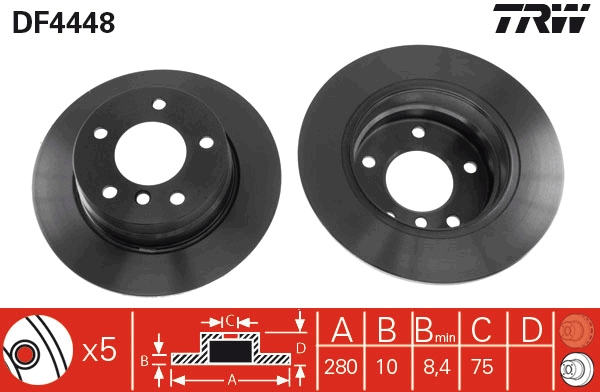

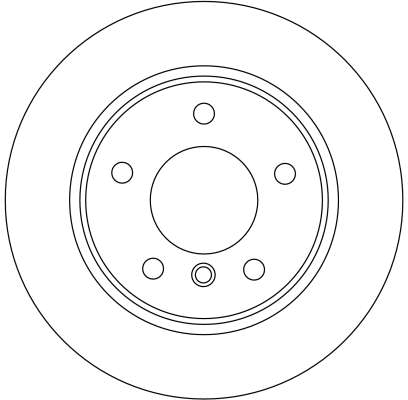

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4448 · SKU DF4448-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)75
Colour black
Drum diameter (mm)161
Height (mm)65
Minimum thickness (mm)8.4
Number of Holes 5
Outer Diameter (mm)280
Surface Painted
Test Mark E190R-02C0204/0525
Thread Size 14,7
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 161, Height [mm] 65, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 280, Surface Painted, Test Mark E190R-02C0204/0525, Thread Size 14,7
Fits: BMW

Interchangeable Part Numbers

A.B.S.17602 A.P.14870 APECDSK2298 ATE24011003141 ATE24031003141 BENDIX562259B BENDIX562259BC BORG & BECKBBD4465 BOSCH 0 986 479217 BOSCH0986479217 Brake ENGINEERINGDI956485 BREMBO08978710 BREMBO08978711 BREMBO0897871X CAR1421072 CARHPD1072 DELPHIBG3948 DELPHIBG3948C FEBI BILSTEIN26134 FERODODDF1303 FERODODDF13031 FERODODDF1303C FERODODDF1303C-1-D FERODODDF1303C1 FTE9072078 FTE9082150 FTE9082571 FTEBS5434 FTEBS5434HB HELLA 8DD 355111-251 HELLA8DD355111251 HELLA 8DD 355111-261 HELLA8DD355111261 HELLA 8DD 355128-351 HELLA8DD355128351 JURID562259J JURID562259JC LEMFÖRDER 3082001 LEMFÖRDER3082001 LPRB2003P LPRB2003PR MAGNETI MARELLI351068050500 METELLI230817 METELLI230817C METZGER14870V MEYLE 315 5233063/PD MEYLE3155233063PD MEYLE 315 5233063 MEYLE3155233063 MEYLE3155230048 MEYLE3155230048PD MGAD1582 MINTEXMDC1731 NationalNBD1361 NK201557 NK311557 OPTIMALBS-7574C OPTIMALBS-7574 PAGID54329 PAGID54329PRO PEX140793 QH Benelux58283 QUINTON HAZELLBDC5434 QUINTON HAZELLBSF5434 REMSA6101300 REMYRAD1380C ST-TEMPLIN0311012240 ST-TEMPLIN0311012245 SWAG20926134 TEXTAR92132900 TEXTAR92132903 TEXTAR98200132901 TRISCAN812011165 TRISCAN812011165C TRUCKTEC AUTOMOTIVE0834121 TRUSTINGDF1094 VAICOV20-80059 VALEO197339 ZIMMERMANN150.3425.00 ZIMMERMANN150342520

OE Numbers — BMW 34 21 6 764

647

OE Numbers — BMW

34216764647 34216855001 6764647 6855001

OE Numbers — BMW 34 21 6 855

001
MakeModelType / Engine YearsCCkWHP
BMW 1 (E81) 120 d 2006 – 2012 1995 120 163
BMW 1 (E81) 116 d 2006 – 2012 1995 66 90
BMW 1 (E81) 120 d 2006 – 2012 1995 145 197
BMW 1 (E81) 118 i 2006 – 2012 1995 95 129
BMW 1 (E81) 116 i 2006 – 2012 1596 85 115
BMW 1 (E81) 118 i 2006 – 2012 1995 100 136
BMW 1 (E81) 120 i 2006 – 2012 1995 120 163
BMW 1 (E81) 118 d 2006 – 2012 1995 100 136
BMW 1 (E81) 130 i 2006 – 2012 2996 190 258
BMW 1 (E81) 116 d 2006 – 2012 1995 85 116
BMW 1 (E81) 120 i 2006 – 2012 1995 115 156
BMW 1 (E81) 116 i 2006 – 2012 1599 90 122
BMW 1 (E81) 123 d 2006 – 2012 1995 150 204
BMW 1 (E81) 120 d 2006 – 2012 1995 130 177
BMW 1 (E81) 118 d 2006 – 2012 1995 105 143
BMW 1 (E81) 120 i 2006 – 2012 1995 125 170
BMW 1 (E81) 116 i 2006 – 2012 1995 90 122
BMW 1 (E81) 118 i 2006 – 2012 1995 105 143
BMW 1 (E81) 130 i 2006 – 2012 2996 195 265
BMW 1 (E87) 118 d 2003 – 2013 1995 100 136
BMW 1 (E87) 118 d 2003 – 2013 1995 105 143
BMW 1 (E87) 120 d 2003 – 2013 1995 120 163
BMW 1 (E87) 120 d 2003 – 2013 1995 130 177
BMW 1 (E87) 123 d 2003 – 2013 1995 150 204
BMW 1 (E87) 120 d 2003 – 2013 1995 125 170
BMW 1 (E87) 116 d 2003 – 2013 1995 66 90
BMW 1 (E87) 118 i 2003 – 2013 1995 125 170
BMW 1 (E87) 120 d 2003 – 2013 1995 110 150
BMW 1 (E87) 120 d 2003 – 2013 1995 115 156
BMW 1 (E87) 118 d 2003 – 2013 1995 90 122
BMW 1 (E87) 116 d 2003 – 2013 1995 85 116
BMW 1 (E87) 130 i 2003 – 2013 2996 195 265
BMW 1 (E87) 130 i 2003 – 2013 2996 190 258
BMW 1 (E87) 120 i 2003 – 2013 1995 125 170
BMW 1 (E87) 120 i 2003 – 2013 1995 120 163
BMW 1 (E87) 120 i 2003 – 2013 1995 115 156
BMW 1 (E87) 120 i 2003 – 2013 1995 110 150
BMW 1 (E87) 118 i 2003 – 2013 1995 105 143
BMW 1 (E87) 118 i 2003 – 2013 1995 100 136
BMW 1 (E87) 118 i 2003 – 2013 1995 95 129
BMW 1 (E87) 116 i 2003 – 2013 1995 90 122
BMW 1 (E87) 116 i 2003 – 2013 1599 90 122
BMW 1 (E87) 116 i 2003 – 2013 1596 85 115
