Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

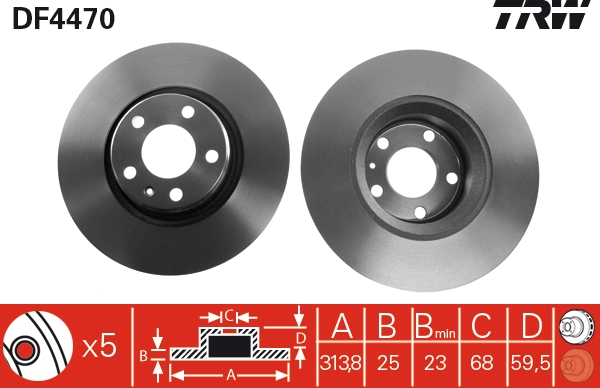

Brake Disc

Part No. DF4470 · SKU DF4470-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)68
Colour black
Height (mm)59.5
Machining High-carbon
Minimum thickness (mm)23
Number of Holes 5
Outer Diameter (mm)313
Supplementary Article/Info 2 with bolts/screws
Surface Painted
Thread Size 15,5
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 68, Colour black, Height [mm] 59,5, Machining High-carbon, Minimum thickness [mm] 23, Number of Holes 5, Outer Diameter [mm] 313, Supplementary Article/Info 2 with bolts/screws, Surface Painted, Thread Size 15,5
Fits: AUDI, AUDI (FAW)

Interchangeable Part Numbers

A.B.S.17625 A.P.24931E APECDSK2278 ATE24.0325-0149.1 ATE24012501491 BENDIX562271B BENDIX562271BC BORG & BECKBBD4509 BOSCH0 986 479 301 BOSCH0 986 479 C70 BOSCH0 986 AB6 112 BOSCH0 986 T16 112 Brake ENGINEERINGDI956465 BREMBO09.9540.14 BREMBO09954011 BREMBO9954014 CAR1421127 CARHPD1127 DELPHIBG3942 FEBI BILSTEIN26648 FERODODDF1291 FERODODDF1291C FERODODDF1291C-D FERODODDF1291C1 FERODODDF1291DSL-1-D FERODODDF1291DSR-1-D FERODODDF1291X FIRST LINEFBD1563 FTE9071083 FTE9081173 FTE9082587 FTEBS7094 FTEBS7094B FTEBS7094H FTEBS7094HB HELLA8DD 355 111-111 HELLA8DD 355 111-121 HELLA8DD 355 121-141 HELLA8DD 355 128-291 JURID562271J JURID562271JC LEMFÖRDER30858 01 LPRA1006V LPRA1006VR MAGNETI MARELLI351014620500 METELLI230867C MEYLE115 521 1097/PD MEYLE115 521 1097 MEYLE1835211097PD MGAD1515 MINTEXMDC1742 NationalNBD1379 NK204799 NK314799 NK344799 OPTIMALBS-7530HC OPTIMALBS-7530 PAGID54322 PAGID54322PRO PILENGAV238 QH Benelux58305 REMSA6110110 REMYRAD1472C ST-TEMPLIN0311010640 ST-TEMPLIN0311010645 SWAG30221197 SWAG32926648 TEXTAR92132200 TEXTAR92132203 TEXTAR92132205 TRISCAN8120291003 TRUSTINGDF994 VALEO196022 VALEO197052 ZIMMERMANN100.3317.00 ZIMMERMANN100331720 ZIMMERMANN100331750

OE Numbers — AUDI

4F0 615 301 D 4FD 615 301
MakeModelType / Engine YearsCCkWHP
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 154 210
AUDI A6 C6 (4F2) 2.0 TFSI 2004 – 2011 1984 125 170
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 100 136
AUDI A6 C6 (4F2) 3.0 TFSI quattro 2004 – 2011 2995 213 290
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 120 163
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 176 240
AUDI A6 C6 (4F2) S6 quattro 2004 – 2011 5204 320 435
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 162 220
AUDI A6 C6 (4F2) 4.2 FSI quattro 2004 – 2011 4163 257 350
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 171 233
AUDI A6 C6 (4F2) 3.0 TFSI quattro 2004 – 2011 2995 220 299
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 162 220
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 132 180
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 140 190
AUDI A6 C6 (4F2) 3.0 quattro 2004 – 2011 2976 160 218
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 140 190
AUDI A6 C6 (4F2) 3.2 FSI quattro 2004 – 2011 3123 183 249
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 154 210
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 140 190
AUDI A6 C6 (4F2) 3.0 2004 – 2011 2976 160 218
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 140 190
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 89 121
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 125 170
AUDI A6 C6 (4F2) RS6 quattro 2004 – 2011 4991 426 580
AUDI A6 C6 (4F2) 2.8 V6 2004 – 2011 2771 142 193
AUDI A6 C6 (4F2) 3.2 FSI 2004 – 2011 3197 195 265
AUDI A6 C6 (4F2) 2.4 2004 – 2011 2393 130 177
AUDI A6 C6 (4F2) 3.2 FSI 2004 – 2011 3123 188 255
AUDI A6 C6 (4F2) 3.2 FSI quattro 2004 – 2011 3123 188 255
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 103 140
AUDI A6 C6 (4F2) 4.2 quattro 2004 – 2011 4163 246 335
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 165 225
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 155 211
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 120 163
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 132 180
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 120 163
AUDI A6 C6 (4F2) 2.4 quattro 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 120 163
AUDI A6 C6 Avant (4F5) 4.2 FSI quattro 2004 – 2011 4163 257 350
AUDI A6 C6 Avant (4F5) 3.0 2004 – 2011 2976 160 218
AUDI A6 C6 Avant (4F5) 3.0 TFSI quattro 2004 – 2011 2995 213 290
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 176 240
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 162 220
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 140 190
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 162 220
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 140 190
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 140 190
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 125 170
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 140 190
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 132 180
AUDI A6 C6 Avant (4F5) 3.0 TFSI quattro 2004 – 2011 2995 220 299
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 103 140
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 120 163
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 165 225
AUDI A6 C6 Avant (4F5) 3.2 FSI 2004 – 2011 3123 188 255
AUDI A6 C6 Avant (4F5) 3.2 FSI quattro 2004 – 2011 3123 188 255
AUDI A6 C6 Avant (4F5) 4.2 quattro 2004 – 2011 4163 246 335
AUDI A6 C6 Avant (4F5) 2.4 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 2.4 quattro 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 155 211
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 89 121
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 132 180
AUDI A6 C6 Avant (4F5) 2.0 TFSI 2004 – 2011 1984 125 170
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 100 136
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 120 163
AUDI A6 C6 Avant (4F5) S6 quattro 2004 – 2011 5204 320 435
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 171 233
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 154 210
AUDI A6 C6 Avant (4F5) 3.0 quattro 2004 – 2011 2976 160 218
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 154 210
AUDI A6 C6 Avant (4F5) RS6 quattro 2004 – 2011 4991 426 580
