Braking System

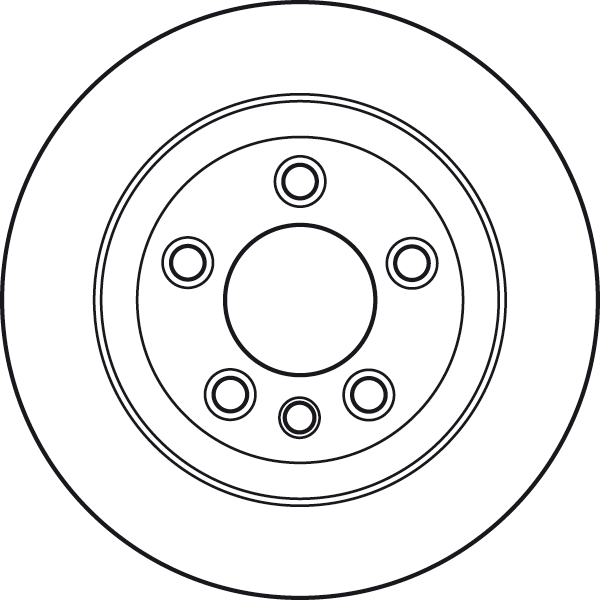

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF4487S-TRW
Availability: OutOfStock

Part No. DF4487S · SKU DF4487S-TRW

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	130
Brake Disc Thickness (mm)	28
Brake Disc Type Vented
Centering Diameter (mm)	85
Colour black
Drum diameter (mm)	210
Height (mm)	73.5
Machining High-carbon
Minimum thickness (mm)	26
Number of Holes 5
Outer Diameter (mm)	330
Surface Painted
Test Mark E1 90R-02 C0226/0567
Thread Size 15,4

Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 85, Colour black, Drum diameter [mm] 210, Height [mm] 73,5, Machining High-carbon, Minimum thickness [mm] 26, Number of Holes 5, Outer Diameter [mm] 330, Surface Painted, Test Mark E1 90R-02 C0226/0567, Thread Size 15,4
Fits: AUDI, PORSCHE, VW

Interchangeable Part Numbers

A.B.S.17502 A.B.S.17502S ATE24012801491 ATE24112801491 BENDIX562325B BENDIX562393B BENDIX562393BC BLUE PRINTADV184332 BORG & BECKBBD5131 BOSCH0 986 479 095 BOSCH0 986 479 S20 BOSCH0 986 AB5 881 BOSCH0 986 AB6 135 BOSCH0986AB5955 BOSCH F026 A06 842 BOSCHF026A06842 Brake ENGINEERINGDI956231 BREMBO09.C884.11 BREMBO09A05611 CAR1421018 CARHPD1018 DELPHIBG3775 DELPHIBG3775C DELPHIBG3775C-18B1 DELPHIBG3775C-19B1 FEBI BILSTEIN28157 FERODODDF1580 FERODODDF15801 FERODODDF1580C FERODODDF1580C-1-D FERODODDF1580C1 FERODODDF1580DSL-1-D FERODODDF1580DSR-1-D fri.tech.DF561 FTE9071211 FTE9081057 FTE9082565 FTEBS5372 FTEBS5372B FTEBS5372HB HELLA8DD 355 109-811 HELLA8DD 355 109-821 HELLA8DD 355 109-822 HELLA8DD 355 123-691 HELLA8DD 355 129-761 Hi-QSD5450 JURID562325J JURID562393J JURID562393JC LEMFÖRDER30492 01 LPRP2000V LPRP2000VR MAGNETI MARELLI360704028200 METELLI230883C METZGER25136V MEYLE115 523 1105/PD MEYLE115 523 1105 MEYLE1155230041 MEYLE1155230041PD MINTEXMDC1612 NK2047106 NK3147106 NK3447106 OPTIMALBS-8096C OPTIMALBS-8096 PAGID54220 PAGID54220PRO PEX140787 PILENGAV903 QUINTON HAZELLBDC5372 QUINTON HAZELLBSF5372 REMSA697110 REMYRAD1266C sbs18152047106 ST-TEMPLIN0311030280 ST-TEMPLIN0311030285 SWAG30928157 TEXTAR92122000 TEXTAR92122003 TEXTAR92122005 TEXTAR92122010 TRISCAN812029181 TRISCAN812029181C TRUCKTEC AUTOMOTIVE0735200 VALEO197090 VALEO297090 ZIMMERMANN600322920

OE Numbers — AUDI

7L6 615 601 D 7L6 615 601 J 7L8 615 601 C 7L8 615 601 G

OE Numbers — PORSCHE

955 352 401 00 955 352 401 30 955 352 401 31

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	171	233
AUDI	Q7 (4LB)	4.2 TDI quattro	2006 – 2016	4134	250	340
AUDI	Q7 (4LB)	3.0 TFSI quattro	2006 – 2016	2995	245	333
AUDI	Q7 (4LB)	6.0 TDI quattro	2006 – 2016	5934	368	500
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	176	240
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	150	204
AUDI	Q7 (4LB)	4.2 TDI quattro	2006 – 2016	4134	240	326
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	155	211
AUDI	Q7 (4LB)	3.0 TFSI quattro	2006 – 2016	2995	200	272
AUDI	Q7 (4LB)	3.6 FSI quattro	2006 – 2016	3597	206	280
AUDI	Q7 (4LB)	4.2 FSI quattro	2006 – 2016	4163	257	350
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	165	224
AUDI	Q7 (4LB)	3.0 TFSI quattro	2006 – 2016	2995	206	280
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	180	245
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	176	240
AUDI	Q7 Van (4LB)	3.0 TFSI quattro	2006 – 2016	2995	245	333
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	180	245
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	171	232
AUDI	Q7 Van (4LB)	3.6 FSI quattro	2006 – 2016	3597	206	280
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	155	211
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	150	204
AUDI	Q7 Van (4LB)	4.2 TDI quattro	2006 – 2016	4134	240	326
AUDI	Q7 Van (4LB)	4.2 TDI quattro	2006 – 2016	4134	250	340
AUDI	Q7 Van (4LB)	4.2 FSI quattro	2006 – 2016	4163	257	350
AUDI	Q7 Van (4LB)	6.0 TDI quattro	2006 – 2016	5934	368	500
PORSCHE	CAYENNE (92A)	3.6 S	2010 – 2018	3604	313	426
PORSCHE	CAYENNE (92A)	3.6 S	2010 – 2018	3604	309	420
PORSCHE	CAYENNE (92A)	4.8 Turbo	2010 – 2018	4806	382	520
PORSCHE	CAYENNE (92A)	4.2 S Diesel	2010 – 2018	4134	283	385
PORSCHE	CAYENNE (92A)	3.0 Diesel	2010 – 2018	2967	193	262
PORSCHE	CAYENNE (92A)	4.8 Turbo S	2010 – 2018	4806	405	550
PORSCHE	CAYENNE (92A)	3.0 Diesel	2010 – 2018	2967	184	250
PORSCHE	CAYENNE (92A)	3.6 GTS	2010 – 2018	3604	324	440
PORSCHE	CAYENNE (92A)	4.8 Turbo S	2010 – 2018	4806	419	570
PORSCHE	CAYENNE (92A)	3.0 Diesel	2010 – 2018	2967	245	333
PORSCHE	CAYENNE (92A)	3.6	2010 – 2018	3598	224	305
PORSCHE	CAYENNE (92A)	3.6 GTS	2010 – 2018	3604	328	446
PORSCHE	CAYENNE (92A)	3.0 S E-Hybrid	2010 – 2018	2995	306	416
PORSCHE	CAYENNE (92A)	3.0 S Hybrid	2010 – 2018	2995	279	379
PORSCHE	CAYENNE (92A)	3.0 Diesel	2010 – 2018	2967	176	239
PORSCHE	CAYENNE (92A)	4.8 GTS	2010 – 2018	4806	309	420
PORSCHE	CAYENNE (92A)	3.0 Diesel	2010 – 2018	2967	180	245
PORSCHE	CAYENNE (92A)	4.8 Turbo	2010 – 2018	4806	368	500
PORSCHE	CAYENNE (92A)	4.8 S	2010 – 2018	4806	294	400
PORSCHE	CAYENNE (92A)	3.6	2010 – 2018	3598	220	300
PORSCHE	CAYENNE (92A)	4.8 Turbo	2010 – 2018	4806	397	540
PORSCHE	CAYENNE (92A)	3.0 S	2010 – 2018	2995	245	333
PORSCHE	CAYENNE (92A)	3.0 Diesel	2010 – 2018	2967	155	211
PORSCHE	CAYENNE (92A)	4.2 S Diesel	2010 – 2018	4134	281	382
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	368	500
PORSCHE	CAYENNE (9PA)	S 4.5	2002 – 2010	4511	250	340
PORSCHE	CAYENNE (9PA)	Turbo 4.5	2002 – 2010	4511	331	450
PORSCHE	CAYENNE (9PA)	3.2	2002 – 2010	3189	184	250
PORSCHE	CAYENNE (9PA)	Turbo S 4.5	2002 – 2010	4511	368	500
PORSCHE	CAYENNE (9PA)	Turbo S 4.5	2002 – 2010	4511	383	521
PORSCHE	CAYENNE (9PA)	3.6	2002 – 2010	3598	213	290
PORSCHE	CAYENNE (9PA)	S 4.8	2002 – 2010	4806	283	385
PORSCHE	CAYENNE (9PA)	3.2	2002 – 2010	3189	177	241
PORSCHE	CAYENNE (9PA)	GTS 4.8	2002 – 2010	4806	298	405
PORSCHE	CAYENNE (9PA)	3.0 TDI	2002 – 2010	2967	176	240
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	404	550
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	397	540
PORSCHE	CAYENNE (9PA)	Turbo 4.8	2002 – 2010	4806	373	507
PORSCHE	CAYENNE (9PA)	S 4.5	2002 – 2010	4511	184	250
