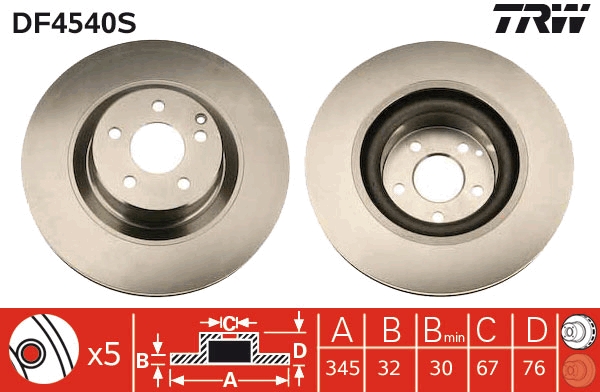

Brake Disc
Braking System

Brake Disc

Part No. DF4540S · SKU DF4540S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)32
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)76
Minimum thickness (mm)30
Number of Holes 5
Outer Diameter (mm)345
Thread Size 14,8
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 32, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 76, Minimum thickness [mm] 30, Number of Holes 5, Outer Diameter [mm] 345, Thread Size 14,8
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.17360 APECDSK2144 ATE24013201251 ATE24113201251 BENDIX562345B BENDIX562405B BORG & BECKBBD5781S BOSCH 0 986 478964 BOSCH0986478964 BOSCH986478964 Brake ENGINEERINGDI956155S BREMBO 09 93 8210 BREMBO09938210 BREMBO09938211 BREMBO9938210 CAR142277 DELPHIBG3754 DELPHIBG9754 FEBI BILSTEIN44032 FERODODDF1248 FERODODDF1248C FERODODDF1248C1 FIRST LINEFBD1539 FTEBS5343 GIRLING6045405 HELLA 8DD 355107-941 HELLA8DD355107941 HELLA 8DD 355122-022 HELLA8DD355122022 JURID562345J JURID562405J LEMFÖRDER 3115101 LEMFÖRDER3115101 LPRM2084V MAGNETI MARELLI351286620500 MEYLE 015 5210032/PD MEYLE0155210032PD MEYLE 015 5211092/PD MEYLE0155211092PD MEYLE0155211092 MINTEXMDC1781 NationalNBD1161 NK203380 NK313380 OPTIMALBS-7824C OPTIMALBS-7824 PAGID50337 PILENGAV919 QH Benelux58033 QUINTON HAZELLBDC5343 QUINTON HAZELLBSF5343 SWAG 10 944032 SWAG10944032 TEXTAR92108800 TEXTAR92108803 TEXTAR92108805 TEXTAR98200108801 TRISCAN8120231041 TRUSTINGDF330 VAICOV30-80081 ZIMMERMANN400361500

OE Numbers — MERCEDES-BENZ 220 421 11

12

OE Numbers — MERCEDES-BENZ

2204211112 220421111264 A2204211112 A220421111264
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ C-CLASS (W203) C 280 (203.054) 2000 – 2007 2996 170 231
MERCEDES-BENZ C-CLASS (W203) C 220 CDI (203.006, 203.008) 2000 – 2007 2148 105 143
MERCEDES-BENZ C-CLASS (W203) C 200 CDI (203.004) 2000 – 2007 2148 75 102
MERCEDES-BENZ C-CLASS (W203) C 350 (203.056) 2000 – 2007 3498 200 272
MERCEDES-BENZ C-CLASS (W203) C 280 4-matic (203.092) 2000 – 2007 2996 170 231
MERCEDES-BENZ C-CLASS (W203) C 180 Kompressor (203.046) 2000 – 2007 1796 105 143
MERCEDES-BENZ C-CLASS (W203) C 200 Kompressor (203.042) 2000 – 2007 1796 120 163
MERCEDES-BENZ C-CLASS (W203) C 240 4-matic (203.081) 2000 – 2007 2597 125 170
MERCEDES-BENZ C-CLASS (W203) C 320 4-matic (203.084) 2000 – 2007 3199 160 218
MERCEDES-BENZ C-CLASS (W203) C 32 AMG Kompressor (203.065) 2000 – 2007 3199 260 354
MERCEDES-BENZ C-CLASS (W203) C 320 CDI (203.020) 2000 – 2007 2987 165 224
MERCEDES-BENZ C-CLASS (W203) C 55 AMG (203.076) 2000 – 2007 5439 270 367
MERCEDES-BENZ C-CLASS (W203) C 220 CDI (203.008) 2000 – 2007 2148 110 150
MERCEDES-BENZ C-CLASS (W203) C 230 Kompressor (203.040) 2000 – 2007 1796 141 192
MERCEDES-BENZ C-CLASS (W203) C 30 CDI AMG (203.018) 2000 – 2007 2950 170 231
MERCEDES-BENZ C-CLASS (W203) C 200 CDI (203.007) 2000 – 2007 2148 90 122
MERCEDES-BENZ C-CLASS (W203) C 200 CGI Kompressor (203.043) 2000 – 2007 1796 125 170
MERCEDES-BENZ C-CLASS (W203) C 220 CDI (203.006) 2000 – 2007 2148 100 136
MERCEDES-BENZ C-CLASS (W203) C 55 AMG 2000 – 2007 5439 270 367
MERCEDES-BENZ C-CLASS (W203) C 270 CDI (203.016) 2000 – 2007 2685 120 163
MERCEDES-BENZ C-CLASS (W203) C 320 FLEX 2000 – 2007 3199 160 218
MERCEDES-BENZ C-CLASS (W203) C 55 AMG 2000 – 2007 5439 260 354
MERCEDES-BENZ C-CLASS (W203) C 270 CDI (203.016) 2000 – 2007 2685 125 170
MERCEDES-BENZ C-CLASS (W203) 3.5 (203.056) 2000 – 2007 3498 170 231
MERCEDES-BENZ C-CLASS (W203) C 230 (203.052) 2000 – 2007 2496 150 204
MERCEDES-BENZ C-CLASS (W203) C 350 4-matic (203.087) 2000 – 2007 3498 200 272
MERCEDES-BENZ C-CLASS (W203) C 180 (203.035) 2000 – 2007 1998 95 129
MERCEDES-BENZ C-CLASS (W203) C 200 Kompressor (203.045) 2000 – 2007 1998 120 163
MERCEDES-BENZ C-CLASS (W203) C 240 (203.061) 2000 – 2007 2597 125 170
MERCEDES-BENZ C-CLASS (W203) C 320 (203.064) 2000 – 2007 3199 160 218
MERCEDES-BENZ C-CLASS (W203) C 200 CDI (203.004) 2000 – 2007 2148 85 116
MERCEDES-BENZ S-CLASS (W220, V220) S 65 AMG, S 65 AMG L (220.179) 1998 – 2005 5980 450 612
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG 1998 – 2005 5439 349 475
MERCEDES-BENZ S-CLASS (W220, V220) S 400 CDI (220.028, 220.128) 1998 – 2005 3996 191 260
MERCEDES-BENZ S-CLASS (W220, V220) S 350 4-matic (220.087, 220.187) 1998 – 2005 3724 180 245
MERCEDES-BENZ S-CLASS (W220, V220) S 500 (220.075, 220.175, 220.875) 1998 – 2005 4966 220 299
MERCEDES-BENZ S-CLASS (W220, V220) S 500 4-matic (220.084, 220.184) 1998 – 2005 4966 225 306
MERCEDES-BENZ S-CLASS (W220, V220) S 320 CDI (220.025, 220.125) 1998 – 2005 3222 150 204
MERCEDES-BENZ S-CLASS (W220, V220) S 430, S 430 L (220.070, 220.170) 1998 – 2005 4266 205 279
MERCEDES-BENZ S-CLASS (W220, V220) S 500, S 500 L (220.075, 220.175, 220.875) 1998 – 2005 4966 225 306
MERCEDES-BENZ S-CLASS (W220, V220) S 280 (220.063, 220.163) 1998 – 2005 2799 150 204
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG (220.073, 220.173) 1998 – 2005 5439 265 360
MERCEDES-BENZ S-CLASS (W220, V220) S 320 CDI (220.026, 220.126) 1998 – 2005 3222 145 197
MERCEDES-BENZ S-CLASS (W220, V220) S 600, S 600 L (220.878, 220.178) 1998 – 2005 5786 270 367
MERCEDES-BENZ S-CLASS (W220, V220) S 400 CDI (220.028, 220.128) 1998 – 2005 3996 184 250
MERCEDES-BENZ S-CLASS (W220, V220) S 63 AMG 1998 – 2005 6258 326 444
MERCEDES-BENZ S-CLASS (W220, V220) S 600, S 600 L (220.176) 1998 – 2005 5513 368 500
MERCEDES-BENZ S-CLASS (W220, V220) S 350, S 350 L (220.067, 220.167) 1998 – 2005 3724 180 245
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG Kompressor (220.074, 220.174) 1998 – 2005 5439 368 500
MERCEDES-BENZ S-CLASS (W220, V220) S 430 4-matic (220.083, 220.183) 1998 – 2005 4266 205 279
MERCEDES-BENZ S-CLASS (W220, V220) S 320 (220.065, 220.165) 1998 – 2005 3199 165 224
MERCEDES-BENZ S-CLASS Coupe (C215) CL 63 AMG 1999 – 2006 6258 326 444
MERCEDES-BENZ S-CLASS Coupe (C215) CL 600 (215.376) 1999 – 2006 5513 368 500
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG (215.373) 1999 – 2006 5439 265 360
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG 1999 – 2006 5439 255 347
MERCEDES-BENZ S-CLASS Coupe (C215) CL 600 (215.378) 1999 – 2006 5786 270 367
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG 1999 – 2006 5439 349 475
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG 1999 – 2006 5439 367 499
MERCEDES-BENZ S-CLASS Coupe (C215) CL 500 (215.375) 1999 – 2006 4966 225 306
MERCEDES-BENZ S-CLASS Coupe (C215) CL 500 (215.375) 1999 – 2006 4966 215 292
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG Kompressor (215.374) 1999 – 2006 5439 368 500
MERCEDES-BENZ S-CLASS Coupe (C215) CL 65 AMG (215.379) 1999 – 2006 5980 450 612
