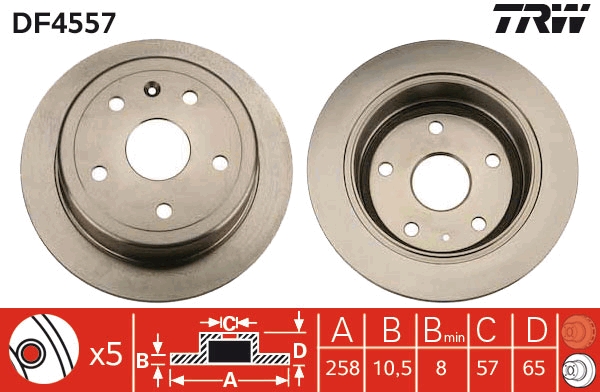

Specifications

Bolt Hole Circle Ø (mm)	114.3
Brake Disc Thickness (mm)	10.5
Brake Disc Type solid
Centering Diameter (mm)	57
Colour black
Drum diameter (mm)	163
Height (mm)	65
Minimum thickness (mm)	8
Number of Holes 5
Outer Diameter (mm)	258
Surface Painted
Thread Size 13,5

Bolt Hole Circle Ø [mm] 114,3, Brake Disc Thickness [mm] 10,5, Brake Disc Type solid, Centering Diameter [mm] 57, Colour black, Drum diameter [mm] 163, Height [mm] 65, Minimum thickness [mm] 8, Number of Holes 5, Outer Diameter [mm] 258, Surface Painted, Thread Size 13,5

Supplier Cross-References

TEXTAR4019722267901 FERODODDF1188 ATE24011002821 HELLA PAGID355110681 JURID562256J TRWDF4557

Interchangeable Part Numbers

A.B.S.16925 AKEBONOBN-1265E AKEBONOBN-1265 APECDSK2130 BENDIX562256B BENDIX562256BC BLUE PRINTADG04371 BORG & BECKBBD5126 BOSCH0 986 479 U30 Brake ENGINEERINGDI955890 CAR142993 CARHPD993 DBA AustraliaDBA893 DELPHIBG3554 FEBI BILSTEIN23540 FERODODDF11881 FIRST LINEFBD1352 GIRLING6045574 HELLA8DD 355 110-681 HERTH+BUSS JAKOPARTSJ3310906 JAPANPARTSDPW01 JURID562256JC KAWE6872 00 LPRO1018P MAGNETI MARELLI600000090090 MAPCO25504 METELLI23-1488C MINTEXMDC1399 NationalNBD1003 NK205005 NK315005 OPTIMALBS-8800C OPTIMALBS-8800 PAGID54289 QH Benelux57857 QUINTON HAZELLBDC4765 QUINTON HAZELLBSF4765 RAICAMRD00974 sbs1815205005 SWAG89923540 TEXTAR92128900 TRISCAN812021109 TRUSTINGDF101 WOKINGD6872.00
