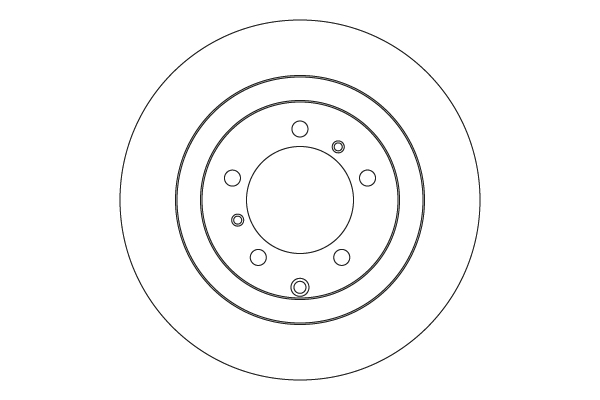

Specifications
| Bolt Hole Circle Ø (mm) | 130 |
| Brake Disc Thickness (mm) | 26 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 98 |
| Colour black | |
| Height (mm) | 73.6 |
| Machining High-carbon | |
| Minimum thickness (mm) | 24 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 330 |
| Surface Painted | |
| Test Mark E1 90R-02 C0226/0567 | |
| Thread Size 15,4 | |
Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 26, Brake Disc Type Vented, Centering Diameter [mm] 98, Colour black, Height [mm] 73,6, Machining High-carbon, Minimum thickness [mm] 24, Number of Holes 5, Outer Diameter [mm] 330, Surface Painted, Test Mark E1 90R-02 C0226/0567, Thread Size 15,4
Fits: PORSCHE
Fits: PORSCHE
Supplier Cross-References
Interchangeable Part Numbers
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| PORSCHE | CAYENNE (9YA) | 2.9 S AWD (9YABB1) | 2017 – present | 2894 | 324 | 440 |
| PORSCHE | CAYENNE (9YA) | 2.0 E-Hybrid AWD (9YAAR1) | 2017 – present | 1984 | 293 | 398 |
| PORSCHE | CAYENNE (9YA) | 4.0 S AWD (9YABJ1) | 2017 – present | 3996 | 349 | 475 |
| PORSCHE | CAYENNE (9YA) | 3.0 AWD (9YAAI1) | 2017 – present | 2995 | 260 | 354 |
| PORSCHE | CAYENNE (9YA) | 3.0 E-Hybrid AWD (9YAAV1) | 2017 – present | 2995 | 346 | 470 |
| PORSCHE | CAYENNE (9YA) | 3.0 AWD | 2017 – present | 2995 | 255 | 347 |
| PORSCHE | CAYENNE (9YA) | 4.0 Turbo S E-Hybrid AWD (9YACH1) | 2017 – present | 3996 | 500 | 680 |
| PORSCHE | CAYENNE (9YA) | Turbo E-Hybrid AWD (9YACT1) | 2017 – present | 3996 | 544 | 740 |
| PORSCHE | CAYENNE (9YA) | 2.0 E-Hybrid AWD (9YAAM1) | 2017 – present | 1984 | 284 | 386 |
| PORSCHE | CAYENNE (9YA) | 4.0 GTS (9YABG1) | 2017 – present | 3996 | 338 | 460 |
| PORSCHE | CAYENNE (9YA) | 3.0 E-Hybrid AWD (9YAAE1) | 2017 – present | 2995 | 340 | 462 |
| PORSCHE | CAYENNE (9YA) | S E-Hybrid AWD (9YABN1) | 2017 – present | 2995 | 382 | 519 |
| PORSCHE | CAYENNE (9YA) | 4.0 GTS | 2017 – present | 3996 | 368 | 500 |
| PORSCHE | CAYENNE (9YA) | 3.0 AWD (9YAAA1) | 2017 – present | 2995 | 250 | 340 |
| PORSCHE | CAYENNE (9YA) | 4.0 Turbo AWD (9YACF1) | 2017 – present | 3996 | 404 | 550 |
| PORSCHE | CAYENNE Coupe (9YB) | Turbo E-Hybrid AWD (9YBCT1, 9YBCZ1) | 2019 – present | 3996 | 544 | 740 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 E-Hybrid AWD (9YBAV1) | 2019 – present | 2995 | 346 | 470 |
| PORSCHE | CAYENNE Coupe (9YB) | S E-Hybrid AWD (9YBBN1) | 2019 – present | 2995 | 382 | 519 |
| PORSCHE | CAYENNE Coupe (9YB) | 2.0 E-Hybrid AWD (9YBAR1) | 2019 – present | 1984 | 293 | 398 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 S AWD (9YBBJ1) | 2019 – present | 3996 | 349 | 475 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 GTS | 2019 – present | 3996 | 368 | 500 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 AWD (9YBAI1) | 2019 – present | 2995 | 260 | 354 |
| PORSCHE | CAYENNE Coupe (9YB) | Turbo GT AWD (9YBCP1) | 2019 – present | 3996 | 485 | 660 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 AWD | 2019 – present | 2995 | 255 | 347 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 Turbo GT AWD (9YBCQ1) | 2019 – present | 3996 | 471 | 640 |
| PORSCHE | CAYENNE Coupe (9YB) | 2.0 E-Hybrid AWD | 2019 – present | 1984 | 284 | 386 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 GTS AWD (9YBBG1) | 2019 – present | 3996 | 338 | 460 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 E-Hybrid AWD | 2019 – present | 2995 | 339 | 461 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 Turbo S E-Hybrid AWD (9YBCH1) | 2019 – present | 3996 | 500 | 680 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 Turbo AWD (9YBCF1) | 2019 – present | 3996 | 404 | 550 |
| PORSCHE | CAYENNE Coupe (9YB) | 2.9 S AWD (9YBBB1) | 2019 – present | 2894 | 324 | 440 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 AWD (9YBAA1) | 2019 – present | 2995 | 250 | 340 |
