Brake Disc

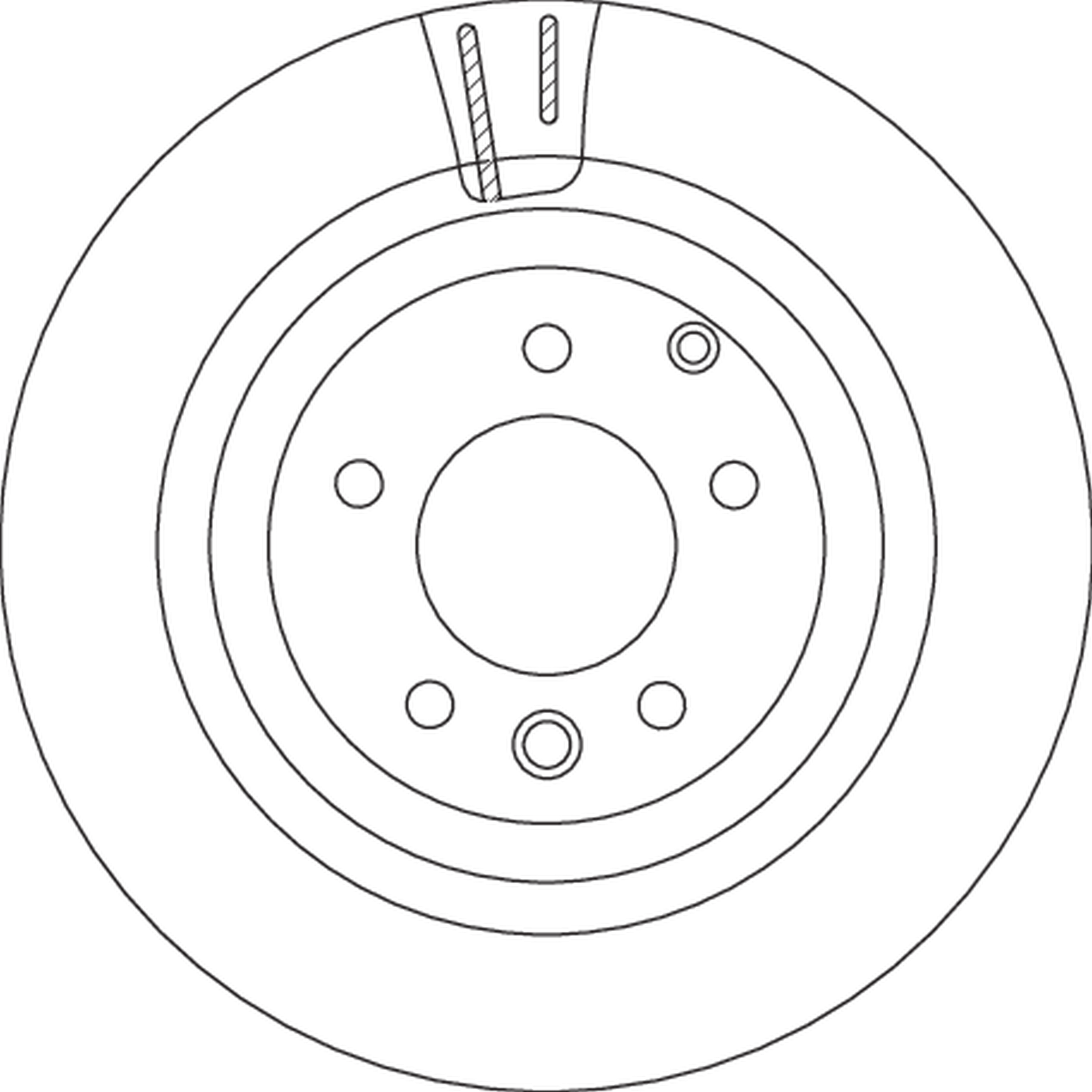

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4759S · SKU DF4759S-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130
Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)85
Colour black
Height (mm)73.6
Machining High-carbon
Minimum thickness (mm)26
Number of Holes 5
Outer Diameter (mm)358
Surface Painted
Thread Size 15,5
Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 85, Colour black, Height [mm] 73,6, Machining High-carbon, Minimum thickness [mm] 26, Number of Holes 5, Outer Diameter [mm] 358, Surface Painted, Thread Size 15,5
Fits: AUDI, PORSCHE, VW

Interchangeable Part Numbers

APECDSK2475 ATE24.0128-0169.1 ATE24112801691 BENDIX562513BC BORG & BECKBBD5926S BOSCH 0 986 479259 BOSCH0986479259 BOSCH 0 986 AB5884 BOSCH0986AB5884 BOSCH 0 986 AB6733 BOSCH0986AB6733 Brake ENGINEERINGDI956707S BREMBO09987111 CAR142.1185 CARHPD1185 DELPHIBG4070 DELPHIBG4070C-18B1 FEBI BILSTEIN28161 FERODODDF1855C FERODODDF1855C1 FTE9071099 FTE9081181 FTE9081324 FTEBS7228 FTEBS7228B FTEBS7228HB HELLA 8DD 355120-161 HELLA8DD355120161 HELLA 8DD 355124-361 HELLA8DD355124361 HELLA 8DD 355129-721 HELLA8DD355129721 JURID562513JC LEMFÖRDER 3121901 LEMFÖRDER3121901 LPRP2014V METELLI23-1090C METZGER25135V MEYLE 115 5231125/PD MEYLE1155231125PD MEYLE1155230034PD NK2047138 NK3147138 PILENGAV226 REMSA6130210 REMYRAD1668C SWAG30928161 TEXTAR92151403 TEXTAR92151405 TEXTAR92151410 TRISCAN8120291021 TRISCAN8120291021C TRUSTINGDF1204 VALEO196078 VALEO197051 VALEO297051 ZIMMERMANN600323920

OE Numbers — AUDI 7L8 615 601

A D E

OE Numbers — AUDI

7L8615601A 7L8615601D 7L8615601E 7L8615601

OE Numbers — AUDI 7L8 615

601

OE Numbers — PORSCHE 955 352 401

50 51

OE Numbers — PORSCHE

95535240150 95535240151
MakeModelType / Engine YearsCCkWHP
AUDI Q7 (4LB) 3.0 TDI quattro 2006 – 2016 2967 171 233
AUDI Q7 (4LB) 4.2 TDI quattro 2006 – 2016 4134 250 340
AUDI Q7 (4LB) 3.0 TFSI quattro 2006 – 2016 2995 245 333
AUDI Q7 (4LB) 6.0 TDI quattro 2006 – 2016 5934 368 500
AUDI Q7 (4LB) 3.0 TDI quattro 2006 – 2016 2967 176 240
AUDI Q7 (4LB) 3.0 TDI quattro 2006 – 2016 2967 150 204
AUDI Q7 (4LB) 4.2 TDI quattro 2006 – 2016 4134 240 326
AUDI Q7 (4LB) 3.0 TDI quattro 2006 – 2016 2967 155 211
AUDI Q7 (4LB) 3.0 TFSI quattro 2006 – 2016 2995 200 272
AUDI Q7 (4LB) 3.6 FSI quattro 2006 – 2016 3597 206 280
AUDI Q7 (4LB) 4.2 FSI quattro 2006 – 2016 4163 257 350
AUDI Q7 (4LB) 3.0 TDI quattro 2006 – 2016 2967 165 224
AUDI Q7 (4LB) 3.0 TFSI quattro 2006 – 2016 2995 206 280
AUDI Q7 (4LB) 3.0 TDI quattro 2006 – 2016 2967 180 245
AUDI Q7 Van (4LB) 3.0 TDI quattro 2006 – 2016 2967 176 240
AUDI Q7 Van (4LB) 3.0 TFSI quattro 2006 – 2016 2995 245 333
AUDI Q7 Van (4LB) 3.0 TDI quattro 2006 – 2016 2967 180 245
AUDI Q7 Van (4LB) 3.0 TDI quattro 2006 – 2016 2967 171 232
AUDI Q7 Van (4LB) 3.6 FSI quattro 2006 – 2016 3597 206 280
AUDI Q7 Van (4LB) 3.0 TDI quattro 2006 – 2016 2967 155 211
AUDI Q7 Van (4LB) 3.0 TDI quattro 2006 – 2016 2967 150 204
AUDI Q7 Van (4LB) 4.2 TDI quattro 2006 – 2016 4134 240 326
AUDI Q7 Van (4LB) 4.2 TDI quattro 2006 – 2016 4134 250 340
AUDI Q7 Van (4LB) 4.2 FSI quattro 2006 – 2016 4163 257 350
AUDI Q7 Van (4LB) 6.0 TDI quattro 2006 – 2016 5934 368 500
PORSCHE CAYENNE (92A) 3.6 S 2010 – 2018 3604 313 426
PORSCHE CAYENNE (92A) 3.6 S 2010 – 2018 3604 309 420
PORSCHE CAYENNE (92A) 4.8 Turbo 2010 – 2018 4806 382 520
PORSCHE CAYENNE (92A) 4.2 S Diesel 2010 – 2018 4134 283 385
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 193 262
PORSCHE CAYENNE (92A) 4.8 Turbo S 2010 – 2018 4806 405 550
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 184 250
PORSCHE CAYENNE (92A) 3.6 GTS 2010 – 2018 3604 324 440
PORSCHE CAYENNE (92A) 4.8 Turbo S 2010 – 2018 4806 419 570
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 245 333
PORSCHE CAYENNE (92A) 3.6 2010 – 2018 3598 224 305
PORSCHE CAYENNE (92A) 3.6 GTS 2010 – 2018 3604 328 446
PORSCHE CAYENNE (92A) 3.0 S E-Hybrid 2010 – 2018 2995 306 416
PORSCHE CAYENNE (92A) 3.0 S Hybrid 2010 – 2018 2995 279 379
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 176 239
PORSCHE CAYENNE (92A) 4.8 GTS 2010 – 2018 4806 309 420
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 180 245
PORSCHE CAYENNE (92A) 4.8 Turbo 2010 – 2018 4806 368 500
PORSCHE CAYENNE (92A) 4.8 S 2010 – 2018 4806 294 400
PORSCHE CAYENNE (92A) 3.6 2010 – 2018 3598 220 300
PORSCHE CAYENNE (92A) 4.8 Turbo 2010 – 2018 4806 397 540
PORSCHE CAYENNE (92A) 3.0 S 2010 – 2018 2995 245 333
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 155 211
PORSCHE CAYENNE (92A) 4.2 S Diesel 2010 – 2018 4134 281 382
PORSCHE CAYENNE (9PA) Turbo S 4.8 2002 – 2010 4806 368 500
PORSCHE CAYENNE (9PA) S 4.5 2002 – 2010 4511 250 340
PORSCHE CAYENNE (9PA) Turbo 4.5 2002 – 2010 4511 331 450
PORSCHE CAYENNE (9PA) 3.2 2002 – 2010 3189 184 250
PORSCHE CAYENNE (9PA) Turbo S 4.5 2002 – 2010 4511 368 500
PORSCHE CAYENNE (9PA) Turbo S 4.5 2002 – 2010 4511 383 521
PORSCHE CAYENNE (9PA) 3.6 2002 – 2010 3598 213 290
PORSCHE CAYENNE (9PA) S 4.8 2002 – 2010 4806 283 385
PORSCHE CAYENNE (9PA) 3.2 2002 – 2010 3189 177 241
PORSCHE CAYENNE (9PA) GTS 4.8 2002 – 2010 4806 298 405
PORSCHE CAYENNE (9PA) 3.0 TDI 2002 – 2010 2967 176 240
PORSCHE CAYENNE (9PA) Turbo S 4.8 2002 – 2010 4806 404 550
PORSCHE CAYENNE (9PA) Turbo S 4.8 2002 – 2010 4806 397 540
PORSCHE CAYENNE (9PA) Turbo 4.8 2002 – 2010 4806 373 507
PORSCHE CAYENNE (9PA) S 4.5 2002 – 2010 4511 184 250
