Brake Disc

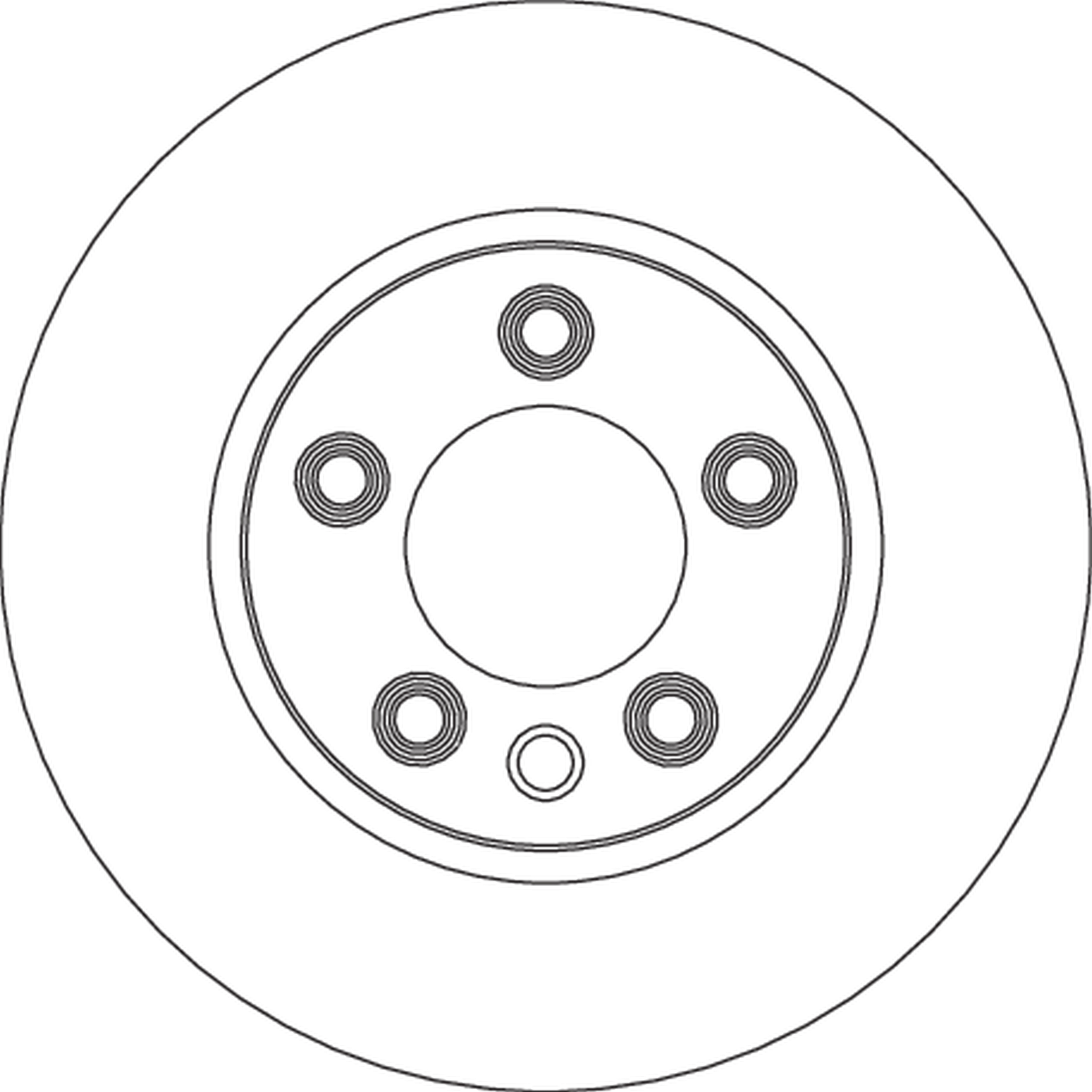

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4762S · SKU DF4762S-TRW
Front Axle Left
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130
Brake Disc Thickness (mm)31.9
Brake Disc Type Vented
Centering Diameter (mm)84.5
Colour black
Height (mm)68.4
Machining High-carbon
Minimum thickness (mm)30
Number of Holes 5
Outer Diameter (mm)330. paired article number DF4763S
Surface Painted
Test Mark E190R-02C0176/0556
Thread Size 15,4
Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 31,9, Brake Disc Type Vented, Centering Diameter [mm] 84,5, Colour black, Height [mm] 68,4, Machining High-carbon, Minimum thickness [mm] 30, Number of Holes 5, Outer Diameter [mm] 330, paired article number DF4763S, Surface Painted, Test Mark E190R-02C0176/0556, Thread Size 15,4
Fits: PORSCHE, VW

Interchangeable Part Numbers

A.B.S.17500 APECDSK2308 ATE24013201171 ATE24113201171 BENDIX562336BC BLUE PRINTADV184328 BORG & BECKBBD5756S BOSCH 0 986 479248 BOSCH0986479248 BOSCH 0 986 AB5867 BOSCH0986AB5867 BOSCH 0 986 AB6729 BOSCH0986AB6729 Brake ENGINEERINGDI956230S BREMBO09.C881.11 BREMBO09986711 CAR1421036 CARHPD1036 DELPHIBG9773 DELPHIBG9773C-19B1 FEBI BILSTEIN33165 FERODODDF1591 FERODODDF1591LC1 FIRST LINEFBD1409 FTE9071008 FTE9081036 FTEBS7199 FTEBS7199HB FTEBS7793 FTEBS7793B FTEBS7793HB HELLA 8DD 355109-511 HELLA8DD355109511 HELLA 8DD 355109-521 HELLA8DD355109521 HELLA 8DD 355109-711 HELLA8DD355109711 HELLA 8DD 355109-721 HELLA8DD355109721 HELLA 8DD 355109-722 HELLA8DD355109722 HELLA 8DD 355128-041 HELLA8DD355128041 JURID562336JC LEMFÖRDER 3049001 LEMFÖRDER3049001 LPRP2010V LPRP2010VR MAGNETI MARELLI360204000725 METELLI230919C METZGER25043V MEYLE 115 5211101/PD MEYLE1155211101PD MEYLE 115 5211101 MEYLE1155211101 MEYLE 115 5211102/PD MEYLE1155211102PD MEYLE1835211101PD MEYLE1835211102PD NationalNBD1233 NK2047102 NK3147102 NK3447102 OPTIMALBS-7942C OPTIMALBS-7942HC OPTIMALBS-7942 PAGID54205PRO PAGID54215 PAGID54215PRO PEX140785 PILENGAV858L QH Benelux58211 QUINTON HAZELLBDC5370 QUINTON HAZELLBSF5370 REMSA677310 REMYRAD1518C SWAG30933165 TEXTAR92121500 TEXTAR92121505 TEXTAR92121510 TEXTAR98200121501 TRISCAN812029177 TRISCAN812029177C TRUCKTEC AUTOMOTIVE0735187 TRUSTINGDF557 VALEO197087 ZIMMERMANN600322400 ZIMMERMANN600322420

OE Numbers — PORSCHE 955 351 401

00 40 41

OE Numbers — PORSCHE

95535140100 95535140140 95535140141

OE Numbers — VW 7L6 615 301

D J N P

OE Numbers — VW

7L6615301D 7L6615301J 7L6615301N 7L6615301P
MakeModelType / Engine YearsCCkWHP
PORSCHE CAYENNE (9PA) S 4.5 2002 – 2010 4511 250 340
PORSCHE CAYENNE (9PA) Turbo 4.5 2002 – 2010 4511 331 450
PORSCHE CAYENNE (9PA) 3.2 2002 – 2010 3189 184 250
PORSCHE CAYENNE (9PA) Turbo S 4.5 2002 – 2010 4511 368 500
PORSCHE CAYENNE (9PA) Turbo S 4.5 2002 – 2010 4511 383 521
PORSCHE CAYENNE (9PA) 3.6 2002 – 2010 3598 213 290
PORSCHE CAYENNE (9PA) S 4.8 2002 – 2010 4806 283 385
PORSCHE CAYENNE (9PA) Turbo S 4.8 2002 – 2010 4806 368 500
PORSCHE CAYENNE (9PA) 3.2 2002 – 2010 3189 177 241
PORSCHE CAYENNE (9PA) GTS 4.8 2002 – 2010 4806 298 405
PORSCHE CAYENNE (9PA) 3.0 TDI 2002 – 2010 2967 176 240
PORSCHE CAYENNE (9PA) Turbo S 4.8 2002 – 2010 4806 404 550
PORSCHE CAYENNE (9PA) Turbo S 4.8 2002 – 2010 4806 397 540
PORSCHE CAYENNE (9PA) Turbo 4.8 2002 – 2010 4806 373 507
PORSCHE CAYENNE (9PA) S 4.5 2002 – 2010 4511 184 250
