Brake Disc

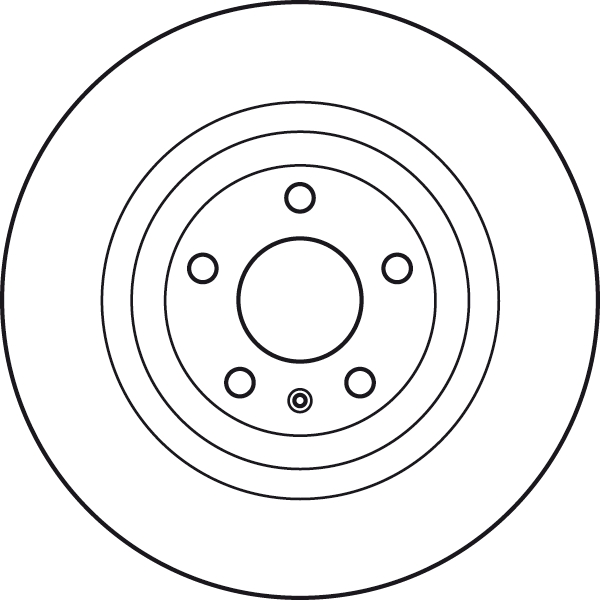

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4818S · SKU DF4818S-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)68
Colour black
Height (mm)49.4
Minimum thickness (mm)20
Number of Holes 5
Outer Diameter (mm)330
Surface Painted
Thread Size 15,3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 68, Colour black, Height [mm] 49,4, Minimum thickness [mm] 20, Number of Holes 5, Outer Diameter [mm] 330, Surface Painted, Thread Size 15,3
Fits: AUDI, AUDI (FAW)

Interchangeable Part Numbers

A.B.S.09.8842.21 A.B.S.17596 A.P.24892 A.P.24892 V A.P.24892 X AKEBONOBN-0183E AKEBONOBN-0183 APECDSK2260 ATE24.0322-0223.1 ATE24012202231 BENDIX562512BC BLUE PRINTADV184346 BORG & BECKBBD4508 BOSCH0 986 479 299 BOSCH0 986 479 C64 BOSCH0 986 AB6 116 Brake ENGINEERINGDI956468 BREMBO09.8842.20 BREMBO09.8842.2X CAR1421131 CARHPD1131 CIFAM800866 DELPHIBG3991 DELPHIBG3991C-18B1 DONPCD11772 FEBI BILSTEIN26654 FERODODDF1240 FERODODDF12401 FERODODDF1240C FERODODDF1240C-1-D FREMAXBD-5314 fri.tech.DF072 FTE9071136 FTE9081115 FTEBS7181 FTEBS7181B GIRLING6048185 GRAFDF29866 HELLA8DD 355 111-191 HELLA8DD 355 111-201 HELLA8DD 355 111-202 HELLA8DD 355 122-031 HELLA8DD 355 128-321 ICER78BD5314-2 JURID562512JC LEMFÖRDER30861 01 LPRA1009V LPRA1009VR MAGNETI MARELLI351014520500 MAGNETI MARELLI360406002201 MAGNETI MARELLI361302040418 METELLI230866 METELLI230866C METZGER6110437 MEYLE115 523 1100/PD MEYLE115 523 1100 MEYLE1155230028 MEYLE1155230028PD MINTEXMDC2249 NK2047110 NK3147110 OPEN PARTSBDR2201.20 OPTIMALBS-7544C OPTIMALBS-7544 PAGID54326 PAGID54326PRO PILENGAV223 QUINTON HAZELLBDC5691 QUINTON HAZELLBSF5691 RAICAMRD01116 REMSA697010 REMYRAD1283C sbs18152047110 sbs18153147110 ST-TEMPLIN0311010630 ST-TEMPLIN0311010635 SWAG10926654 SWAG30221202 TEXTAR92132600 TEXTAR92132603 TEXTAR92132605 TRISCAN8120291012 TRISCAN8120291014 TRISCAN8120291014C VAICOV10-80093 VALEO196028 VALEO197314 ZIMMERMANN100332100

OE Numbers — AUDI

4F0 615 601 D 4F0 615 601 F
MakeModelType / Engine YearsCCkWHP
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 154 210
AUDI A6 C6 (4F2) 2.0 TFSI 2004 – 2011 1984 125 170
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 100 136
AUDI A6 C6 (4F2) 3.0 TFSI quattro 2004 – 2011 2995 213 290
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 120 163
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 176 240
AUDI A6 C6 (4F2) S6 quattro 2004 – 2011 5204 320 435
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 162 220
AUDI A6 C6 (4F2) 4.2 FSI quattro 2004 – 2011 4163 257 350
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 171 233
AUDI A6 C6 (4F2) 3.0 TFSI quattro 2004 – 2011 2995 220 299
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 162 220
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 132 180
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 140 190
AUDI A6 C6 (4F2) 3.0 quattro 2004 – 2011 2976 160 218
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 140 190
AUDI A6 C6 (4F2) 3.2 FSI quattro 2004 – 2011 3123 183 249
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 154 210
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 140 190
AUDI A6 C6 (4F2) 3.0 2004 – 2011 2976 160 218
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 140 190
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 89 121
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 125 170
AUDI A6 C6 (4F2) RS6 quattro 2004 – 2011 4991 426 580
AUDI A6 C6 (4F2) 2.8 V6 2004 – 2011 2771 142 193
AUDI A6 C6 (4F2) 3.2 FSI 2004 – 2011 3197 195 265
AUDI A6 C6 (4F2) 2.4 2004 – 2011 2393 130 177
AUDI A6 C6 (4F2) 3.2 FSI 2004 – 2011 3123 188 255
AUDI A6 C6 (4F2) 3.2 FSI quattro 2004 – 2011 3123 188 255
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 103 140
AUDI A6 C6 (4F2) 4.2 quattro 2004 – 2011 4163 246 335
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 165 225
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 155 211
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 120 163
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 132 180
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 120 163
AUDI A6 C6 (4F2) 2.4 quattro 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 120 163
AUDI A6 C6 Avant (4F5) 4.2 FSI quattro 2004 – 2011 4163 257 350
AUDI A6 C6 Avant (4F5) 3.0 2004 – 2011 2976 160 218
AUDI A6 C6 Avant (4F5) 3.0 TFSI quattro 2004 – 2011 2995 213 290
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 176 240
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 162 220
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 140 190
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 162 220
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 140 190
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 140 190
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 125 170
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 140 190
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 132 180
AUDI A6 C6 Avant (4F5) 3.0 TFSI quattro 2004 – 2011 2995 220 299
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 103 140
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 120 163
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 165 225
AUDI A6 C6 Avant (4F5) 3.2 FSI 2004 – 2011 3123 188 255
AUDI A6 C6 Avant (4F5) 3.2 FSI quattro 2004 – 2011 3123 188 255
AUDI A6 C6 Avant (4F5) 4.2 quattro 2004 – 2011 4163 246 335
AUDI A6 C6 Avant (4F5) 2.4 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 2.4 quattro 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 155 211
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 89 121
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 132 180
AUDI A6 C6 Avant (4F5) 2.0 TFSI 2004 – 2011 1984 125 170
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 100 136
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 120 163
AUDI A6 C6 Avant (4F5) S6 quattro 2004 – 2011 5204 320 435
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 171 233
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 154 210
AUDI A6 C6 Avant (4F5) 3.0 quattro 2004 – 2011 2976 160 218
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 154 210
AUDI A6 C6 Avant (4F5) RS6 quattro 2004 – 2011 4991 426 580
