Brake Disc

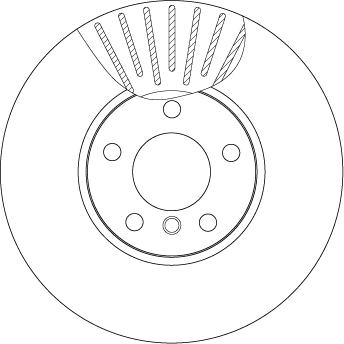

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4852S · SKU DF4852S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)29.9
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Height (mm)62
Machining High-carbon
Minimum thickness (mm)28.4
Number of Holes 5
Outer Diameter (mm)332
Surface Painted
Thread Size 16,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 29,9, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Height [mm] 62, Machining High-carbon, Minimum thickness [mm] 28,4, Number of Holes 5, Outer Diameter [mm] 332, Surface Painted, Thread Size 16,5
Fits: BMW

Interchangeable Part Numbers

A.B.S.17867 APECDSK2599 ATE24013002001 BENDIX562691BC BORG & BECKBBD4725 BOSCH0 986 479 624 BOSCH0 986 AB5 760 BOSCH0 986 AB5 903 Brake ENGINEERINGDI956591S BREMBO09992311 CAR1421490 CARHPD1490 DELPHIBG9061 FEBI BILSTEIN32264 FERODODDF1714 FERODODDF1714C FERODODDF1714C1 FIRST LINEFBD1810 FTE9071044 FTE9081041 FTE9081322 FTEBS7198HB HELLA8DD 355 117-731 HELLA8DD 355 122-892 HELLA8DD 355 129-291 JURID562691JC LEMFÖRDER35861 01 METELLI231300C METZGER25118V MEYLE315 521 0004/PD MEYLE3835210004PD NK201588 NK311588 OPTIMALBS-8348C OPTIMALBS-8348HC OPTIMALBS-8348 PAGID54608PRO PILENGAV715 REMSA6130710 ST-TEMPLIN0311012410 ST-TEMPLIN0311012415 SWAG20932264 TEXTAR92160800 TEXTAR92160803 TEXTAR92160805 TRISCAN812011182 TRISCAN812011182C TRUCKTEC AUTOMOTIVE0834146 TRUSTINGDF1337 VALEO197177 ZIMMERMANN150344720 ZIMMERMANN150344752

OE Numbers — BMW

34 11 6 771 985 34 11 6 793 245 34 11 6 868 939 6 771 985 6 793 245 6 868 939
MakeModelType / Engine YearsCCkWHP
BMW X5 (E70) xDrive 40 d 2006 – 2013 2993 225 306
BMW X5 (E70) 3.0 3.0d 2006 – 2013 2993 160 218
BMW X5 (E70) M 2006 – 2013 4395 414 563
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 194 264
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 172 234
BMW X5 (E70) xDrive 40 i 2006 – 2013 2979 225 306
BMW X5 (E70) xDrive 50 i 2006 – 2013 4395 298 405
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 155 211
BMW X5 (E70) M 50 d 2006 – 2013 2993 280 381
BMW X5 (E70) xDrive 35 i 2006 – 2013 2979 235 320
BMW X5 (E70) 3.0 3.0d 2006 – 2013 2993 155 211
BMW X5 (E70) M 2006 – 2013 4395 408 555
BMW X5 (E70) xDrive 35 d 2006 – 2013 2993 210 286
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 173 235
BMW X5 (E70) xDrive 48 i 2006 – 2013 4799 261 355
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 200 272
BMW X5 (E70) 3.0 sd 2006 – 2013 2993 210 286
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 180 245
BMW X5 (E70) xDrive 35 i 2006 – 2013 2979 225 306
BMW X5 (E70) xDrive 50 i 2006 – 2013 4395 300 408
BMW X5 (E70) 3.0 si 2006 – 2013 2996 200 272
BMW X5 (E70) 3.0 d 2006 – 2013 2993 173 235
BMW X5 (E70) 4.8 i xDrive 2006 – 2013 4799 261 355
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 160 218
BMW X5 (F15, F85) sDrive 35 i 2013 – 2018 2979 225 306
BMW X5 (F15, F85) M 2013 – 2018 4395 423 575
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 204 277
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 170 231
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 170 231
BMW X5 (F15, F85) xDrive 40e 2013 – 2018 1997 230 313
BMW X5 (F15, F85) xDrive 35 i 2013 – 2018 2979 240 326
BMW X5 (F15, F85) xDrive 40e 2013 – 2018 1997 205 279
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 4395 332 452
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 155 211
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 155 211
BMW X5 (F15, F85) xDrive 28 i 2013 – 2018 1997 180 245
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 3982 300 408
BMW X5 (F15, F85) xDrive 40 d 2013 – 2018 2993 230 313
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 160 218
BMW X5 (F15, F85) xDrive 35 i 2013 – 2018 2979 225 306
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 2993 160 218
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 183 249
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 4395 330 449
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 210 286
BMW X5 (F15, F85) M 50 d 2013 – 2018 2993 280 381
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 190 258
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 173 235
BMW X6 (E71, E72) ActiveHybrid 2007 – 2015 4395 357 485
BMW X6 (E71, E72) xDrive 40 d 2007 – 2015 2993 225 306
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 180 245
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 224 305
BMW X6 (E71, E72) M 2007 – 2015 4395 414 563
BMW X6 (E71, E72) xDrive 50 i 2007 – 2015 4395 300 408
BMW X6 (E71, E72) xDrive 35 d 2007 – 2015 2993 210 286
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 225 306
BMW X6 (E71, E72) M 2007 – 2015 4395 408 555
BMW X6 (E71, E72) xDrive 50 i 2007 – 2015 4395 330 449
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 240 326
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 235 320
BMW X6 (E71, E72) M 50 d 2007 – 2015 2993 280 381
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 155 211
BMW X6 (F16, F86) xDrive 28 i 2014 – 2019 1997 180 245
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 160 218
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 183 249
BMW X6 (F16, F86) M 2014 – 2019 4395 423 575
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 190 258
BMW X6 (F16, F86) xDrive 50 i 2014 – 2019 4395 330 449
BMW X6 (F16, F86) M 50 d 2014 – 2019 2993 280 381
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 155 211
BMW X6 (F16, F86) xDrive 50 i 2014 – 2019 3982 300 408
BMW X6 (F16, F86) xDrive 35 i 2014 – 2019 2979 225 306
BMW X6 (F16, F86) xDrive 40 d 2014 – 2019 2993 230 313
BMW X6 (F16, F86) sDrive 35 i 2014 – 2019 2979 225 306
BMW X6 (F16, F86) xDrive 35 i 2014 – 2019 2979 240 326
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 204 277
