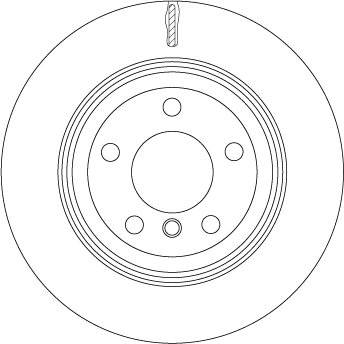

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4854S · SKU DF4854S-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)20
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Drum diameter (mm)185
Height (mm)78.6
Machining High-carbon
Minimum thickness (mm)18.4
Number of Holes 5
Outer Diameter (mm)320
Surface Painted
Thread Size 16,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 185, Height [mm] 78,6, Machining High-carbon, Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 320, Surface Painted, Thread Size 16,5
Fits: BMW

Interchangeable Part Numbers

A.B.S.17870 APECDSK2601 ATE24012002061 BENDIX562521BC BLUE PRINTADB114304 BORG & BECKBBD4726 BOSCH0 986 479 442 Brake ENGINEERINGDI956593 BREMBO09.9925.1X BREMBO09992511 CAR1421465 CARHPD1465 DBA AustraliaDBA2865 DELPHIBG4168 DELPHIBG4168C-18B1 FEBI BILSTEIN36386 FERODODDF1715 FERODODDF17151 FERODODDF1715C FERODODDF1715C-1-D FERODODDF1715C1 FERODODDF1715DSL-1-D FERODODDF1715DSR-1-D FIRST LINEFBD1812 FTE9071043 FTE9081029 FTE9082603 FTEBS7244 FTEBS7244HB HELLA8DD 355 114-001 HELLA8DD 355 114-002 HELLA8DD 355 122-071 HELLA8DD 355 128-761 Hi-QSD5223 JURID562521JC LEMFÖRDER35862 01 LPRB2054V LPRB2054VR METELLI231025C METZGER25120V MEYLE315 523 0004/PD MEYLE3155230024PD MGAD1714 NK201583 NK311583 OPTIMALBS-8278C PAGID54611PRO PILENGAV717 REMSA6128710 REMYRAD1529C ST-TEMPLIN0311012270 ST-TEMPLIN0311012275 SWAG20936386 TEXTAR92161103 TEXTAR92161105 TRISCAN812011183 TRISCAN812011183C TRUCKTEC AUTOMOTIVE0834147 TRUSTINGDF1398 VALEO197179 VALEO297179 ZIMMERMANN150345020 ZIMMERMANN150345052

OE Numbers — BMW

34 21 6 771 970 34 21 6 793 247 34 21 6 868 940 34 21 6 886 479 6 771 970 6 793 247 6 868 940 6 886 479
MakeModelType / Engine YearsCCkWHP
BMW X5 (E70) xDrive 40 d 2006 – 2013 2993 225 306
BMW X5 (E70) 3.0 3.0d 2006 – 2013 2993 160 218
BMW X5 (E70) M 2006 – 2013 4395 414 563
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 194 264
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 172 234
BMW X5 (E70) xDrive 40 i 2006 – 2013 2979 225 306
BMW X5 (E70) xDrive 50 i 2006 – 2013 4395 298 405
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 155 211
BMW X5 (E70) M 50 d 2006 – 2013 2993 280 381
BMW X5 (E70) xDrive 35 i 2006 – 2013 2979 235 320
BMW X5 (E70) 3.0 3.0d 2006 – 2013 2993 155 211
BMW X5 (E70) M 2006 – 2013 4395 408 555
BMW X5 (E70) xDrive 35 d 2006 – 2013 2993 210 286
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 173 235
BMW X5 (E70) xDrive 48 i 2006 – 2013 4799 261 355
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 200 272
BMW X5 (E70) 3.0 sd 2006 – 2013 2993 210 286
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 180 245
BMW X5 (E70) xDrive 35 i 2006 – 2013 2979 225 306
BMW X5 (E70) xDrive 50 i 2006 – 2013 4395 300 408
BMW X5 (E70) 3.0 si 2006 – 2013 2996 200 272
BMW X5 (E70) 3.0 d 2006 – 2013 2993 173 235
BMW X5 (E70) 4.8 i xDrive 2006 – 2013 4799 261 355
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 160 218
BMW X5 (F15, F85) sDrive 35 i 2013 – 2018 2979 225 306
BMW X5 (F15, F85) M 2013 – 2018 4395 423 575
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 204 277
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 170 231
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 170 231
BMW X5 (F15, F85) xDrive 40e 2013 – 2018 1997 230 313
BMW X5 (F15, F85) xDrive 35 i 2013 – 2018 2979 240 326
BMW X5 (F15, F85) xDrive 40e 2013 – 2018 1997 205 279
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 4395 332 452
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 155 211
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 155 211
BMW X5 (F15, F85) xDrive 28 i 2013 – 2018 1997 180 245
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 3982 300 408
BMW X5 (F15, F85) xDrive 40 d 2013 – 2018 2993 230 313
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 160 218
BMW X5 (F15, F85) xDrive 35 i 2013 – 2018 2979 225 306
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 2993 160 218
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 183 249
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 4395 330 449
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 210 286
BMW X5 (F15, F85) M 50 d 2013 – 2018 2993 280 381
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 190 258
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 173 235
BMW X6 (E71, E72) ActiveHybrid 2007 – 2015 4395 357 485
BMW X6 (E71, E72) xDrive 40 d 2007 – 2015 2993 225 306
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 180 245
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 224 305
BMW X6 (E71, E72) M 2007 – 2015 4395 414 563
BMW X6 (E71, E72) xDrive 50 i 2007 – 2015 4395 300 408
BMW X6 (E71, E72) xDrive 35 d 2007 – 2015 2993 210 286
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 225 306
BMW X6 (E71, E72) M 2007 – 2015 4395 408 555
BMW X6 (E71, E72) xDrive 50 i 2007 – 2015 4395 330 449
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 240 326
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 235 320
BMW X6 (E71, E72) M 50 d 2007 – 2015 2993 280 381
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 155 211
BMW X6 (F16, F86) xDrive 28 i 2014 – 2019 1997 180 245
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 160 218
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 183 249
BMW X6 (F16, F86) M 2014 – 2019 4395 423 575
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 190 258
BMW X6 (F16, F86) xDrive 50 i 2014 – 2019 4395 330 449
BMW X6 (F16, F86) M 50 d 2014 – 2019 2993 280 381
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 155 211
BMW X6 (F16, F86) xDrive 50 i 2014 – 2019 3982 300 408
BMW X6 (F16, F86) xDrive 35 i 2014 – 2019 2979 225 306
BMW X6 (F16, F86) xDrive 40 d 2014 – 2019 2993 230 313
BMW X6 (F16, F86) sDrive 35 i 2014 – 2019 2979 225 306
BMW X6 (F16, F86) xDrive 35 i 2014 – 2019 2979 240 326
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 204 277
