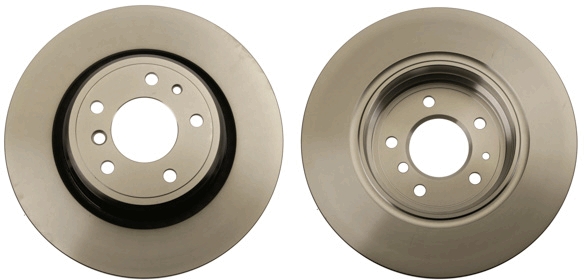

Brake Disc

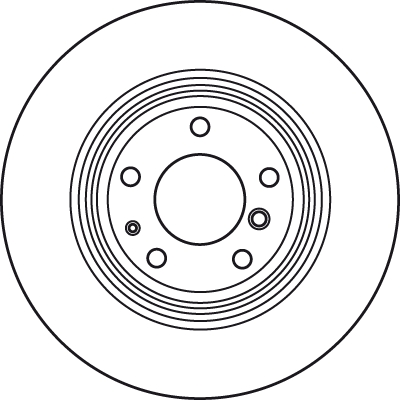

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4891 · SKU DF4891-TRW
Rear Axle
₱29,800.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)20
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Drum diameter (mm)180
Height (mm)61
Minimum thickness (mm)18.4
Number of Holes 5
Outer Diameter (mm)328
Surface Painted
Thread Size 14,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 180, Height [mm] 61, Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 328, Surface Painted, Thread Size 14,5
Fits: ALPINA, BMW

Supplier Cross-References

DELPHIBG3213 TEXTAR92074904 ATE24012001821 HELLA PAGID8DD355104571 BREMBO09B44210 TRWDF4891

Interchangeable Part Numbers

BENDIX562092B BENDIX562092BC BORG & BECKBBD6077S Brake ENGINEERINGDI955545 CAR142067 CARHPD067 FIRST LINEFBD827 FTE9071300 FTE9081244 FTEBS4786 GIRLING6048912 HELLA 8DD 355104-571 HELLA 8DD 355122-102 HELLA8DD355122102 JURID562092J JURID562092JC LPRB2030V MEYLE 315 5230003/PD MEYLE3155230003PD MEYLE3155230003 MINTEXMDC1259 NK201562 NK311562 PAGID50435 PEX140810 PILENGAV106 QUINTON HAZELLBDC4786 ROULUNDS RUBBERWD00494 sbs1815201562 TEXTAR92074900 TEXTAR92074903 TEXTAR92209810 TEXTAR98200074901 TRISCAN812011155 TRISCAN812011155C ZIMMERMANN150128100 ZIMMERMANN150128152 ZIMMERMANN150345370

OE Numbers — ALPINA 34 21 6 751

194

OE Numbers — ALPINA

34216751194

OE Numbers — BMW 1 160

233

OE Numbers — BMW

1160233 34211160233 34216767062 34216767064 6751194 6767062 6767064

OE Numbers — BMW 34 21 6 767

062 064
MakeModelType / Engine YearsCCkWHP
BMW 7 (E38) 735 i, iL 1994 – 2001 3498 173 235
BMW 7 (E38) 750 i, iL 1994 – 2001 5379 243 330
BMW 7 (E38) 735 i, iL 1994 – 2001 3498 175 238
BMW 7 (E38) 730 d 1994 – 2001 2926 142 193
BMW 7 (E38) 740 d 1994 – 2001 3901 180 245
BMW 7 (E38) 730 d 1994 – 2001 2926 135 184
BMW 7 (E38) 725 tds 1994 – 2001 2497 105 143
BMW 7 (E38) 728 i, iL 1994 – 2001 2793 142 193
BMW 7 (E38) 740 i, iL 1994 – 2001 4398 210 286
BMW 7 (E38) 750 i, iL 1994 – 2001 5379 240 326
BMW 7 (E38) 740 i, iL 1994 – 2001 3982 210 286
BMW 7 (E38) 730 i, iL 1994 – 2001 2997 160 218
BMW 7 (E38) 730 i, iL 1994 – 2001 2997 155 211
BMW 8 (E31) 840 i 1990 – 1999 3982 210 286
BMW 8 (E31) 850 i, Ci 1990 – 1999 4988 220 300
BMW 8 (E31) 840 Ci 1990 – 1999 4398 210 286
BMW 8 (E31) 850 CSi 1990 – 1999 5576 280 380
BMW 8 (E31) 850 Ci 1990 – 1999 5379 240 326
BMW 8 (E31) 850 CSi 1990 – 1999 5576 277 377
BMW Z8 Roadster (E52) 4.9 2000 – 2003 4941 294 400
