Brake Disc

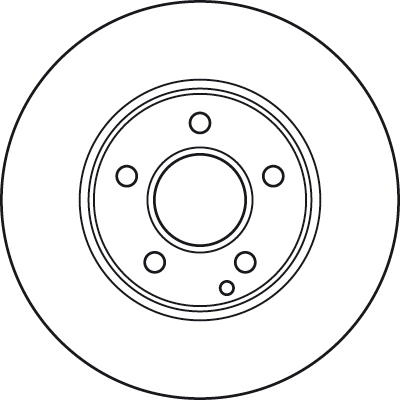

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF4947 · SKU DF4947-TRW
Front Axle
₱25,600.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)67
Colour black
Height (mm)64.5
Machining High-carbon
Minimum thickness (mm)22.4
Number of Holes 5
Outer Diameter (mm)288
Surface Painted
Test Mark E190R-02C0176/0493
Thread Size 15,3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 67, Colour black, Height [mm] 64,5, Machining High-carbon, Minimum thickness [mm] 22,4, Number of Holes 5, Outer Diameter [mm] 288, Surface Painted, Test Mark E190R-02C0176/0493, Thread Size 15,3
Fits: MERCEDES-BENZ

Supplier Cross-References

TEXTAR92159600 ZIMMERMANN400365220 FERODODDF1688 ATE24032501791 BREMBO09A73610 TRWDF4947

Interchangeable Part Numbers

ATE24012501791 BENDIX562637BC BORG & BECKBBD4721 BOSCH 0 986 479406 BOSCH0986479406 BOSCH 0 986 479S83 BOSCH0986479S83 Brake ENGINEERINGDI956668 BREMBO09A73611 CAR1421361 DELPHIBG4227 DELPHIBG4227C FEBI BILSTEIN30556 FERODODDF16881 FERODODDF1688C FIRST LINEFBD1805 FTEBS7196 FTEBS7196HB HELLA 8DD 355113-851 HELLA8DD355113851 HELLA 8DD 355113-861 HELLA8DD355113861 HELLA 8DD 355123-711 HELLA8DD355123711 HELLA 8DD 355128-701 HELLA8DD355128701 Hi-QSD5429 JURID562637JC LEMFÖRDER 3190501 LEMFÖRDER3190501 LPRM2063V LPRM2063VR MAGNETI MARELLI360704022600 METELLI230934C METZGER6106610 MEYLE 015 5212098/PD MEYLE0155212098PD MEYLE0155212098 MEYLE0835212098PD MINTEXMDC2057 NK2033106 NK3133106 OPTIMALBS-8578C OPTIMALBS-8578 PAGID54596 PAGID54596PRO PILENGAV945 REMYRAD1505C SWAG10930556 TEXTAR92159603 TRISCAN812023191 TRISCAN812023191C TRUCKTEC AUTOMOTIVE0235291 TRUSTINGDF1232 VAICOV30-80010 VALEO197203 VALEO197316 ZIMMERMANN400365250 ZIMMERMANN400365252

OE Numbers — MERCEDES-BENZ 000 421 19

12

OE Numbers — MERCEDES-BENZ

0004211912 000421191207 2044210012 A0004211912 A2044210012 A000421191207
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ C-CLASS (W204) C 350 CDI (204.025) 2007 – 2015 2987 170 231
MERCEDES-BENZ C-CLASS (W204) C 350 4-matic (204.087) 2007 – 2015 3498 200 272
MERCEDES-BENZ C-CLASS (W204) C 320 CDI 4-matic (204.089) 2007 – 2015 2987 165 224
MERCEDES-BENZ C-CLASS (W204) C 63 AMG (204.077) 2007 – 2015 6208 336 457
MERCEDES-BENZ C-CLASS (W204) C 180 Kompressor (204.044, 204.045) 2007 – 2015 1597 115 156
MERCEDES-BENZ C-CLASS (W204) C 350 CGI (204.065) 2007 – 2015 3498 215 292
MERCEDES-BENZ C-CLASS (W204) C 250 CDI (204.003) 2007 – 2015 2143 150 204
MERCEDES-BENZ C-CLASS (W204) C 220 CDI (204.002) 2007 – 2015 2143 125 170
MERCEDES-BENZ C-CLASS (W204) C 350 CDI (204.022) 2007 – 2015 2987 165 224
MERCEDES-BENZ C-CLASS (W204) C 350 CDI 4-matic (204.089) 2007 – 2015 2987 165 224
MERCEDES-BENZ C-CLASS (W204) C 250 CGI (204.047) 2007 – 2015 1796 150 204
MERCEDES-BENZ C-CLASS (W204) C 300 (204.054) 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 300 4-matic (204.081) 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 180 CDI (204.000) 2007 – 2015 2143 88 120
MERCEDES-BENZ C-CLASS (W204) C 350 CDI 4-matic (204.092) 2007 – 2015 2987 170 231
MERCEDES-BENZ C-CLASS (W204) C 180 CGI (204.049) 2007 – 2015 1796 115 156
MERCEDES-BENZ C-CLASS (W204) C 200 CGI (204.048) 2007 – 2015 1796 135 184
MERCEDES-BENZ C-CLASS (W204) C 220 CDI (204.008) 2007 – 2015 2148 120 163
MERCEDES-BENZ C-CLASS (W204) C 63 AMG (204.077) 2007 – 2015 6208 373 507
MERCEDES-BENZ C-CLASS (W204) C 63 AMG DR 520 2007 – 2015 6208 383 520
MERCEDES-BENZ C-CLASS (W204) C 220 CDI 4-matic (204.084) 2007 – 2015 2143 125 170
MERCEDES-BENZ C-CLASS (W204) C 220 CDI (204.002) 2007 – 2015 2143 120 163
MERCEDES-BENZ C-CLASS (W204) C 180 CGI (204.031) 2007 – 2015 1595 115 156
MERCEDES-BENZ C-CLASS (W204) C 300 (204.055) 2007 – 2015 3498 185 252
MERCEDES-BENZ C-CLASS (W204) C 300 4-matic (204.080) 2007 – 2015 3498 185 252
MERCEDES-BENZ C-CLASS (W204) C 300 Flexfuel 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 230 4-matic (204.085) 2007 – 2015 2496 150 204
MERCEDES-BENZ C-CLASS (W204) C 350 CDI (204.023) 2007 – 2015 2987 195 265
MERCEDES-BENZ C-CLASS (W204) C 200 (204.048) 2007 – 2015 1796 137 186
MERCEDES-BENZ C-CLASS (W204) C 350 4-matic (204.088) 2007 – 2015 3498 225 306
MERCEDES-BENZ C-CLASS (W204) C 63 AMG (204.077) 2007 – 2015 6208 358 487
MERCEDES-BENZ C-CLASS (W204) C 200 CDI (204.007, 204.006) 2007 – 2015 2148 100 136
MERCEDES-BENZ C-CLASS (W204) C 220 CDI (204.008) 2007 – 2015 2148 125 170
MERCEDES-BENZ C-CLASS (W204) C 320 CDI (204.022) 2007 – 2015 2987 165 224
MERCEDES-BENZ C-CLASS (W204) C 180 Kompressor (204.046) 2007 – 2015 1796 115 156
MERCEDES-BENZ C-CLASS (W204) C 350 (204.057) 2007 – 2015 3498 225 306
MERCEDES-BENZ C-CLASS (W204) C 200 Kompressor (204.041) 2007 – 2015 1796 135 184
MERCEDES-BENZ C-CLASS (W204) C 230 (204.052) 2007 – 2015 2496 150 204
MERCEDES-BENZ C-CLASS (W204) C 300 CDI 4-matic (204.092) 2007 – 2015 2987 170 231
MERCEDES-BENZ C-CLASS (W204) C 250 CDI 4-matic (204.082) 2007 – 2015 2143 150 204
MERCEDES-BENZ C-CLASS (W204) C 200 CDI (204.001) 2007 – 2015 2143 100 136
MERCEDES-BENZ C-CLASS (W204) C 280 (204.054) 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 280 4-matic (204.081) 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 350 (204.056) 2007 – 2015 3498 200 272
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI 4-matic (204.289) 2007 – 2014 2987 165 224
MERCEDES-BENZ C-CLASS T-Model (S204) C 300 (204.254) 2007 – 2014 2996 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI (204.225) 2007 – 2014 2987 165 224
MERCEDES-BENZ C-CLASS T-Model (S204) C 300 CDI 4-matic (204.292) 2007 – 2014 2987 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 200 CGI (204.248) 2007 – 2014 1796 135 184
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 CGI (204.249) 2007 – 2014 1796 115 156
MERCEDES-BENZ C-CLASS T-Model (S204) C 63 AMG 2007 – 2014 6208 373 507
MERCEDES-BENZ C-CLASS T-Model (S204) C 200 CDI (204.201) 2007 – 2014 2143 100 136
MERCEDES-BENZ C-CLASS T-Model (S204) C 63 AMG 2007 – 2014 6208 383 521
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 (204.252) 2007 – 2014 2496 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 CGI (204.247) 2007 – 2014 1796 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI 4-matic (204.284) 2007 – 2014 2143 125 170
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 2007 – 2014 1991 155 211
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 (204.231) 2007 – 2014 1595 115 156
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI (204.202) 2007 – 2014 2143 120 163
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 Kompressor (204.245) 2007 – 2014 1597 115 156
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 Kompressor (204.246) 2007 – 2014 1796 115 156
MERCEDES-BENZ C-CLASS T-Model (S204) C 200 Kompressor (204.241) 2007 – 2014 1796 135 184
MERCEDES-BENZ C-CLASS T-Model (S204) C 230 (204.252) 2007 – 2014 2496 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 280 (204.254) 2007 – 2014 2996 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 (204.256) 2007 – 2014 3498 200 272
MERCEDES-BENZ C-CLASS T-Model (S204) C 200 CDI (204.207) 2007 – 2014 2148 100 136
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI (204.208) 2007 – 2014 2148 125 170
MERCEDES-BENZ C-CLASS T-Model (S204) C 320 CDI (204.222) 2007 – 2014 2987 165 224
MERCEDES-BENZ C-CLASS T-Model (S204) C 320 CDI 4-matic (204.289) 2007 – 2014 2987 165 224
MERCEDES-BENZ C-CLASS T-Model (S204) C 63 AMG (204.277) 2007 – 2014 6208 336 457
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI (204.208) 2007 – 2014 2148 120 163
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI (204.202) 2007 – 2014 2143 125 170
MERCEDES-BENZ C-CLASS T-Model (S204) C 63 AMG (204.277) 2007 – 2014 6208 358 487
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CGI (204.257) 2007 – 2014 3498 225 306
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI (204.223) 2007 – 2014 2987 195 265
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI (204.225) 2007 – 2014 2987 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI 4-matic (204.292) 2007 – 2014 2987 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 CDI (204.200) 2007 – 2014 2143 88 120
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 CDI (204.203) 2007 – 2014 2143 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 CDI 4-matic (204.282) 2007 – 2014 2143 150 204
