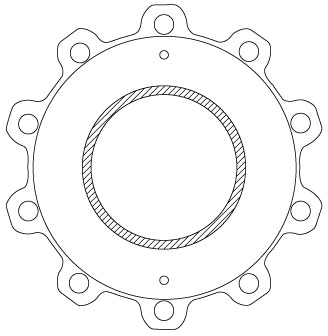

Specifications
| Bolt Hole Circle Ø (mm) | 335 |
| Bore Diameter (mm) | 23 |
| Brake Disc Thickness (mm) | 45 |
| Brake Disc Type Vented | |
| Height (mm) | 160 |
| Minimum thickness (mm) | 37 |
| Number of Holes 10 | |
| Outer Diameter (mm) | 377 |
| Test Mark E1190R02C01009/22779 | |
| Test Mark E1190R02C01434/38116 | |
Bolt Hole Circle Ø [mm] 335, Bore Diameter [mm] 23, Brake Disc Thickness [mm] 45, Brake Disc Type Vented, Height [mm] 160, Minimum thickness [mm] 37, Number of Holes 10, Outer Diameter [mm] 377, Test Mark E1190R02C01009/22779, Test Mark E1190R02C01434/38116
