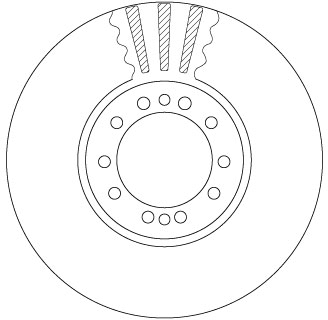

Specifications
| Bolt Hole Circle Ø (mm) | 165 |
| Bore Diameter (mm) | 17.1 |
| Brake Disc Thickness (mm) | 45 |
| Brake Disc Type Vented | |
| Fitting Position Front Axle | |
| Height (mm) | 96.7 |
| Minimum thickness (mm) | 41 |
| Number of Holes 10 | |
| Outer Diameter (mm) | 434 |
| Test Mark E1190R02C01047/26551 | |
Bolt Hole Circle Ø [mm] 165, Bore Diameter [mm] 17,1, Brake Disc Thickness [mm] 45, Brake Disc Type Vented, Fitting Position Front Axle, Height [mm] 96,7, Minimum thickness [mm] 41, Number of Holes 10, Outer Diameter [mm] 434, Test Mark E1190R02C01047/26551
