Brake Disc

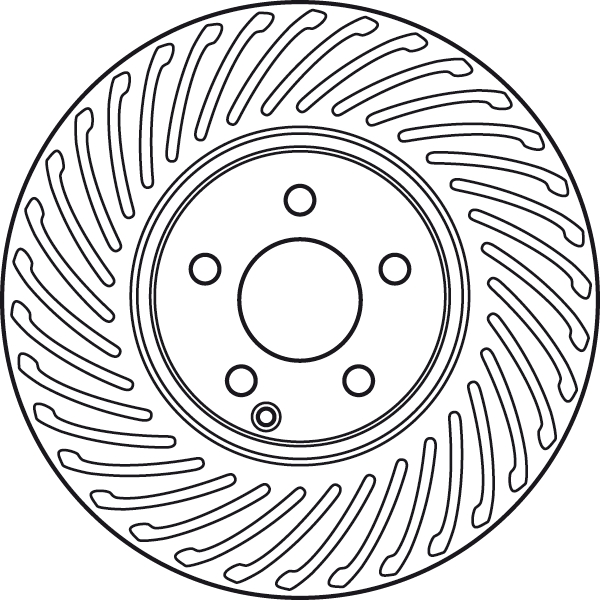

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6012S · SKU DF6012S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)32
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)47.5
Minimum thickness (mm)29.4
Number of Holes 5
Outer Diameter (mm)330
Test Mark E190R-02C0176/0052
Thread Size 15,0
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 32, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 47,5, Minimum thickness [mm] 29,4, Number of Holes 5, Outer Diameter [mm] 330, Test Mark E190R-02C0176/0052, Thread Size 15,0
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

ATE24013201541 ATE24113201541 BENDIX562728BC BLUE PRINTADU1743103 BORG & BECKBBD6083S BREMBO09.A828.21 CAR1421246 CARHPD1246 DELPHIBG9210C FEBI BILSTEIN43952 FERODODDF1908C FERODODDF1908C1 HELLA8DD 355 120-961 JURID562728JC OPTIMALBS-8996C OPTIMALBS-8996HC OPTIMALBS-8996 PILENGAV929 REMSA6140510 SWAG10 94 3952 TEXTAR92198805 TRISCAN8120231009C VALEO197093 ZIMMERMANN400367420 ZIMMERMANN400367452

OE Numbers — MERCEDES-BENZ

211 421 11 12 211421111264 A2114211112 A211421111264
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ E-CLASS (W211) E 350 CGI (211.057) 2002 – 2009 3498 215 292
MERCEDES-BENZ E-CLASS (W211) E320 CDI (211.022) 2002 – 2009 2987 156 212
MERCEDES-BENZ E-CLASS (W211) E 500 (211.070) 2002 – 2009 4966 215 292
MERCEDES-BENZ E-CLASS (W211) E 280 CDI (211.023) 2002 – 2009 3222 130 177
MERCEDES-BENZ E-CLASS (W211) E 280 (211.054) 2002 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS (W211) E 350 (211.056) 2002 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS (W211) E 280 CDI (211.020) 2002 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS (W211) E 320 CDI (211.022) 2002 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS (W211) E 350 4-matic (211.087) 2002 – 2009 3498 205 279
MERCEDES-BENZ E-CLASS (W211) E 230 (211.052) 2002 – 2009 2496 150 204
MERCEDES-BENZ E-CLASS (W211) E 280 CDI 4-matic (211.084) 2002 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS (W211) E 300 BlueTEC (211.024) 2002 – 2009 2987 155 211
MERCEDES-BENZ E-CLASS (W211) E 200 NGT (211.042) 2002 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS (W211) E 420 CDI (211.029) 2002 – 2009 3996 231 314
MERCEDES-BENZ E-CLASS (W211) E 280 4-matic (211.092) 2002 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS (W211) E 350 4-matic (211.087) 2002 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.006) 2002 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS (W211) E 320 CDI 4-matic (211.089) 2002 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.007) 2002 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.008) 2002 – 2009 2148 125 170
MERCEDES-BENZ E-CLASS (W211) E 200 Kompressor (211.041) 2002 – 2009 1796 135 184
MERCEDES-BENZ E-CLASS (W211) E 63 AMG (211.077) 2002 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS (W211) E 500 (211.072) 2002 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS (W211) E 500 4-matic (211.090) 2002 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS (W211) E 55 AMG Kompressor (211.076) 2002 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS (W211) E 220 CDI 2002 – 2009 2149 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 (211.065) 2002 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS (W211) E 500 (211.070) 2002 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS (W211) E 240 (211.061) 2002 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.006) 2002 – 2009 2148 110 150
MERCEDES-BENZ E-CLASS (W211) E 270 CDI (211.016) 2002 – 2009 2685 130 177
MERCEDES-BENZ E-CLASS (W211) E 240 (211.061) 2002 – 2009 2597 120 163
MERCEDES-BENZ E-CLASS (W211) E 240 4-matic (211.080) 2002 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS (W211) E 320 4-matic (211.082) 2002 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.004) 2002 – 2009 2148 75 102
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.004) 2002 – 2009 2148 90 122
MERCEDES-BENZ E-CLASS (W211) E 270 CDI (211.016) 2002 – 2009 2685 120 163
MERCEDES-BENZ E-CLASS (W211) E 200 Kompressor (211.042) 2002 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 CDI (211.026) 2002 – 2009 3222 150 204
MERCEDES-BENZ E-CLASS (W211) E 63 AMG (211.077) 2002 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS (W211) E 320 BlueTEC (211.022) 2002 – 2009 2987 156 212
MERCEDES-BENZ E-CLASS (W211) E 400 CDI (211.028) 2002 – 2009 3996 191 260
MERCEDES-BENZ E-CLASS (W211) E 500 4-matic (211.083) 2002 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 CDI (211.207) 2003 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS T-Model (S211) 350 CGI (211.257) 2003 – 2009 3498 215 292
MERCEDES-BENZ E-CLASS T-Model (S211) E 55 T AMG Kompressor 2003 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.222) 2003 – 2009 2987 155 211
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 CDI (211.206) 2003 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI 2003 – 2009 2148 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) 3.5 4-matic 2003 – 2009 3498 205 279
MERCEDES-BENZ E-CLASS T-Model (S211) E 63 AMG (211.277) 2003 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T (211.261) 2003 – 2009 2597 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 230 T (211.252) 2003 – 2009 2496 150 204
MERCEDES-BENZ E-CLASS T-Model (S211) E 270 T CDI (211.216) 2003 – 2009 2685 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI (211.223) 2003 – 2009 3222 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T (211.261) 2003 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T (211.265) 2003 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 T Kompressor (211.242) 2003 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI (211.206) 2003 – 2009 2148 110 150
MERCEDES-BENZ E-CLASS T-Model (S211) E 270 T CDI (211.216) 2003 – 2009 2685 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.226) 2003 – 2009 3222 150 204
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T 4-matic (211.280) 2003 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T 4-matic (211.282) 2003 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 55 T AMG Kompressor (211.276) 2003 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T (211.270) 2003 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T 4-matic (211.283) 2003 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T 4-matic (211.290) 2003 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.222) 2003 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI (211.220) 2003 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T (211.254) 2003 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS T-Model (S211) E 350 T (211.256) 2003 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI 4-matic (211.284) 2003 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T 4-matic (211.292) 2003 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI 4-matic (211.289) 2003 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 350 T 4-matic (211.287) 2003 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI (211.208) 2003 – 2009 2148 125 170
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 Kompressor (211.241) 2003 – 2009 1796 135 184
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T (211.272) 2003 – 2009 5461 285 388
