Brake Disc

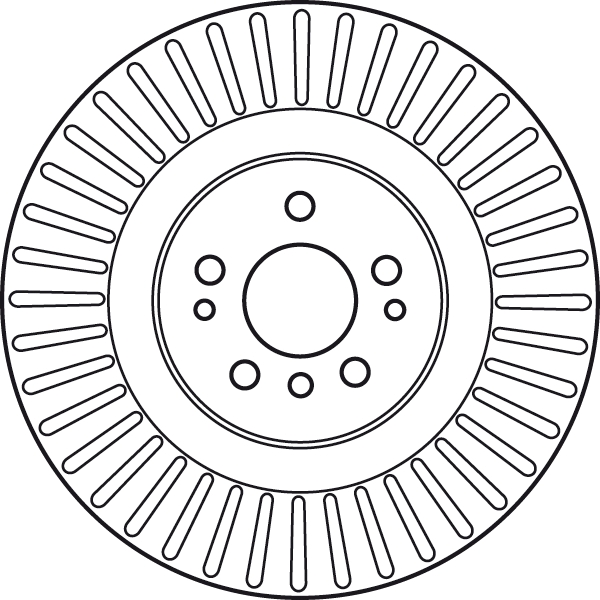

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6013S · SKU DF6013S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)32
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)54.5
Minimum thickness (mm)29.4
Number of Holes 5
Outer Diameter (mm)350
Test Mark E1 90R-02 C0176/0722
Thread Size 15,2
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 32, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 54,5, Minimum thickness [mm] 29,4, Number of Holes 5, Outer Diameter [mm] 350, Test Mark E1 90R-02 C0176/0722, Thread Size 15,2
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.09.R103.11 A.B.S.17791 A.P. 25065V A.P.25065V ATE24013201571 ATE24113201571 BLUE PRINTADU174383 BORG & BECKBBD5790S BOSCH 0 986 479329 BOSCH0986479329 Brake ENGINEERINGDI956424S CAR1421270 CARHPD1270 DBA AustraliaDBA2254 DELPHIBG9013 FEBI BILSTEIN24745 FERODODDF1532 FERODODDF15321 FERODODDF1532C FERODODDF1532C-1-D FERODODDF1532C1 FREMAXBD-3506 FTE9071137 FTE9081108 FTEBS7294 FTEBS7294B HELLA 8DD 355113-181 HELLA8DD355113181 HELLA 8DD 355113-191 HELLA8DD355113191 HELLA 8DD 355113-192 HELLA8DD355113192 HELLA 8DD 355124-451 HELLA8DD355124451 HELLA 8DD 355128-591 HELLA8DD355128591 LEMFÖRDER 3586701 LEMFÖRDER3586701 LPRM2038V LPRM2038VR METELLI230963C METZGER6110635 MEYLE 015 5212096/PD MEYLE0155212096PD MEYLE0155212096 MEYLE0835212096PD MINTEXMDC2067 NK203393 NK313393 NK343393 OPEN PARTSBDR2294.20 OPTIMALBS-8080HC OPTIMALBS-8080 PAGID54507 PAGID54507PRO PILENGAV930 QUINTON HAZELLBDC5625 REMSA6103010 REMYRAD1770C sbs1815203393 sbs1815313393 ST-TEMPLIN0311020920 ST-TEMPLIN0311020925 SWAG10924745 TEXTAR92150700 TEXTAR92150703 TEXTAR92150705 TEXTAR98200150701 TRISCAN8120231002 TRISCAN8120231002C TRUCKTEC AUTOMOTIVE0235223 TRUSTINGDF1042 VAICOV30-80014 VALEO197667 ZIMMERMANN400364920 ZIMMERMANN400364952

OE Numbers — MERCEDES-BENZ 164 421 05

12

OE Numbers — MERCEDES-BENZ

1644210512 1644211412 A1644210512 A1644211412
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) 2006 – 2012 2987 155 211
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic (164.823) 2006 – 2012 2987 195 265
MERCEDES-BENZ GL-CLASS (X164) GL 450 CDI 4-matic (164.828) 2006 – 2012 3996 225 306
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic (164.822) 2006 – 2012 2987 165 224
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI 4-matic 2006 – 2012 2987 160 218
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic 2006 – 2012 2987 170 231
MERCEDES-BENZ GL-CLASS (X164) GL 450 4-matic (164.871) 2006 – 2012 4663 250 340
MERCEDES-BENZ GL-CLASS (X164) GL 500 4-matic (164.886) 2006 – 2012 5461 285 388
MERCEDES-BENZ GL-CLASS (X164) GL 420 CDI 4-matic (164.828) 2006 – 2012 3996 225 306
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI 4-matic (164.822) 2006 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic 2005 – 2012 2987 160 218
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 170 231
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.172) 2005 – 2012 5461 285 388
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 157 214
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 190 258
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 218 296
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.121) 2005 – 2012 2987 150 204
MERCEDES-BENZ M-CLASS (W164) ML 450 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 300 4-matic (164.182) 2005 – 2012 2996 170 231
MERCEDES-BENZ M-CLASS (W164) ML 420 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 350 (164.156) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 280 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 225 306
MERCEDES-BENZ M-CLASS (W164) ML 350 4-matic (164.186) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 450 Hybrid 4-matic (164.195) 2005 – 2012 3498 250 340
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 160 218
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 400 4-matic (251.166) 2005 – 2017 2996 245 333
MERCEDES-BENZ R-CLASS (W251, V251) R 320 4-matic (251.163) 2005 – 2017 2996 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.154) 2005 – 2017 2996 180 245
MERCEDES-BENZ R-CLASS (W251, V251) R 300 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.023, 251.123) 2005 – 2017 2987 195 265
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.072, 251.172) 2005 – 2017 5461 285 388
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CGI 4-matic (251.057, 251.157) 2005 – 2017 3498 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 350 4-matic (251.065, 251.165) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.075, 251.175) 2005 – 2017 4966 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 280 (251.054, 251.154) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 350 (251.056, 251.156) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic 2005 – 2017 4966 218 296
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI (251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 280 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI (251.021, 251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.124, 251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.054, 251.154) 2005 – 2017 2996 170 231
