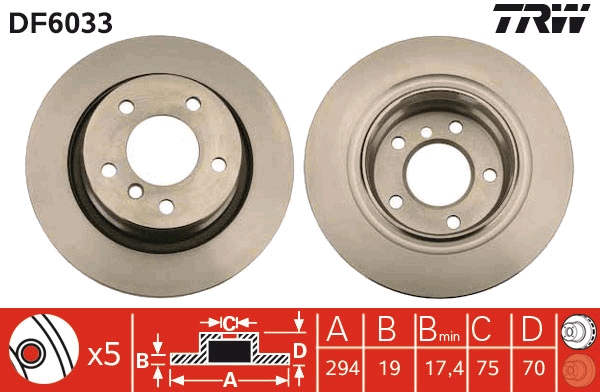

Brake Disc

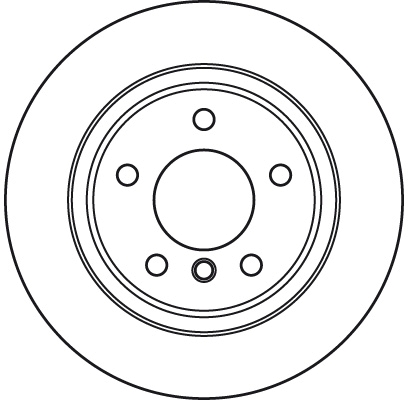

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6033 · SKU DF6033-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)19
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Drum diameter (mm)160
Height (mm)74.6
Minimum thickness (mm)17.4
Number of Holes 5
Outer Diameter (mm)294
Surface Painted
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 19, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 160, Height [mm] 74,6, Minimum thickness [mm] 17,4, Number of Holes 5, Outer Diameter [mm] 294, Surface Painted
Fits: BMW

Interchangeable Part Numbers

A.B.S.17802 A.B.S.17802OE A.B.S.17802S ATE24011901121 BORG & BECKBBD4184 BORG & BECKBBD4619 BOSCH0 986 479 670 BOSCH F026 A06 381 BOSCHF026A06381 BREMBO09986980 BREMBO09986981 CAR1421194 CARHPD1194 CIFAM800950C DELPHIBG3947 FEBI BILSTEIN28165 FERODODDF1285 FERODODDF12851 FIRST LINEFBD1692 fri.tech.DF552 FTE9072536 FTE9082100 FTEBS7225HB HELLA8DD 355 112-651 HELLA8DD 355 112-661 HELLA8DD 355 112-662 HELLA8DD 355 128-511 LPRB2028V METELLI230950C MEYLE315 523 0014/PD MEYLE3155230028PD MINTEXMDC1815 PAGID54461 PAGID54461PRO PEX140891 PILENGAV107 QUINTON HAZELLBDC5147 REMSA6114510 REMYRAD2126C ST-TEMPLIN0311012000 ST-TEMPLIN0311012005 SWAG20928165 TEXTAR92146100 TEXTAR92146103 TEXTAR92146105 TEXTAR98200146101 TRISCAN812011179 TRUCKTEC AUTOMOTIVE0834051 VAICOV20-80067 ZIMMERMANN150343620

OE Numbers — BMW

34 21 6 754 137 34 21 6 766 219 34 21 6 794 303 6 754 137 6 766 219 6 794 303
MakeModelType / Engine YearsCCkWHP
BMW Z4 Coupe (E86) M 2006 – 2009 3246 235 320
BMW Z4 Coupe (E86) 3.0 si 2006 – 2009 2996 190 258
BMW Z4 Coupe (E86) 2.5 i 2006 – 2009 2494 141 192
BMW Z4 Coupe (E86) 3.0 si 2006 – 2009 2996 160 218
BMW Z4 Coupe (E86) M 2006 – 2009 3246 252 343
BMW Z4 Coupe (E86) 3.0 si 2006 – 2009 2996 195 265
BMW Z4 Roadster (E85) 2.0 i 2002 – 2009 1995 110 150
BMW Z4 Roadster (E85) 2.5 i 2002 – 2009 2497 130 177
BMW Z4 Roadster (E85) 2.5 si 2002 – 2009 2497 160 218
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 195 265
BMW Z4 Roadster (E85) 2.2 i 2002 – 2009 2171 125 170
BMW Z4 Roadster (E85) M 2002 – 2009 3246 252 343
BMW Z4 Roadster (E85) 2.5 i 2002 – 2009 2494 141 192
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 160 218
BMW Z4 Roadster (E85) 3.0 i 2002 – 2009 2979 170 231
BMW Z4 Roadster (E85) 3.2 2002 – 2009 3246 235 320
BMW Z4 Roadster (E85) 2.5 si 2002 – 2009 2497 155 211
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 190 258
